SS-10-16 Series

Catalog

ROTARY SWITCH, 1P, 6 POS, 0.1A, 5VDC ROHS COMPLIANT: YES

Part	Termination Style	Body Material	Contact Finish	Mounting Type	Contact Material	Current Rating (Amps)	Voltage Rating	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Pitch [x]	Pitch	Pitch [x]	Length	Length	Actuator Level	Actuator Type	Electrical Life	Number of Positions	Height Above Board

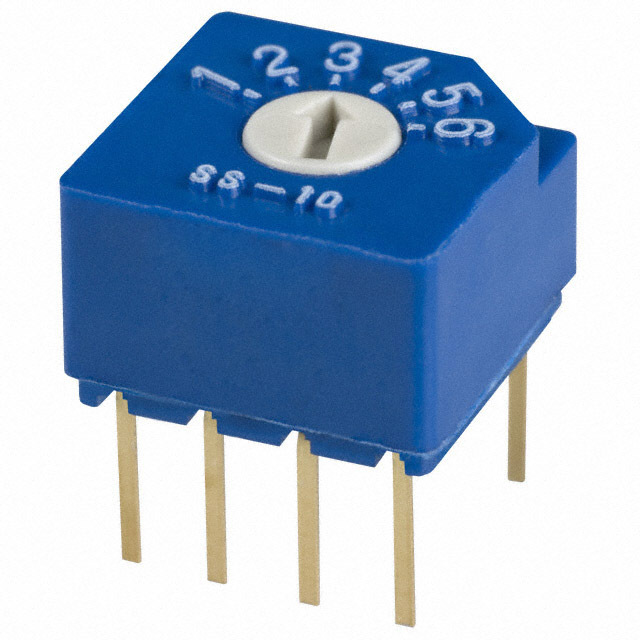

Nidec Components Corporation SS-10-16SP-AE	PC Pin	Polybutylene Terephthalate (PBT)	Gold	Through Hole	Copper Alloy	100 mA	5 V	SP6T	70 °C	-25 °C	0.275 in	6.99 mm	0.1 in	Full	2.54 mm	10 mm	0.394 in	Flush Recessed	Rotary for Tool	500 Cycles	6

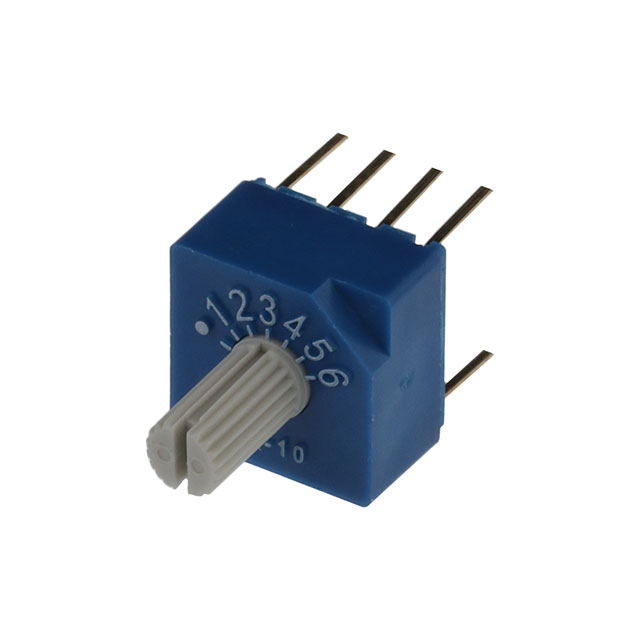

Nidec Components Corporation SS-10-16NP-LE	PC Pin	Polybutylene Terephthalate (PBT)	Gold	Through Hole	Copper Alloy	100 mA	5 V	SP6T	70 °C	-25 °C	13.59 mm		0.1 in	Full	2.54 mm	10 mm	0.394 in	Raised	Rotary with Shaft	500 Cycles	6	0.535 in
Nidec Components Corporation SS-10-16SP-L-AE	PC Pin	Polybutylene Terephthalate (PBT)	Gold	Through Hole	Copper Alloy	100 mA	5 V	SP6T	70 °C	-25 °C	13.59 mm		0.1 in	Full	2.54 mm	10 mm	0.394 in	Raised	Rotary with Shaft	500 Cycles	6	0.535 in

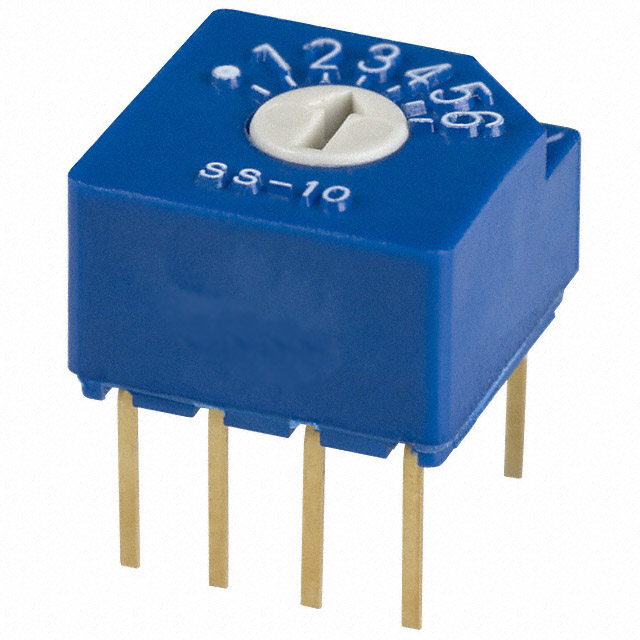

Nidec Components Corporation SS-10-16NPE	PC Pin	Polybutylene Terephthalate (PBT)	Gold	Through Hole	Copper Alloy	100 mA	5 V	SP6T	70 °C	-25 °C	0.275 in	6.99 mm	0.1 in	Full	2.54 mm	10 mm	0.394 in	Flush Recessed	Rotary for Tool	500 Cycles	6
