896-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Card Type	Read Out	Number of Positions/Bay/Row [custom]	Termination	Number of Positions	Color	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Material	Mounting Type	Pitch	Pitch	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 896-080-500-803	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder Eyelet(s)	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm

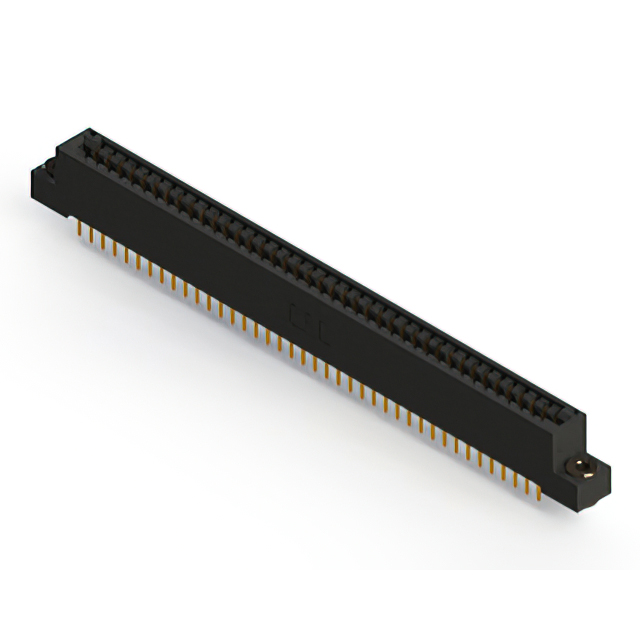

EDAC Inc. 896-080-521-203	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 896-080-500-202	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder Eyelet(s)	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 896-080-522-203	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 896-080-522-212	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm

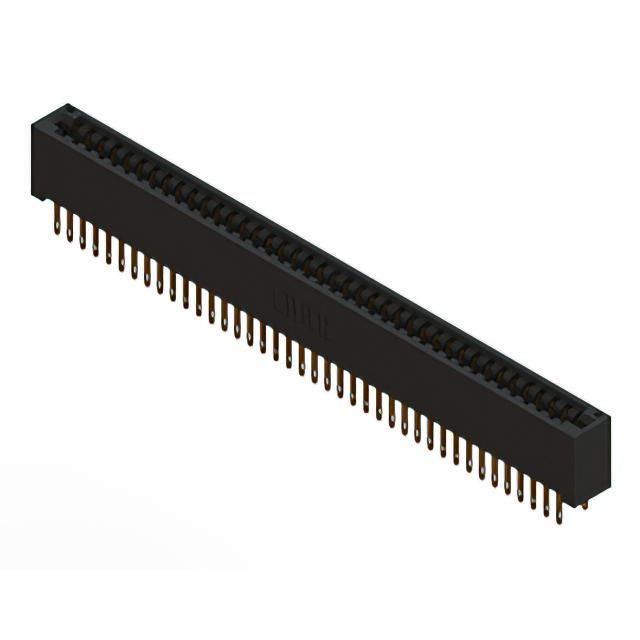

EDAC Inc. 896-080-500-201	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder Eyelet(s)	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in				0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 896-080-526-812	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 896-080-522-208	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in	4-40 Flush Mount Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 896-080-522-202	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 896-080-521-803	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	Non Specified - Dual Edge	Dual	40	Solder	80	Black	Gold	Cantilever	0.25 Ám	10 Áin	Female	Copper Alloy	Through Hole	3.18 mm	0.125 in	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm
