S26B-PHD Series

Catalog

CONN HEADER R/A 26POS 2MM

Part	Shrouding	Fastening Type	Connector Type	Style	Number of Rows [custom]	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Type	Voltage Rating	Contact Finish - Post	Termination	Number of Positions	Current Rating (Amps)

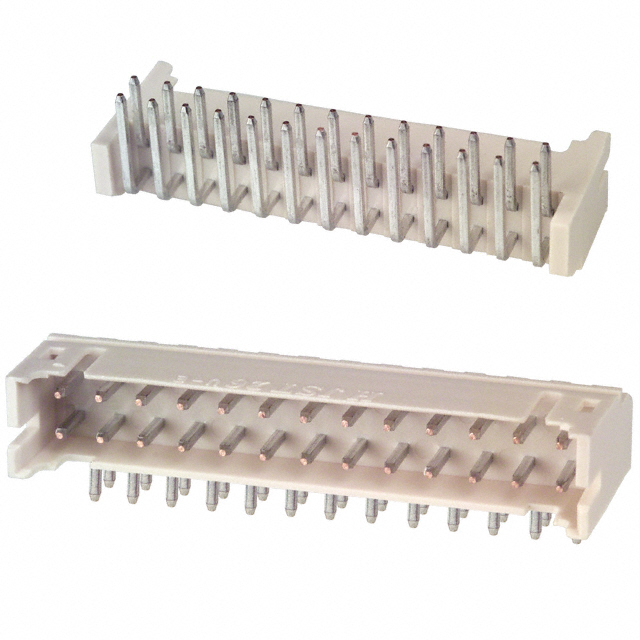

JST Sales America Inc. S26B-PHDSS	Shrouded - 4 Wall	Detent Lock	Header	Board to Cable/Wire	2	Square	2 mm	0.079 in	UL94 V-0	0.197 "	5 mm	Right Angle Through Hole	0.079 "	2 mm	All	Natural	Copper Alloy	85 °C	-25 °C	2.9 mm	0.114 in	Glass Filled Nylon Polyamide (PA)	0.118 in	3 mm	Male Pin	250 V	Tin	Solder	26	3 A
