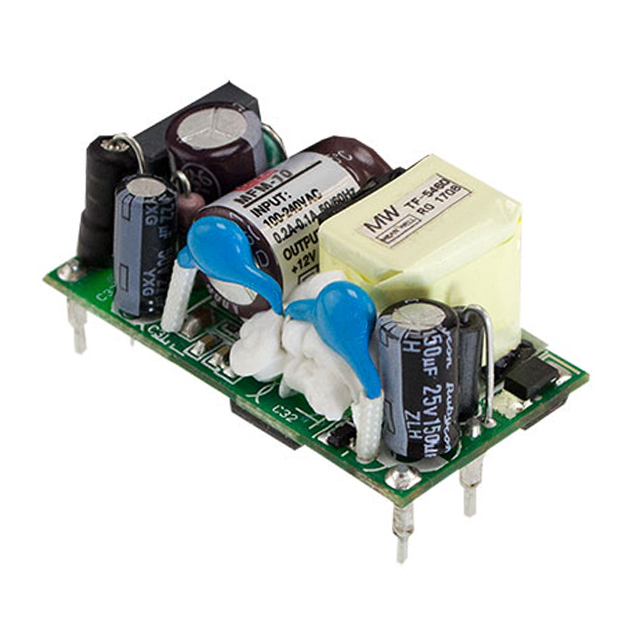

MFM-10 Series

Catalog

AC/DC CONVERTER 12V 10W

Part	Line Regulation	Load Regulation	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Efficiency	Features	Size / Dimension	Package / Case	Power (Watts)	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Approval Agency
MEAN WELL USA Inc. MFM-10-12	0.3 %	0.5 %	1	Through Hole	85 °C	-30 °C	Open Frame	83 %	Universal Input	0.81 " 0.88 " 1.65 in 20.5 mm 22.3 mm 42 mm	4-DIP Module	10 W	850 mA	12 V	80 VAC	264 VAC	Medical	CB CE cURus TUV
MEAN WELL USA Inc. MFM-10-15	0.3 %	0.5 %	1	Through Hole	85 °C	-30 °C	Open Frame	83 %	Universal Input	0.81 " 0.88 " 1.65 in 20.5 mm 22.3 mm 42 mm	4-DIP Module	10 W	670 mA	15 V	80 VAC	264 VAC	Medical	CB CE cURus TUV
MEAN WELL USA Inc. MFM-10-5	0.3 %	0.5 %	1	Through Hole	85 °C	-30 °C	Open Frame	81 %	Universal Input	0.81 " 0.88 " 1.65 in 20.5 mm 22.3 mm 42 mm	4-DIP Module	10 W	2 A	5 V	80 VAC	264 VAC	Medical	CB CE cURus TUV
