ODLC-65 Series

Catalog

LED DRVR CC AC/DC 69-93V 700MA

Part	Mounting Type	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Ratings	Current - Output (Max) [Max]	Power (Watts)	Type	Approval Agency	Voltage - Isolation	Termination Style	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Features	Dimming	Voltage - Output [Max]	Voltage - Output [Min]

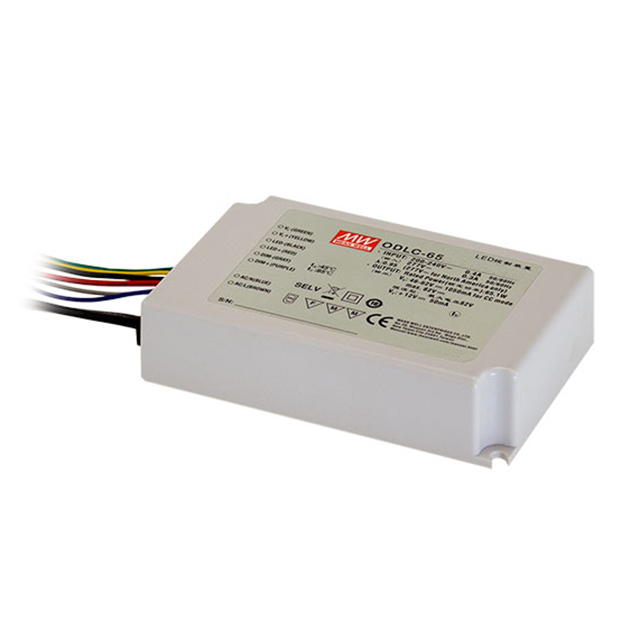

MEAN WELL USA Inc. ODLC-65-700	Chassis Mount	AC DC Converter	85 °C	-20 ░C	180 VAC	295 VAC	IP67	700 mA	65 W	Constant Current	CB CCC CE cURus ENEC	3750 VDC	Wire Leads	88 %	28.5 mm	3.03 in	1.12 "	77 mm	121 mm	4.76 "	1	SCP	Analog PWM

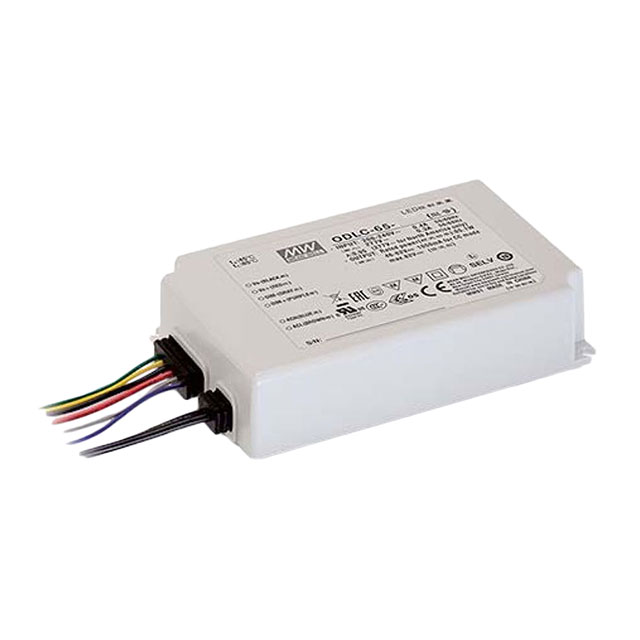

MEAN WELL USA Inc. ODLC-65-1050DA	Chassis Mount	AC DC Converter	85 °C	-20 ░C	180 VAC	295 VAC	IP67	1.05 A	65 W	Constant Current	CB CCC CE cURus EAC ENEC RCM	3750 VDC	Wire Leads	86 %	28.5 mm	3.03 in	1.12 "	77 mm	121 mm	4.76 "	1	SCP		62 V	46 V
