680M3W3 Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 680M SERIES, DA-3W3K, 0 CONTACTS, PLUG, 3, SOLDER CUP
| Part | Contact Material | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Connector Type | Shell Size, Connector Layout | Contact Finish | Current Rating (Amps) | Number of Positions | Features | Contact Type | Mounting Type | Shell Material, Finish | Material Flammability Rating | Flange Feature | Contact Finish Thickness | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

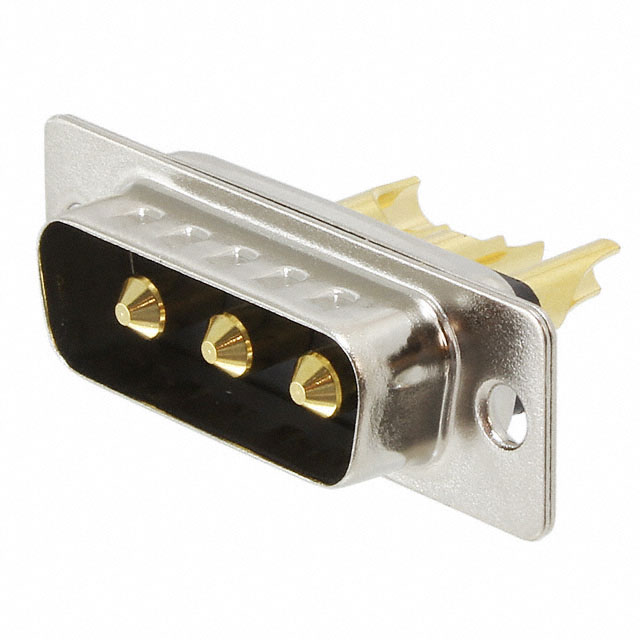

 NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | Black | -55 C | 125 °C | 1 | Plug Male Pins | 2 (DA A) - 3W3 | Gold | 40 A | 3 | Grounding Indents | Power | Panel Mount | Nickel Plated Steel | UL94 V-0 | Housing/Shell (Unthreaded) | Flash | Combo D-Sub |

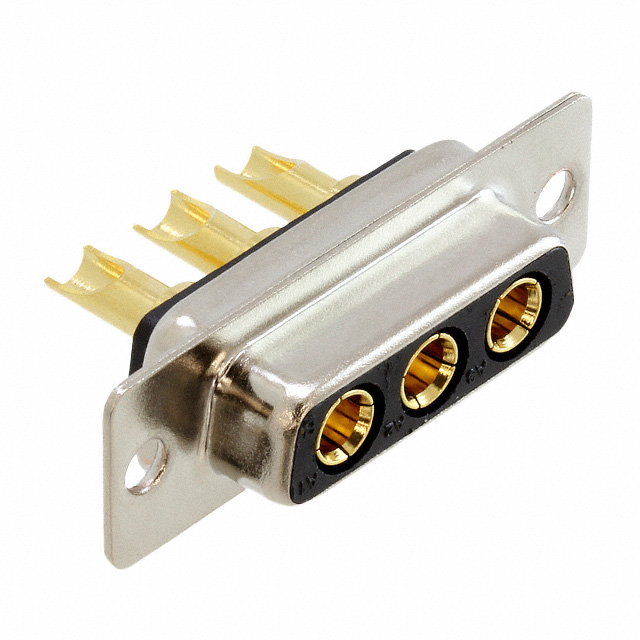

NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | Black | -55 C | 125 °C | 1 | Receptacle Female Sockets | 2 (DA A) - 3W3 | Gold | 20 A | 3 | Power | Panel Mount | Nickel Plated Steel | UL94 V-0 | Housing/Shell (Unthreaded) | Flash | Combo D-Sub | |
 NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | Black | -55 C | 155 C | 1 | Receptacle Female Sockets | 2 (DA A) - 3W3 | Gold | 20 A | 3 | Power | Panel Mount | Nickel Plated Steel | UL94 V-0 | Housing/Shell (Unthreaded) | Flash | Combo D-Sub | |
 NorComp Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | Black | -55 C | 155 C | 1 | Plug Male Pins | 2 (DA A) - 3W3 | Gold | 20 A | 3 | Grounding Indents | Power | Panel Mount | Nickel Plated Steel | UL94 V-0 | Housing/Shell (Unthreaded) | Flash | Combo D-Sub |
