5200 Series

Catalog

AC POWER ENTRY MODULES 5200 PWR ENTRY MODUL W. FILTER 1A M5

Part	Material Flammability Rating	Connector Type	Current Rating - Filter	Filter Type	Connector Style	Fuse Holder, Drawer	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Approval Agency	Termination	Termination	Termination	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Panel Thickness	Panel Thickness [Max]	Panel Thickness [Min]	Ingress Protection
SCHURTER Inc. 5200.0143.3	UL94 V-0	Receptacle Male Blades - Module	1 A	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Fuse Holder	32 mm	29 mm	Panel Mount Snap-In	cULus ENEC	6.3 mm	Quick Connect	0.25 "	1 A	250 VAC	0.79 mm 3 mm	0.118 in	0.031 "	IP40
SCHURTER Inc. 5200.0643.3	UL94 V-0	Receptacle Male Blades - Module	6 A	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Fuse Holder	32 mm	29 mm	Panel Mount Snap-In	cULus ENEC	6.3 mm	Quick Connect	0.25 "	6 A	250 VAC	0.79 mm 3 mm	0.118 in	0.031 "	IP40

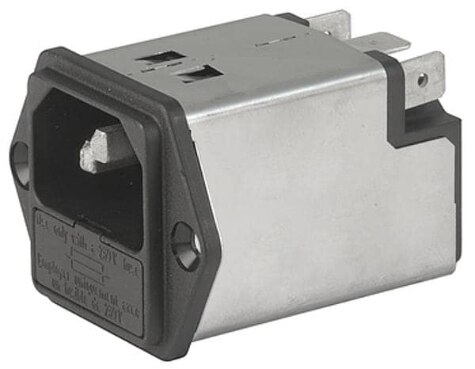

SCHURTER Inc. 5200.1043.3	UL94 V-0	Receptacle Male Blades - Module	10 A	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Fuse Holder	32 mm	29 mm	Panel Mount Snap-In	cULus ENEC	6.3 mm	Quick Connect	0.25 "	10 A	250 VAC	0.79 mm 3 mm	0.118 in	0.031 "	IP40
SCHURTER Inc. 5200.0843.1	UL94 V-0	Receptacle Male Blades - Module	8 A	Filtered (EMI RFI) - Commercial	IEC 320-C14	Fuse Holder	32 mm	29 mm	Panel Mount Snap-In	cULus ENEC	6.3 mm	Quick Connect	0.25 "	8 A	250 VAC	0.79 mm 3 mm	0.118 in	0.031 "	IP40
SCHURTER Inc. 5200.0623.3	UL94 V-0	Receptacle Male Blades - Module	6 A	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	Fuse Holder	32 mm	29 mm	Flange Panel Mount	cULus ENEC	6.3 mm	Quick Connect	0.25 "	6 A	250 VAC				IP40
