ED600 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

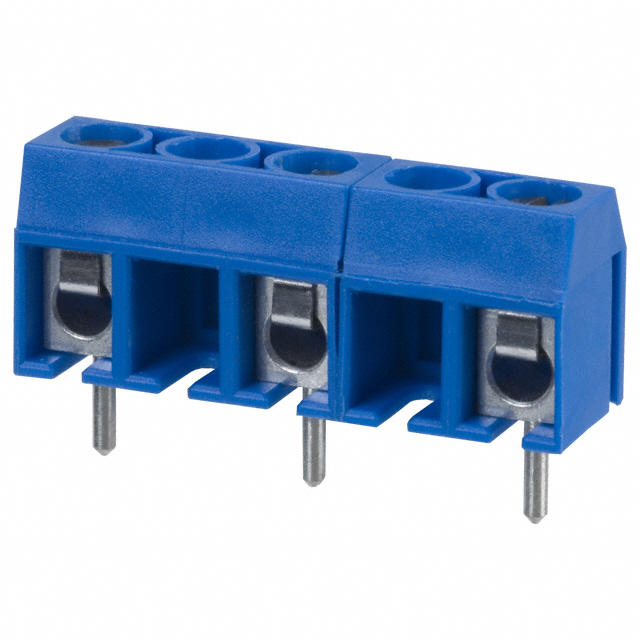

TERM BLK 3P SIDE ENTRY 10MM PCB
| Part | Torque - Screw | Torque - Screw | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Housing Material | Contact Material - Plating | Voltage | Color | Current | Pitch | Pitch | Mating Orientation | Mounting Type | Features | Positions Per Level | Number of Levels | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 3.5 Lb-In | 0.4 Nm | M2.6 | -30 ░C | 105 ░C | Stainless Steel | Polyamide (PA) Nylon | Brass | 300 VDC | Blue | 15 A | 0.394 in | 10 mm | Horizontal with Board | Through Hole | Interlocking (Side) | 3 | 1 | Screw - Leaf Spring Wire Guard | 14 AWG | 22 AWG |
