S2B-PH-K Series

Catalog

CONN HEADER R/A 2POS 2MM

Part	Shrouding	Number of Positions Loaded	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Style	Termination	Contact Shape	Number of Positions	Fastening Type	Contact Material	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Mounting Type	Number of Rows	Material Flammability Rating	Voltage Rating	Contact Length - Mating	Contact Length - Mating
JST Sales America Inc. S2B-PH-KL	Shrouded - 4 Wall	All	Header	Male Pin	85 °C	-25 °C	2 A	Board to Cable/Wire	Press-Fit Solder	Square	2	Detent Lock	Copper Alloy	Tin	4.8 mm	0.189 in	Gray	0.079 "	2 mm	Nylon 6/6 Polyamide (PA66)	0.134 "	3.4 mm	Right Angle Through Hole	1	UL94 V-0	100 V

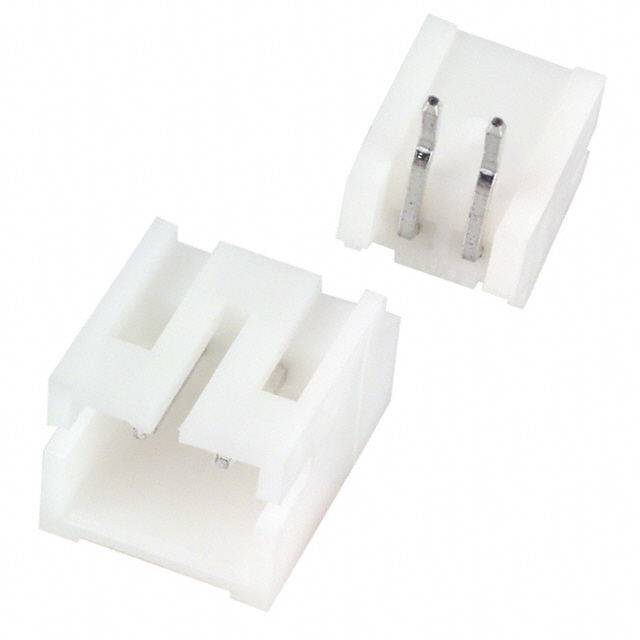

JST Sales America Inc. S2B-PH-K-S	Shrouded - 4 Wall	All	Header	Male Pin	85 °C	-25 °C	2 A	Board to Cable/Wire	Press-Fit Solder	Square	2	Detent Lock	Brass	Tin	4.8 mm	0.189 in	Natural	0.079 "	2 mm	Nylon 6/6 Polyamide (PA66)	0.134 "	3.4 mm	Right Angle Through Hole	1	UL94 V-0	100 V	0.13 in	3.3 mm
