9LG0824 Series

Catalog

FAN: DC; AXIAL; 24VDC; 80X80X25MM; 61.8M3/H; 31DBA; BALL; 3700RPM

Part	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Material - Frame	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Rated	RPM	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Fan Type	Static Pressure	Static Pressure	Termination	Approval Agency	Features	Weight	Weight

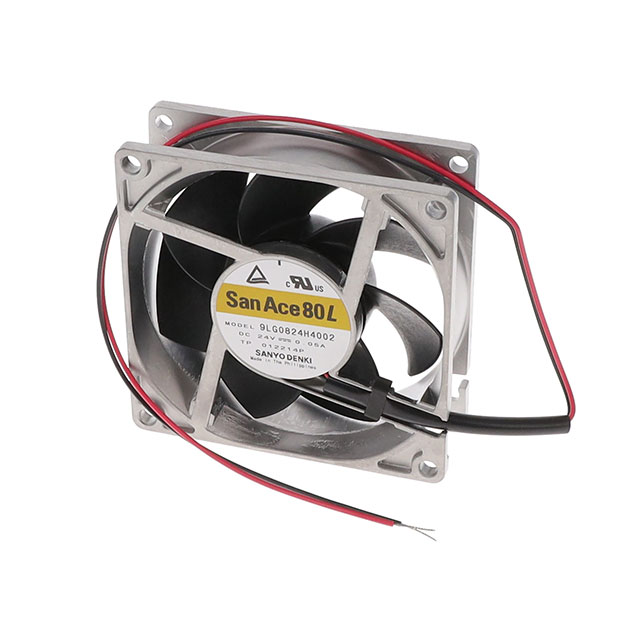

Sanyo Denki America Inc. 9LG0824H4002	26.4 VDC	21.6 VDC	180000 Hrs	1.02 m³/min	36.3 CFM	Plastic	50 mA	Aluminum	31 dB(A)	-20 ░C	70 °C	1.2 W	24 VDC	3700 RPM	Ball	80 mm	80 mm	25 mm	Tubeaxial	42.3 Pa	0.17 in H2O	2 Wire Leads	CSA TUV UL
Sanyo Denki America Inc. 9LG0824M4002						Plastic		Aluminum				960 mW	24 VDC		Ball	80 mm	80 mm	25 mm	Tubeaxial			2 Wire Leads

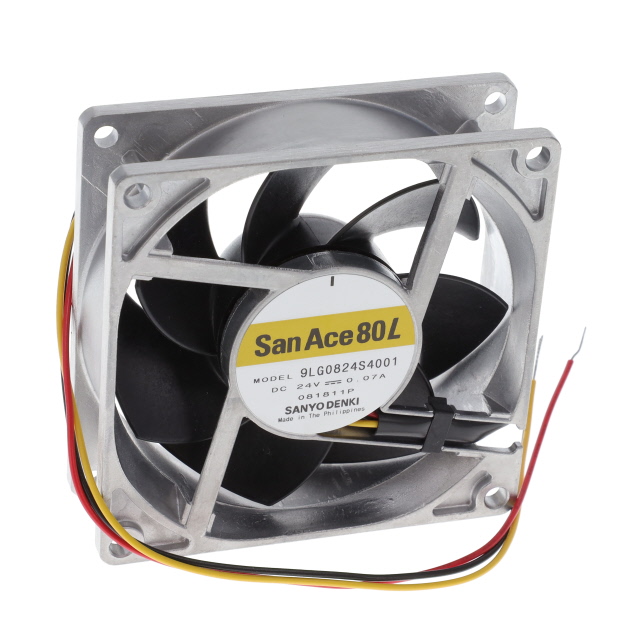

Sanyo Denki America Inc. 9LG0824S4001						Plastic		Aluminum				1.68 W	24 VDC		Ball	80 mm	80 mm	25 mm	Tubeaxial			3 Wire Leads		Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9LG0824P4H001	26.4 VDC	21.6 VDC	180000 Hrs	1.02 m³/min	36.3 CFM	Plastic	50 mA	Aluminum	31 dB(A)	-20 ░C	70 °C	1.2 W	24 VDC	3700 RPM	Ball	80 mm	80 mm	25 mm	Tubeaxial	42.3 Pa	0.17 in H2O	4 Wire Leads	CSA TUV UL	PWM Control Speed Sensor (Tach)	130.18 g	0.287 lb
Sanyo Denki America Inc. 9LG0824P4J001	26.4 VDC	21.6 VDC	180000 Hrs	2.04 m³/min	73 CFM	Plastic	0.28 A	Aluminum	49 dB	-20 ░C	70 °C	6.72 W	24 VDC	7400 RPM	Ball	80 mm	80 mm	25 mm	Tubeaxial	176.9 Pa	0.71 in H2O	4 Wire Leads	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	130.18 g	0.287 lb

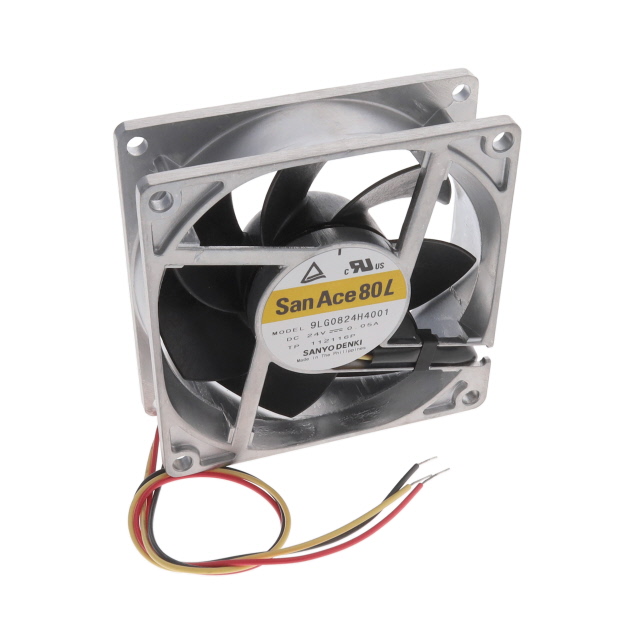

Sanyo Denki America Inc. 9LG0824H4001	26.4 VDC	21.6 VDC	180000 Hrs	1.02 m³/min	36.3 CFM	Plastic	50 mA	Aluminum	31 dB(A)	-20 ░C	70 °C	1.2 W	24 VDC	3700 RPM	Ball	80 mm	80 mm	25 mm	Tubeaxial	42.3 Pa	0.17 in H2O	3 Wire Leads	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)
