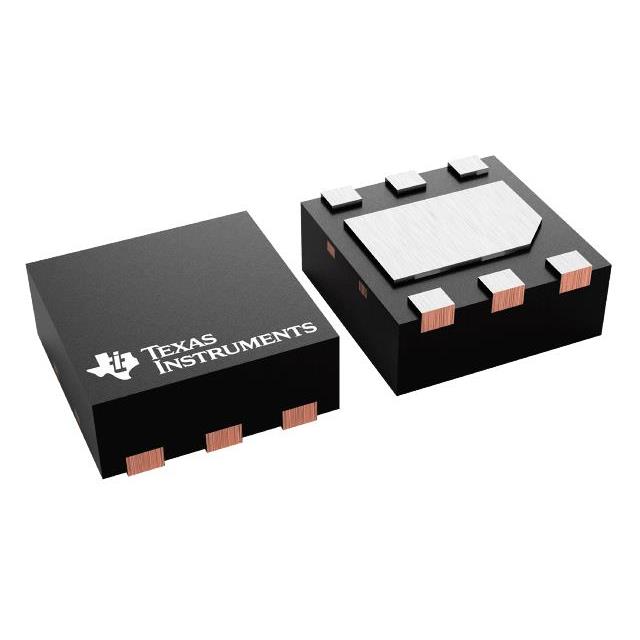

TPS715A-NM Series

80-mA 24-V ultra-low-IQ low-dropout (LDO) voltage regulator

Catalog

80-mA 24-V ultra-low-IQ low-dropout (LDO) voltage regulator

Part	Current - Quiescent (Iq)	Output Configuration	Mounting Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Voltage Dropout (Max) [Max]	Supplier Device Package	Number of Regulators	Package / Case	Protection Features	PSRR	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Output Type	Grade	Qualification	Supplied Contents	Regulator Type	Voltage - Output	Channels per IC	Utilized IC / Part	Board Type	Voltage - Input [Max]	Voltage - Input [Min]
Texas Instruments TPS71530DCKR	4.2 µA	Positive	Surface Mount	1.81 mOhm	125 °C	-40 °C	50 mA	0.75 V	SC-70-5	1	5-TSSOP SC-70-5 SOT-353	Over Current	60 dB	24 V
Texas Instruments TPS715A33DRVR	4.2 µA	Positive	Surface Mount	1.81 mOhm	125 °C	-40 °C	80 mA	1.12 V	6-WSON (2x2)	1		Over Current Reverse Polarity	60 dB	24 V	3.3 V	5.8 µA
Texas Instruments TPS71501DCKRM3	5.8 µA	Positive	Surface Mount		125 ¯C	-40 °C	50 mA	0.75 V	SC-70-5	1	5-TSSOP SC-70-5 SOT-353	Over Current Short Circuit	60 dB	24 V	1.2 V	5.8 µA	Adjustable
Texas Instruments TPS715A01DRBT	4.2 µA	Positive	Surface Mount		125 °C	-40 °C	80 mA	1.12 V	8-SON (3x3)	1	8-VDFN Exposed Pad	Over Current Reverse Polarity	60 dB	24 V	1.2 V	5.8 µA	Adjustable
Texas Instruments TPS715A33DRBRM3	5.8 µA	Positive	Surface Mount	1.81 mOhm	125 ¯C	-40 °C	80 mA	1.12 V	8-SON (3x3)	1	8-VDFN Exposed Pad	Over Current Reverse Polarity	60 dB	24 V	3.3 V	5.8 µA
Texas Instruments TPS71533QDCKRQ1	12 µA	Positive	Surface Mount	1.81 mOhm	125 °C	-40 °C	50 mA	0.75 V	SC-70-5	1	5-TSSOP SC-70-5 SOT-353	Over Current Reverse Polarity	60 dB	24 V	3.3 V			Automotive	AEC-Q100
Texas Instruments TPS715A33DRVT	4.2 µA	Positive	Surface Mount	1.81 mOhm	125 °C	-40 °C	80 mA	1.12 V	6-WSON (2x2)	1		Over Current Reverse Polarity	60 dB	24 V	3.3 V	5.8 µA
Texas Instruments TPS71501DCKRG4	4.2 µA	Positive	Surface Mount		125 °C	-40 °C	50 mA	0.75 V	SC-70-5	1	5-TSSOP SC-70-5 SOT-353	Over Current	60 dB	24 V	1.2 V		Adjustable

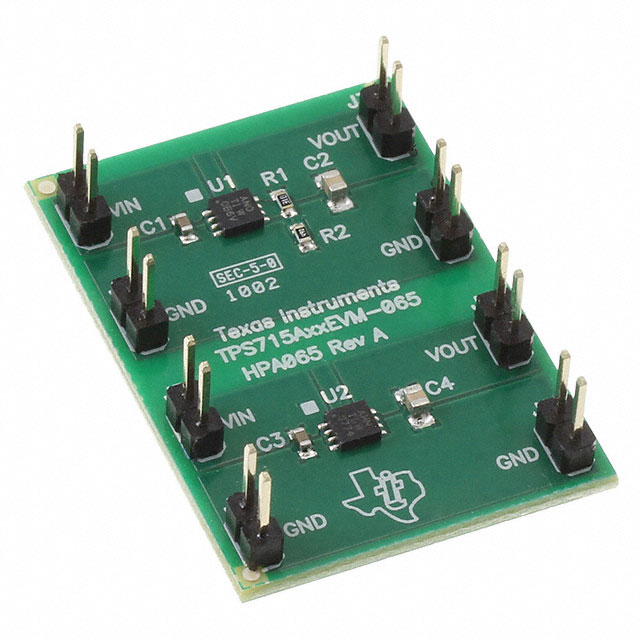

Texas Instruments TPS715AXXEVM-065							80 mA													Board(s)	Positive Fixed and Adjustable	3.3 V 5 V	1 - Single	TPS715A01 TPS715A33	Bare (Unpopulated)	24 V	2.5 V
Texas Instruments TPS715A30DRVR	4.2 µA	Positive	Surface Mount	1.81 mOhm	125 °C	-40 °C	80 mA	1.12 V	6-WSON (2x2)	1		Over Current Reverse Polarity	60 dB	24 V		5.8 µA

Catalog

80-mA 24-V ultra-low-IQ low-dropout (LDO) voltage regulator

Key Features

• Input voltage range:2.5 V to 24 V (30 V max for new chip only)Available output voltage options:Fixed: 1.8 V to 5 VAdjustable: 1.205 V to 15 VOutput current: Up to 50 mAVery low IQ: 3.2 µA at 50-mA load currentStable with output capacitor ≥ 0.47 µFOvercurrent protectionPackage: 5-pin SC70 (DCK)Operating junction temperature: –40°C to +125°CFor an 80-mA rated current and higher power package, see theTPS715AInput voltage range:2.5 V to 24 V (30 V max for new chip only)Available output voltage options:Fixed: 1.8 V to 5 VAdjustable: 1.205 V to 15 VOutput current: Up to 50 mAVery low IQ: 3.2 µA at 50-mA load currentStable with output capacitor ≥ 0.47 µFOvercurrent protectionPackage: 5-pin SC70 (DCK)Operating junction temperature: –40°C to +125°CFor an 80-mA rated current and higher power package, see theTPS715A

Description

The TPS715A low-dropout (LDO) linear voltage regulator is a low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TPS715A is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers. The TPS715A is available in both fixed and adjustable versions. For more flexibility or higher output voltages, the adjustable version uses external feedback resistors to set the output voltage from 1.205 V to 15 V. The TPS715A LDOs support a low dropout of 650 mV (typ) at 80 mA of load current. The low quiescent current (3.2 µA typically) is stable over the entire range of output load current (0 mA to 80 mA). The TPS715A (new chip) also features an internal soft-start to lower the inrush current. The built-in overcurrent limit helps protect the regulator in the event of a load short or fault. The TPS715A is available in a 3-mm × 3-mm package for use in high power dissipation applications and a small 2-mm × 2-mm package for hand-held and ultra-portable applications. The 3-mm × 3-mm package is also available as a non-magnetic package for medical imaging applications. The TPS715A low-dropout (LDO) linear voltage regulator is a low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TPS715A is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers. The TPS715A is available in both fixed and adjustable versions. For more flexibility or higher output voltages, the adjustable version uses external feedback resistors to set the output voltage from 1.205 V to 15 V. The TPS715A LDOs support a low dropout of 650 mV (typ) at 80 mA of load current. The low quiescent current (3.2 µA typically) is stable over the entire range of output load current (0 mA to 80 mA). The TPS715A (new chip) also features an internal soft-start to lower the inrush current. The built-in overcurrent limit helps protect the regulator in the event of a load short or fault. The TPS715A is available in a 3-mm × 3-mm package for use in high power dissipation applications and a small 2-mm × 2-mm package for hand-held and ultra-portable applications. The 3-mm × 3-mm package is also available as a non-magnetic package for medical imaging applications.
