LY T676 Series

Catalog

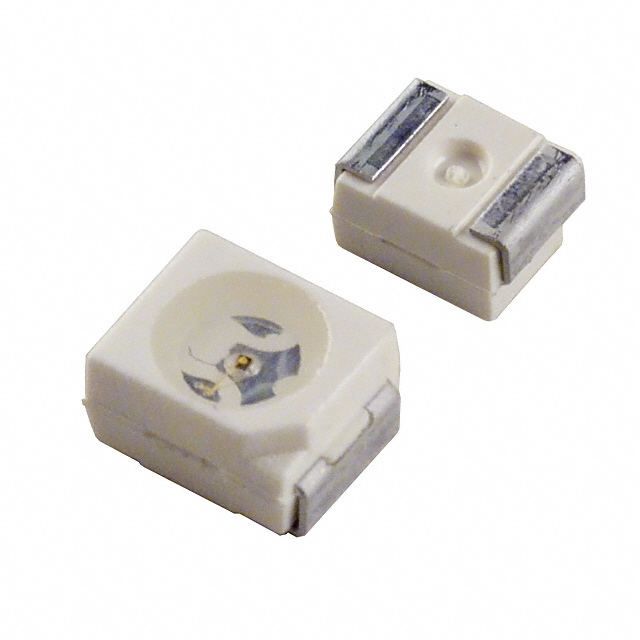

LED YELLOW SMD

Part	Viewing Angle	Color	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Supplier Device Package	Configuration	Height (Max) [z]	Lens Style	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Size [diameter]	Current - Test	Wavelength - Dominant	Wavelength - Peak	Lens Transparency	Lens Color
ams-OSRAM USA INC. LY T676-Q1R1-4-0-20-R33-Z	120 °	Yellow	2.8 mm	3.2 mm	Surface Mount	2-PLCC	2-PLCC	Standard	2.8 mm
ams-OSRAM USA INC. LY T676-Q1R1-26-0-20-R18-Z	120 °	Yellow	2.8 mm	3.2 mm	Surface Mount	2-PLCC	2-PLCC	Standard	2.8 mm
ams-OSRAM USA INC. LY T676-R2S2-46-Z	120 °	Yellow	2.8 mm	3.2 mm	Surface Mount	2-PLCC	2-PLCC		2.1 mm	Round with Flat Top	2 V	210 mcd	2.4 mm Dia	20 mA	587 nm	591 nm
ams-OSRAM USA INC. LY T676-Q2T1-26-Z	120 °	Yellow	2.8 mm	3.2 mm	Surface Mount	2-PLCC	2-PLCC		2.1 mm	Round with Flat Top	2 V	222.5 mcd	2.4 mm Dia	20 mA	587 nm	591 nm
ams-OSRAM USA INC. LY T676-R2S2-35-Z	120 °	Yellow	2.8 mm	3.2 mm	Surface Mount	2-PLCC	2-PLCC		2.1 mm	Round with Flat Top	2 V	210 mcd	2.4 mm Dia	20 mA	587 nm	591 nm
ams-OSRAM USA INC. LY T676-Q2R2-46-L-Z	120 °	Yellow	2.8 mm	3.2 mm	Surface Mount	2-PLCC	2-PLCC		2.1 mm	Round with Flat Top	2 V	135 mcd	2.4 mm Dia	20 mA	587 nm	591 nm
ams-OSRAM USA INC. LY T676-S1T1-26/Q65110A1419
ams-OSRAM USA INC. LY T676-S1T1-26-0-20-R18-ZP
ams-OSRAM USA INC. LY T676-R1S2-26-Z	120 °	Yellow	2.8 mm	3.2 mm	Surface Mount	2-PLCC	2-PLCC	Standard	2.1 mm	Round with Flat Top	2 V	196 mcd	2.4 mm Dia	20 mA	587 nm	591 nm	Clear	Colorless
ams-OSRAM USA INC. LY T676-Q1R1-45-0-20-R18-Z-BP	120 °	Yellow	2.8 mm	3.2 mm	Surface Mount	2-PLCC	2-PLCC	Standard	2.8 mm
