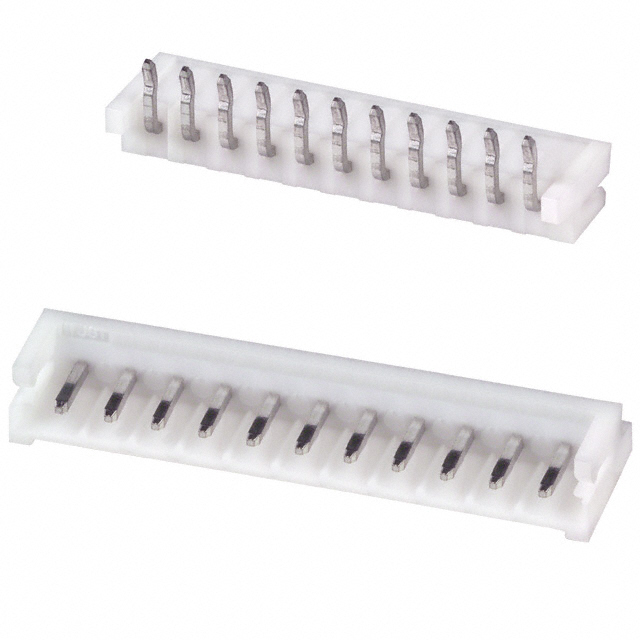

S11B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 11POS 2.5MM
| Part | Contact Type | Insulation Color | Number of Rows | Number of Positions Loaded | Material Flammability Rating | Shrouding | Contact Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Number of Positions | Connector Type | Termination | Insulation Material | Mounting Type | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Shape | Fastening Type | Style | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Male Pin | Natural | 1 | All | UL94 V-0 | Shrouded - 3 Wall | Brass | 250 V | 85 °C | -25 °C | 3 A | 11 | Header | Press-Fit Solder | Nylon 6/6 Polyamide (PA66) | Right Angle Through Hole | 0.165 in | 4.2 mm | 2.5 mm | 0.098 in | Square | Latch Lock | Board to Cable/Wire | Tin | 0.126 " | 3.2 mm | 4 mm | 0.157 in |
