MMT060A Series

Catalog

CONN FMALE INSERT 4POS GOLD SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Shielding	Material Flammability Rating	Contact Finish - Mating	Insert Material [custom]	Insert Material [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Applications	Features	Shell Size - Insert	Voltage Rating	Contact Material	Termination	Mounting Type	Connector Type	Orientation	Orientation [x]
METZ CONNECT USA Inc. MMT060A115-G2	85 °C	-40 C	Green	4	Unshielded	UL94 V-0	Gold	Nylon	Polyamide (PA)	7.87 Áin	0.2 Ám	4 A	Industrial	Board Guide Insert Only Requires Shell	M12-4	250 V	Copper Zinc	Solder	Through Hole	Insert Female Sockets	D

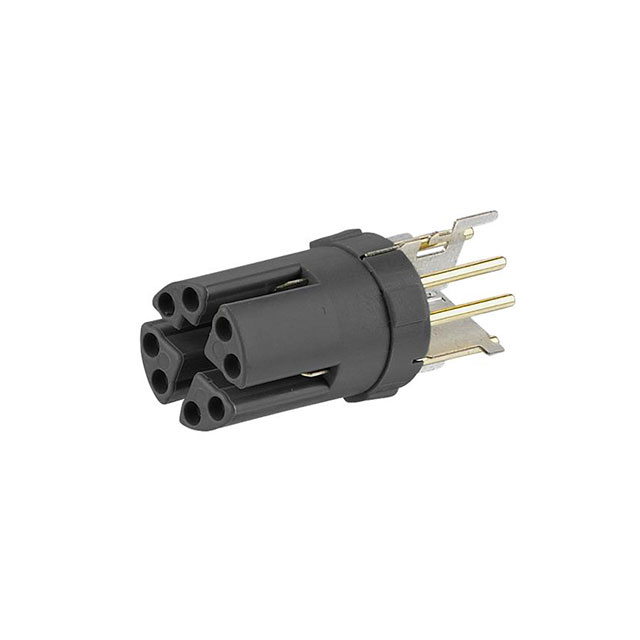

METZ CONNECT USA Inc. MMT060A315-0001	85 °C	-40 C	Black	8	Shielded		Gold						Railway	Insert Only Requires Shell	M12-8	50 VAC 60 VDC	Copper Zinc	Solder		Insert Female Sockets		X

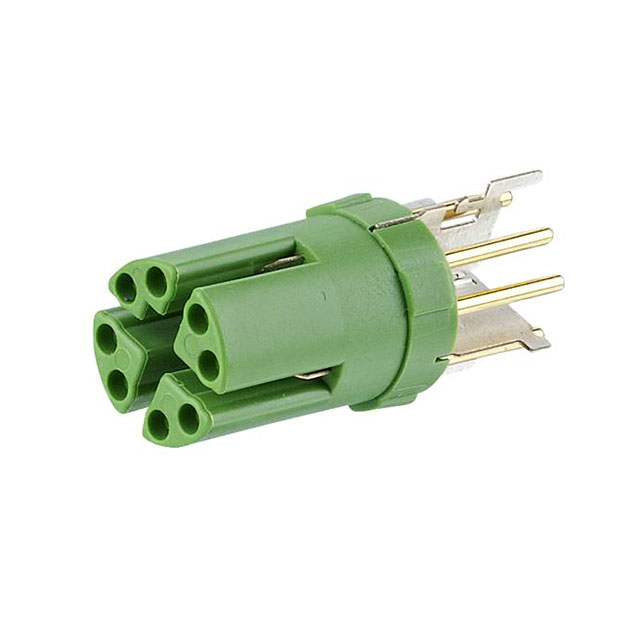

METZ CONNECT USA Inc. MMT060A315	85 °C	-40 C	Green	8	Shielded		Gold						Railway	Insert Only Requires Shell	M12-8	50 VAC 60 VDC	Copper Zinc	Solder		Insert Female Sockets		X
METZ CONNECT USA Inc. MMT060A115	85 °C	-40 C	Green	4	Unshielded	UL94 V-0	Gold	Nylon	Polyamide (PA)	7.87 Áin	0.2 Ám	4 A	Industrial	Board Guide Insert Only Requires Shell	M12-4	250 V	Copper Zinc	Solder	Through Hole	Insert Female Sockets	D

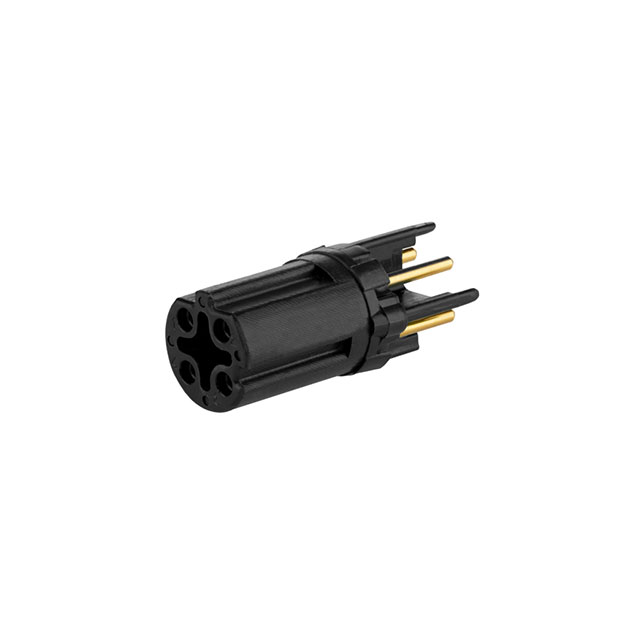

METZ CONNECT USA Inc. MMT060A115-0001	85 °C	-40 C	Black	4	Unshielded	UL94 V-0	Gold	Nylon	Polyamide (PA)	7.87 Áin	0.2 Ám	4 A	Industrial	Board Guide Insert Only Requires Shell	M12-4	250 V	Copper Zinc	Solder	Through Hole	Insert Female Sockets	D
