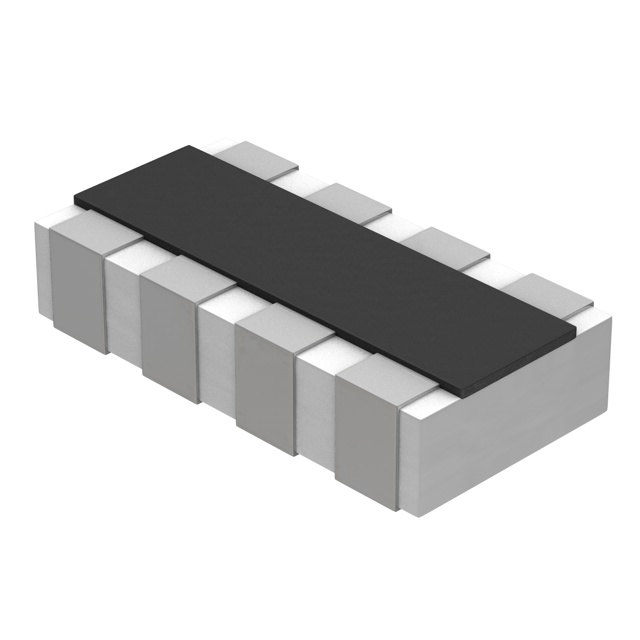

EXB-18 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
RES ARRAY 4 RES 18K OHM 0502
| Part | Tolerance | Temperature Coefficient | Mounting Type | Circuit Type | Number of Pins | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Operating Temperature [Min] | Operating Temperature [Max] | Power Per Element | Resistance (Ohms) | Number of Resistors | Package / Case | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 5 % | 200 ppm/°C | Surface Mount | Isolated | 8 | 0.6 mm | 0.024 " | 0.055 in | 1.4 mm | 0.45 mm | 0.018 " | -55 °C | 125 °C | 31 mW | 18 kOhms | 4 | 0502 (1406 Metric) Long Side Terminals | |
Panasonic Industrial Automation Sales | 5 % | 200 ppm/°C | Surface Mount | Isolated | 8 | 0.6 mm | 0.024 " | 0.055 in | 1.4 mm | 0.45 mm | 0.018 " | -55 °C | 125 °C | 31 mW | 68 Ohms | 4 | 0502 (1406 Metric) Long Side Terminals | |
Panasonic Industrial Automation Sales | 5 % | 200 ppm/°C | Surface Mount | Isolated | 8 | 0.6 mm | 0.024 " | 0.055 in | 1.4 mm | 0.45 mm | 0.018 " | -55 °C | 125 °C | 31 mW | 180 Ohms | 4 | 0502 (1406 Metric) Long Side Terminals | |
Panasonic Industrial Automation Sales | 5 % | 200 ppm/°C | Surface Mount | Isolated | 8 | 0.6 mm | 0.024 " | 0.055 in | 1.4 mm | 0.45 mm | 0.018 " | -55 °C | 125 °C | 31 mW | 82 Ohms | 4 | 0502 (1406 Metric) Long Side Terminals | |
Panasonic Industrial Automation Sales | 5 % | 200 ppm/°C | Surface Mount | Isolated | 8 | 0.6 mm | 0.024 " | 0.055 in | 1.4 mm | 0.45 mm | 0.018 " | -55 °C | 125 °C | 31 mW | 4 | 0502 (1406 Metric) Long Side Terminals | 220k | |
Panasonic Industrial Automation Sales | 5 % | 200 ppm/°C | Surface Mount | Isolated | 8 | 0.6 mm | 0.024 " | 0.055 in | 1.4 mm | 0.45 mm | 0.018 " | -55 °C | 125 °C | 31 mW | 4 | 0502 (1406 Metric) Long Side Terminals | 150k | |
Panasonic Industrial Automation Sales | 5 % | 200 ppm/°C | Surface Mount | Isolated | 8 | 0.6 mm | 0.024 " | 0.055 in | 1.4 mm | 0.45 mm | 0.018 " | -55 °C | 125 °C | 31 mW | 680 Ohms | 4 | 0502 (1406 Metric) Long Side Terminals | |
Panasonic Industrial Automation Sales | 5 % | 200 ppm/°C | Surface Mount | Isolated | 8 | 0.6 mm | 0.024 " | 0.055 in | 1.4 mm | 0.45 mm | 0.018 " | -55 °C | 125 °C | 31 mW | 22 Ohms | 4 | 0502 (1406 Metric) Long Side Terminals | |
Panasonic Industrial Automation Sales | ||||||||||||||||||
Panasonic Industrial Automation Sales | 5 % | 200 ppm/°C | Surface Mount | Isolated | 8 | 0.6 mm | 0.024 " | 0.055 in | 1.4 mm | 0.45 mm | 0.018 " | -55 °C | 125 °C | 31 mW | 4 | 0502 (1406 Metric) Long Side Terminals | 470k |
