Schaffner FN402 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 250VAC 1.6A TH

Part	Termination Style	Mounting Type	Inductance	Approval Agency	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Current	Applications	Voltage - Rated AC	Frequency - Operating	Configuration
TE Connectivity AMP Connectors FN402-1.6-02	PC Pins	Through Hole	6 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	1.6 A	General Purpose	250 V	DC ~ 400Hz	Single Stage
TE Connectivity AMP Connectors FN402B-1-02	PC Pins	Through Hole	10 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	1 A	General Purpose	250 V	DC ~ 400Hz	Single Stage

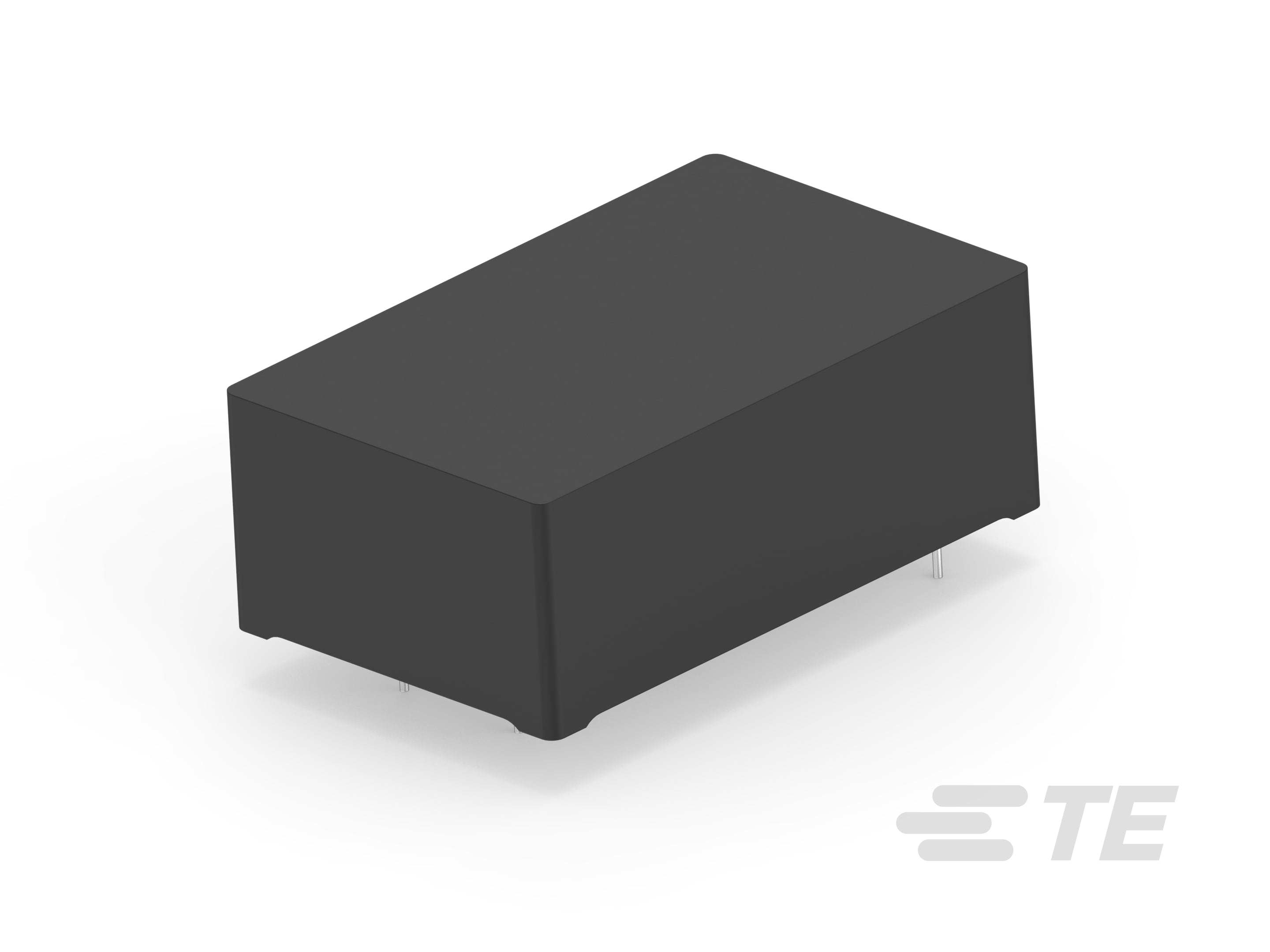

TE Connectivity AMP Connectors FN402B-1.6-02	PC Pins	Through Hole	6 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	1.6 A	General Purpose	250 V	DC ~ 400Hz	Single Stage
TE Connectivity AMP Connectors FN402-4-02	PC Pins	Through Hole	1 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	4 A	General Purpose	250 V	DC ~ 400Hz	Single Stage
TE Connectivity AMP Connectors FN402-1-02	PC Pins	Through Hole	10 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	1 A	General Purpose	250 V	DC ~ 400Hz	Single Stage
TE Connectivity AMP Connectors FN402B-6.5-02	PC Pins	Through Hole	1 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	6.5 A	General Purpose	250 V	DC ~ 400Hz	Single Stage

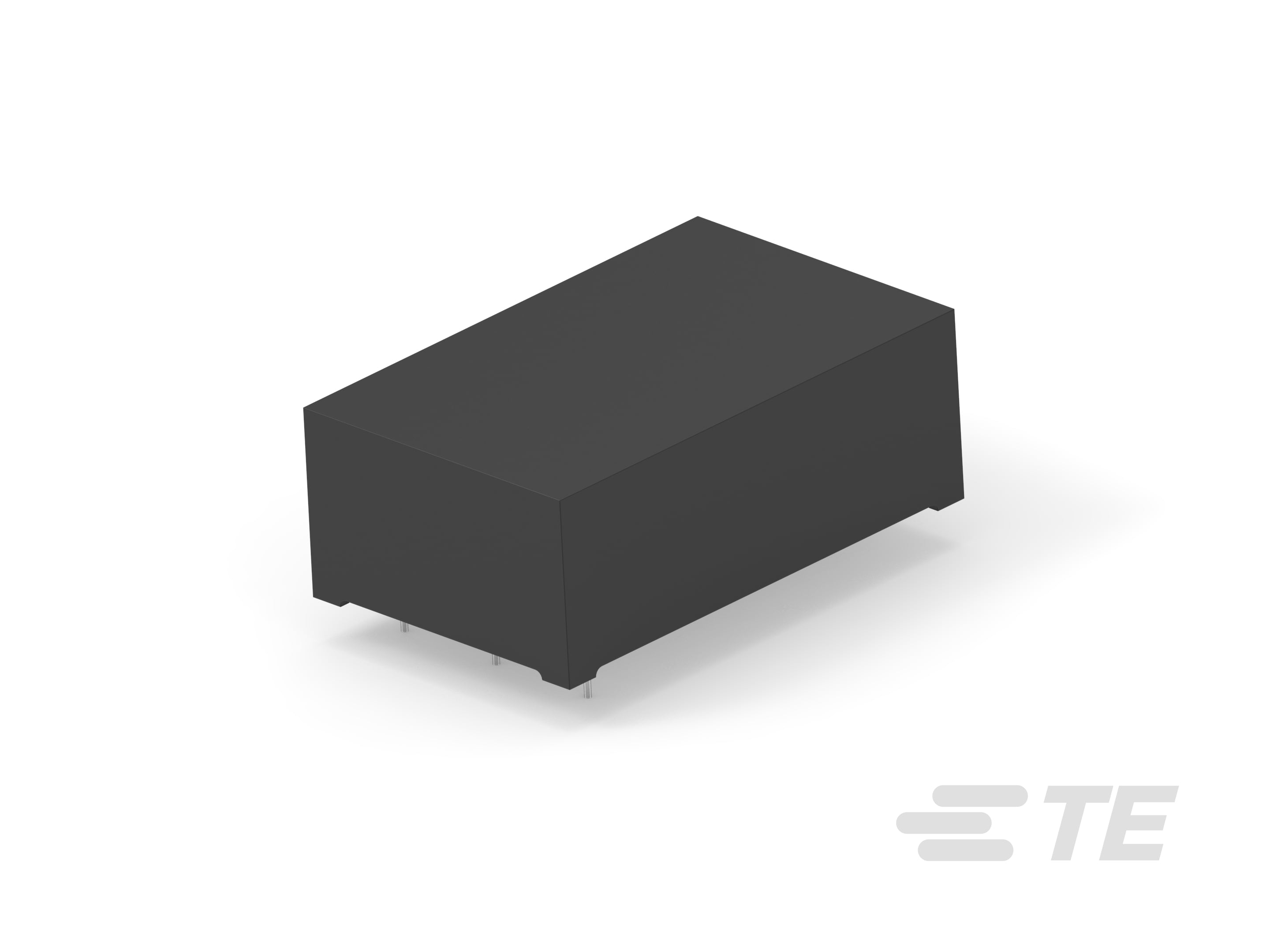

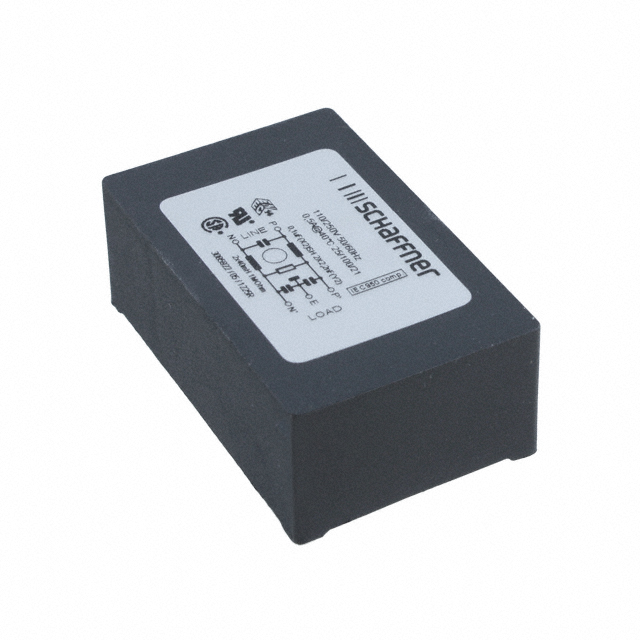

TE Connectivity AMP Connectors FN402-0.5-02	PC Pins	Through Hole	40 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	500 mA	General Purpose	250 V	DC ~ 400Hz	Single Stage
TE Connectivity AMP Connectors FN402-6.5-02	PC Pins	Through Hole	1 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	6.5 A	General Purpose	250 V	DC ~ 400Hz	Single Stage
TE Connectivity AMP Connectors FN402B-2.5-02	PC Pins	Through Hole	2 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	2.5 A	General Purpose	250 V	DC ~ 400Hz	Single Stage
TE Connectivity AMP Connectors FN402B-4-02	PC Pins	Through Hole	1 mH	CSA ENEC UR	Single Phase	100 °C	-25 °C	4 A	General Purpose	250 V	DC ~ 400Hz	Single Stage
