XR79110 Series
Manufacturer: MaxLinear, Inc.
Beta
⌘K
EVAL BOARD XR79110 10A POWER MOD
| Part | Board Type | Outputs and Type | Outputs and Type | Voltage - Output | Supplied Contents | Contents | Utilized IC / Part | Main Purpose | Frequency - Switching | Regulator Topology | Current - Output | Package / Case | Number of Outputs | Features | Voltage - Input (Max) [Max] | Supplier Device Package | Type | Current - Output (Max) [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Efficiency | Voltage - Input (Min) [Min] | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MaxLinear, Inc. | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | 0.6 V | Board(s) | Board(s) | XR79110 | DC/DC Step Down | 800 kHz | Buck | 10 A | |||||||||||||||||||||

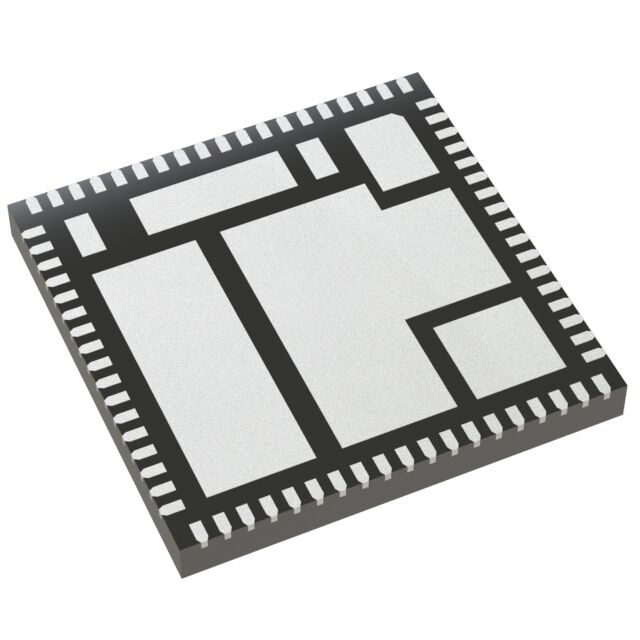

 MaxLinear, Inc. | 72-PowerBFQFN Module | 1 | OCP OTP SCP UVLO | 22 V | 72-QFN (10x10) | Non-Isolated PoL Module | 10 A | Surface Mount | 125 °C | -40 C | 10 mm | 0.39 " | 0.16 in | 10 mm | 0.39 in | 4 mm | ITE (Commercial) | 96 % | 4.5 V | 0.6 V | 5.5 V |
