R7FA4T1B93 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
MCU:RA
| Part | Supplier Device Package | Number of I/O | Peripherals | Program Memory Size | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Core Size | Mounting Type | Data Converters | Data Converters | EEPROM Size | Program Memory Type | RAM Size | Core Processor | Oscillator Type | Speed | Operating Temperature [Min] | Operating Temperature [Max] | Connectivity | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 32-HWQFN (5x5) | 16 | DMA LVD POR PWM WDT | 128 KB | 3.6 V | 2.7 V | 32-Bit | Surface Mount | 1 channels 5 channels 12 b | A/D D/A | 4K x 8 | FLASH | 40 K | ARM® Cortex®-M33 | Internal | 100 MHz | -40 °C | 105 °C | CANbus EBI/EMI I2C I3C IrDA MMC/SD SCI SPI UART/USART | |
 Renesas Electronics Corporation | 64-LFQFP (10x10) | 45 | DMA LVD POR PWM WDT | 128 KB | 3.6 V | 2.7 V | 32-Bit | Surface Mount | A/D 12x12b SAR D/A 2x12b | 4K x 8 | FLASH | 40 K | ARM® Cortex®-M33 | Internal | 100 MHz | -40 °C | 105 °C | CANbus EBI/EMI I2C I3C IrDA MMC/SD SCI SPI UART/USART | 64-LQFP | |
Renesas Electronics Corporation | 64-LFQFP (10x10) | 45 | DMA LVD POR PWM WDT | 128 KB | 3.6 V | 2.7 V | 32-Bit | Surface Mount | A/D 12x12b SAR D/A 2x12b | 4K x 8 | FLASH | 40 K | ARM® Cortex®-M33 | Internal | 100 MHz | -40 °C | 105 °C | CANbus EBI/EMI I2C I3C IrDA MMC/SD SCI SPI UART/USART | 64-LQFP | |
 Renesas Electronics Corporation | 48-LFQFP (7x7) | 29 | DMA LVD POR PWM WDT | 128 KB | 3.6 V | 2.7 V | 32-Bit | Surface Mount | A/D 8x12b SAR D/A 2x12b | 4K x 8 | FLASH | 40 K | ARM® Cortex®-M33 | Internal | 100 MHz | -40 °C | 105 °C | CANbus EBI/EMI I2C I3C IrDA MMC/SD SCI SPI UART/USART | 48-LQFP | |
 Renesas Electronics Corporation | 32-LQFP (7x7) | 16 | DMA LVD POR PWM WDT | 128 KB | 3.6 V | 2.7 V | 32-Bit | Surface Mount | 1 channels 5 channels 12 b | A/D D/A | 4K x 8 | FLASH | 40 K | ARM® Cortex®-M33 | Internal | 100 MHz | -40 °C | 105 °C | CANbus EBI/EMI I2C I3C IrDA MMC/SD SCI SPI UART/USART | 32-LQFP |

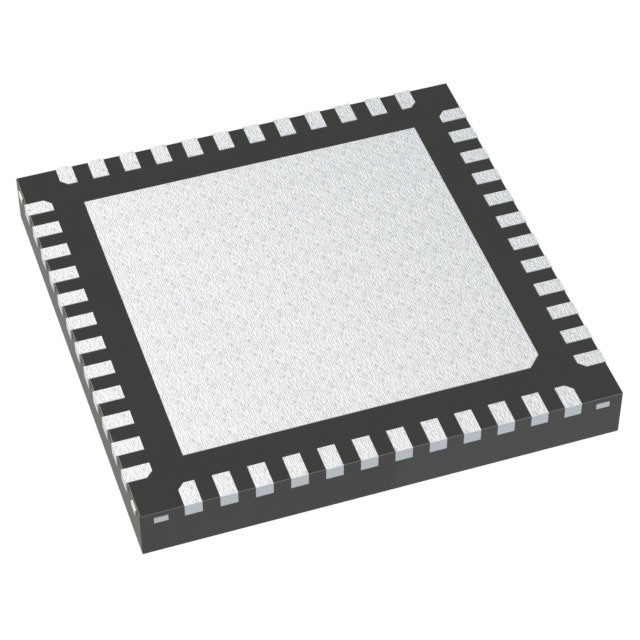

 Renesas Electronics Corporation | 48-HWQFN (7x7) | 29 | DMA LVD POR PWM WDT | 128 KB | 3.6 V | 2.7 V | 32-Bit | Surface Mount | A/D 8x12b SAR D/A 2x12b | 4K x 8 | FLASH | 40 K | ARM® Cortex®-M33 | Internal | 100 MHz | -40 °C | 105 °C | CANbus EBI/EMI I2C I3C IrDA MMC/SD SCI SPI UART/USART | 48-WFQFN Exposed Pad | |
Renesas Electronics Corporation | 64-LFQFP (10x10) | 45 | DMA LVD POR PWM WDT | 128 KB | 3.6 V | 2.7 V | 32-Bit | Surface Mount | A/D 12x12b SAR D/A 2x12b | 4K x 8 | FLASH | 40 K | ARM® Cortex®-M33 | Internal | 100 MHz | -40 °C | 105 °C | CANbus EBI/EMI I2C I3C IrDA MMC/SD SCI SPI UART/USART | 64-LQFP | |
Renesas Electronics Corporation | 32-LQFP (7x7) | 16 | DMA LVD POR PWM WDT | 128 KB | 3.6 V | 2.7 V | 32-Bit | Surface Mount | 1 channels 5 channels 12 b | A/D D/A | 4K x 8 | FLASH | 40 K | ARM® Cortex®-M33 | Internal | 100 MHz | -40 °C | 105 °C | CANbus EBI/EMI I2C I3C IrDA MMC/SD SCI SPI UART/USART | 32-LQFP |
Renesas Electronics Corporation | 48-LFQFP (7x7) | 29 | DMA LVD POR PWM WDT | 128 KB | 3.6 V | 2.7 V | 32-Bit | Surface Mount | A/D 8x12b SAR D/A 2x12b | 4K x 8 | FLASH | 40 K | ARM® Cortex®-M33 | Internal | 100 MHz | -40 °C | 105 °C | CANbus EBI/EMI I2C I3C IrDA MMC/SD SCI SPI UART/USART | 48-LQFP |
