53K504 Series
Manufacturer: Rosenberger
Beta
⌘K

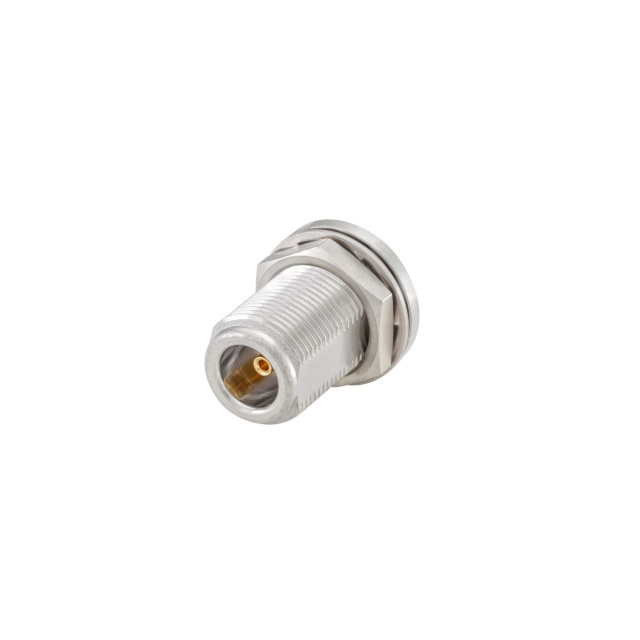

N TYPE BULKHEAD JACK
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Body Finish | Dielectric Material | Body Material | Fastening Type | Housing Color | Cable Group | Mounting Feature | Shield Termination | Frequency - Max [Max] | Mounting Type | Contact Termination | Impedance | Number of Ports | Connector Style | Connector Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | -25 °C | 110 °C | 500 V | Gold | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Threaded | Silver | RG-401 (.250" Semi Rigid) | Bulkhead - Front Side Nut | Solder | 11 GHz | Panel Mount | Solder | 50 Ohms | 1 | N Type | Female Socket Jack | Beryllium Copper |
