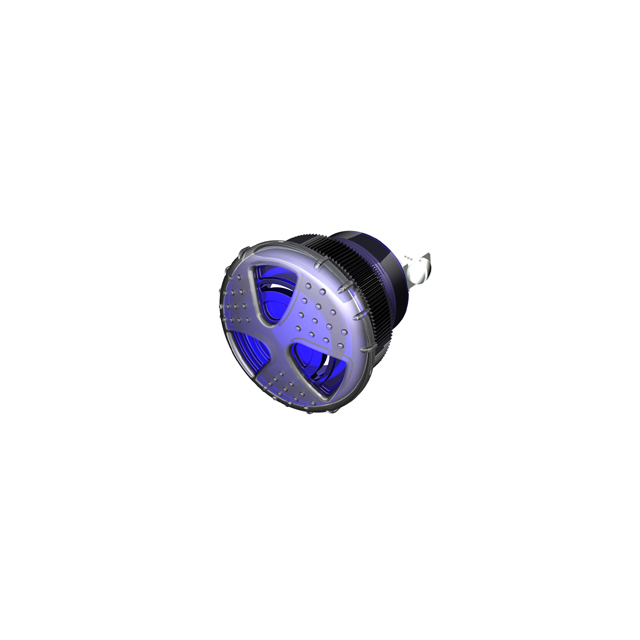

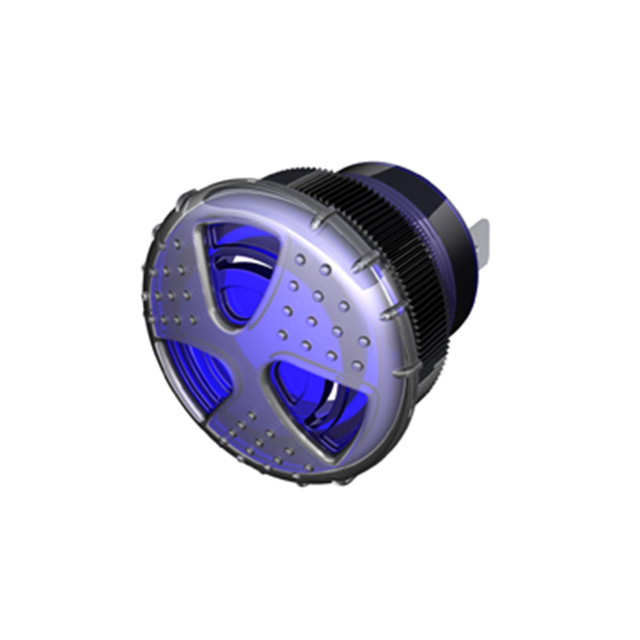

TLHC-V88B Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 35.81MM PNL MNT
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Input Type | Port Location | Ingress Protection | Sound Pressure Level (SPL) | Frequency | Operating Mode | Voltage Range [Max] | Voltage Range [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Termination | Termination | Termination | Approval Agency | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Driver Circuitry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 1.41 in | 35.81 mm | DC | Top | IP68 - Dust Tight Waterproof | 103 dB | 2.9 kHz | Single Tone | 30 V | 9 V | 1.25 " | 31.75 mm | Panel Mount | Quick Connect Tab | 0.25 " | 6.35 mm | UL UR | 50 mA | 110 mA | Indicator Internally Driven |
 Floyd Bell Inc | 1.41 in | 35.81 mm | DC | Top | IP68 - Dust Tight Waterproof | 103 dB | 2.9 kHz | Single Tone | 30 V | 9 V | 1.25 " | 31.75 mm | Panel Mount | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | UL UR | 50 mA | 110 mA | Indicator Internally Driven |
