CT8131 Series

Catalog

INTEGRATED DIGITAL OMNIPOLAR, TM

Part	Sensing Range	Package / Case	Test Condition [Max]	Test Condition [Min]	Current - Supply (Max) [Max]	Technology	Mounting Type	Output Type	Function	Polarization	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package

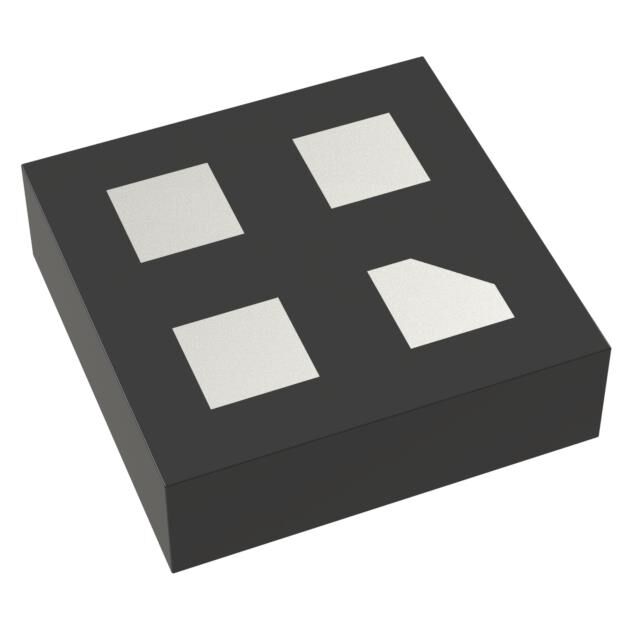

Allegro MicroSystems CT8131BV-IL4	2 mT 3 mT	4-XFLGA	125 °C	-40 °C	900 nA	Magnetoresistive	Surface Mount	Open Drain	Latch Omnipolar Switch	North Pole South Pole	1.7 V	5.5 V	20 mA	85 C	-40 ¯C	4-LGA (1.45x1.45)
Allegro MicroSystems CT8131BV-HL4	2 mT 3 mT	4-XFLGA	125 °C	-40 °C	900 nA	Magnetoresistive	Surface Mount	Open Drain	Latch Omnipolar Switch	North Pole South Pole	1.7 V	5.5 V	20 mA	125 °C	-40 °C	4-LGA (1.45x1.45)
Allegro MicroSystems CT8131BV-IS3	2 mT 3 mT	SC-59 SOT-23-3 TO-236-3	125 °C	-40 °C	900 nA	Magnetoresistive	Surface Mount	Open Drain	Latch Omnipolar Switch	North Pole South Pole	1.7 V	5.5 V	3 mA	125 °C	-40 °C	SOT-23-3
Allegro MicroSystems CT8131BV-HS3	2 mT 3 mT	SC-59 SOT-23-3 TO-236-3	125 °C	-40 °C	5 µA	Magnetoresistive	Surface Mount	Open Drain	Latch Omnipolar Switch	North Pole South Pole	1.7 V	5.5 V	20 mA	125 °C	-40 °C	SOT-23-3
