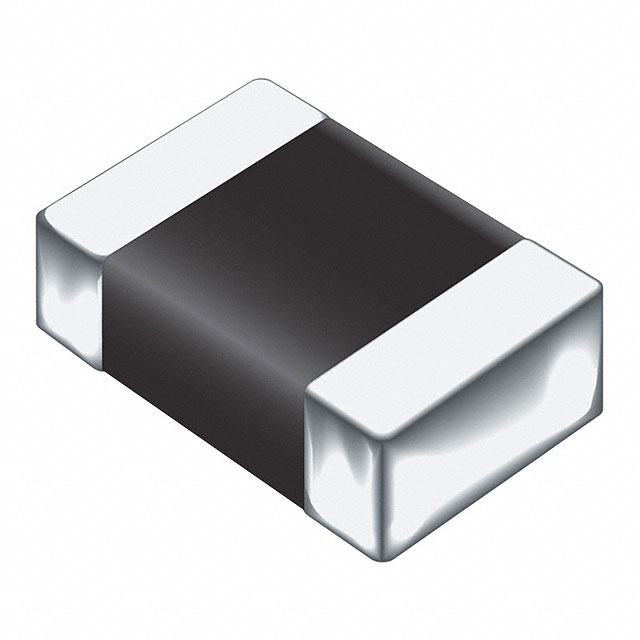

CGA0805 Series
Manufacturer: Bourns Inc.
Beta
⌘K
TVS VARISTOR, 14 V, 18 V, CHIPGUARD AUTOMOTIVE MLA SERIES, 44 V, 0805 [2012 METRIC]
| Part | Energy | Operating Temperature [Max] | Operating Temperature [Min] | Maximum DC Volts [Max] | Package / Case | Grade | Mounting Type | Maximum AC Volts [Max] | Varistor Voltage (Max) [Max] | Capacitance @ Frequency | Varistor Voltage (Min) [Min] | Qualification | Current - Surge | Varistor Voltage (Typ) | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.3 J | 125 °C | -55 °C | 18 V | 0805 | Automotive | MLCV Surface Mount | 14 V | 25.2 V | 1 kHz 350 pF | 19.8 V | AEC-Q200 | 120 A | 22.5 V | 1 |
Bourns Inc. | 0.1 J | 125 °C | -55 °C | 22 V | 0805 | Automotive | MLCV Surface Mount | 17 V | 34 V | 100 pF | 25 V | AEC-Q200 | 30 A | 29.5 V | 1 |
Bourns Inc. | 0.4 J | 125 °C | -55 °C | 26 V | 0805 | Automotive | MLCV Surface Mount | 20 V | 37.3 V | 220 pF | 29.7 V | AEC-Q200 | 80 A | 33.5 V | 1 |
Bourns Inc. | 0.3 J | 125 °C | -55 °C | 31 V | 0805 | Automotive | MLCV Surface Mount | 25 V | 43.9 V | 1 kHz 250 pF | 35.1 V | AEC-Q200 | 80 A | 39.5 V | 1 |
