EB3-03 Series
Manufacturer: Adam Tech
Beta
⌘K

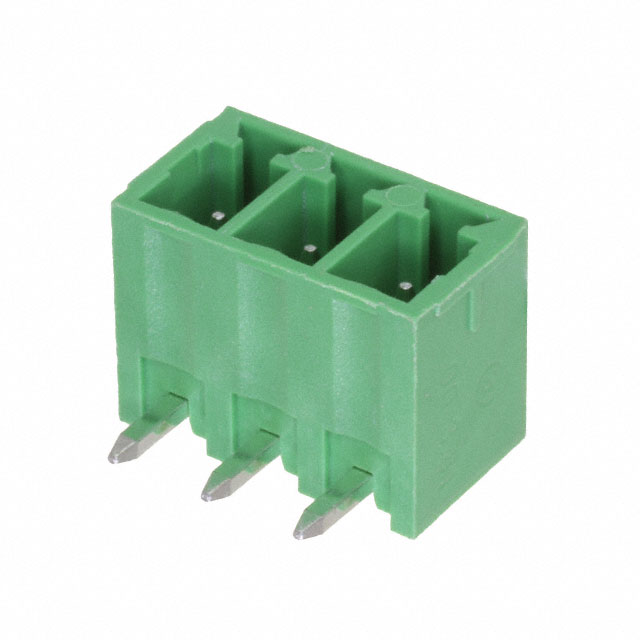

EURO BLOCK 3P
| Part | Housing Material | Contact Material | Insulation Height | Insulation Height | Contact Tail Length | Contact Tail Length | Material Flammability Rating | Termination Style | Positions Per Level | Mounting Type | Pitch | Pitch | Current - UL | Color | Contact Mating Finish | Voltage - UL | Operating Temperature [Max] | Operating Temperature [Min] | Number of Levels | Header Orientation | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Thermoplastic | Copper Alloy | 0.283 in | 7.19 mm | 0.138 in | 3.5 mm | UL94 V-0 | Solder | 3 | Through Hole | 3.81 mm | 0.15 in | 10 A | Green | Tin | 300 V | 115 °C | -40 C | 1 | 90° Right Angle | Header Male Pins Shrouded (4 Side) |
