170480 Series
Manufacturer: Molex
Beta
⌘K

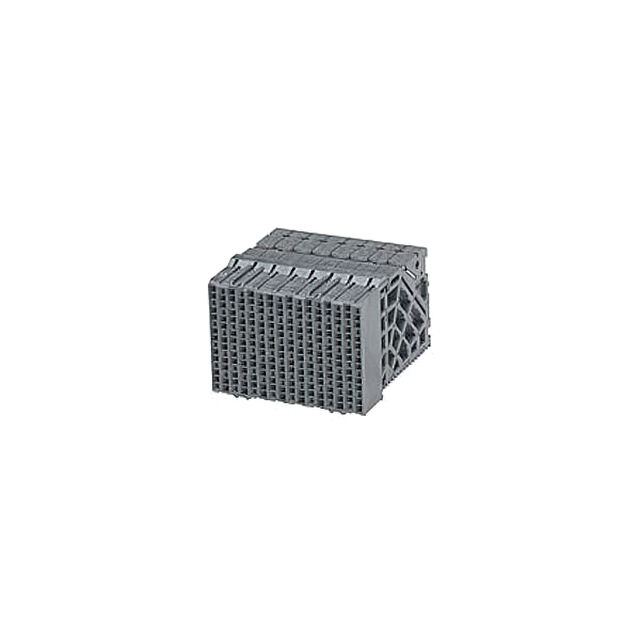

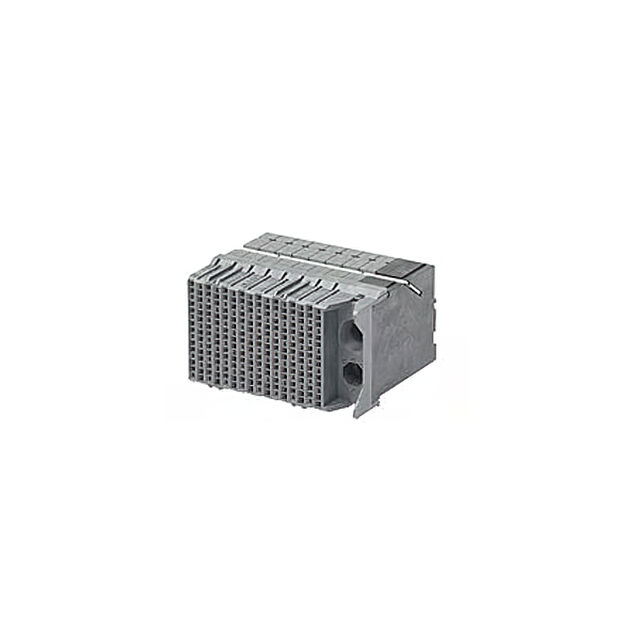

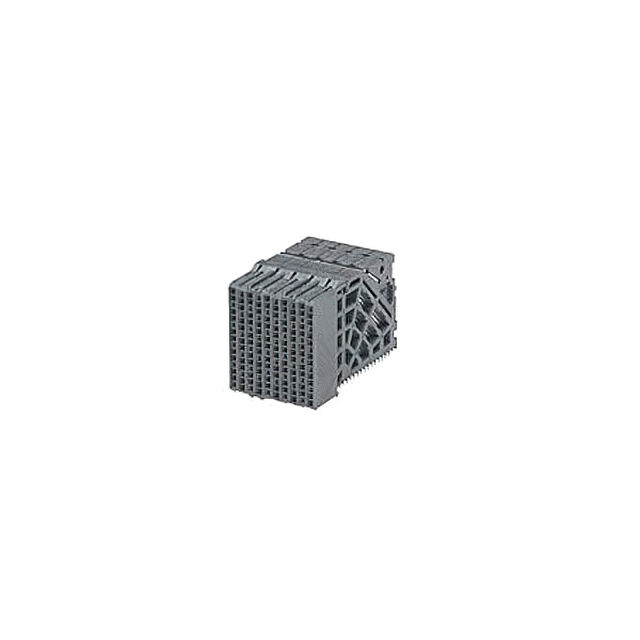

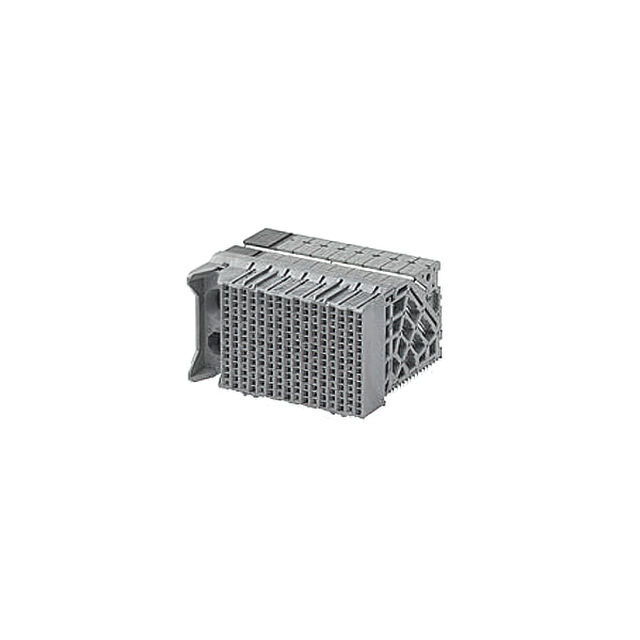

IMPACT 85 OHM PLUS 5 PAIR RIGHT-ANGLE DAUGHTERCARD, LEFT GUIDED, 12 COLUMNS, 180 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD FREE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Material Flammability Rating | Number of Rows | Color | Number of Columns | Termination | Number of Positions | Mounting Type | Connector Style | Contact Layout, Typical | Contact Finish Thickness | Contact Finish Thickness | Features | Connector Type | Number of Positions Loaded | Contact Finish | Number of Positions [custom] | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | -55 C | 85 °C | 30 VDC | UL94 V-0 | 15 | Gray | 12 | Press-Fit | 180 | Board Edge Right Angle Through Hole | Impact Guide Left | 60 Differential Pairs | 30 Áin | 0.76 Ám | Board Guide | Receptacle Female Sockets | All | Gold | ||
 Molex | -55 C | 85 °C | 30 VDC | UL94 V-0 | 15 | Gray | 12 | Press-Fit | 180 | Board Edge Right Angle Through Hole | 60 Differential Pairs | 30 Áin | 0.76 Ám | Board Guide | Receptacle Female Sockets | All | Gold | |||
 Molex | -55 C | 85 °C | 30 VDC | UL94 V-0 | 15 | Gray | 16 | Press-Fit | Board Edge Right Angle Through Hole | Impact Guide Left | 80 Differential Pairs | 30 Áin | 0.76 Ám | Board Guide | Receptacle Female Sockets | All | Gold | 240 | ||
 Molex | 15 | Gray | 10 | Press-Fit | 150 | Board Edge Right Angle Through Hole | Impact Guide Left | 30 Áin | 0.76 Ám | Board Guide | Receptacle Female Sockets | All | Gold | 50 Differential Pairs | ||||||
 Molex | -55 C | 85 °C | 30 VDC | UL94 V-0 | 15 | Gray | 16 | Press-Fit | Board Edge Right Angle Through Hole | 80 Differential Pairs | 30 Áin | 0.76 Ám | Board Guide | Receptacle Female Sockets | All | Gold | 240 | |||
 Molex | -55 C | 85 °C | 30 VDC | UL94 V-0 | 15 | Gray | 16 | Press-Fit | Board Edge Right Angle Through Hole | Impact | 80 Differential Pairs | 30 Áin | 0.76 Ám | Receptacle Female Sockets | All | Gold | 240 | |||
 Molex | -55 C | 85 °C | 30 VDC | UL94 V-0 | 15 | Gray | 10 | Press-Fit | 150 | Board Edge Right Angle Through Hole | Impact | 30 Áin | 0.76 Ám | Receptacle Female Sockets | All | Gold | 50 Differential Pairs | |||
 Molex | -55 C | 85 °C | 30 VDC | UL94 V-0 | 15 | Gray | 12 | Press-Fit | 180 | Board Edge Right Angle Through Hole | Impact | 60 Differential Pairs | 30 Áin | 0.76 Ám | Receptacle Female Sockets | All | Gold |
