APR58 Series

Manufacturer: OptiFuse

Catalog

FUSE AUTO 500MA 58VDC BLADE ATO

Part	DC Cold Resistance	Melting I˛t	Color	Breaking Capacity @ Rated Voltage	Fuse Type	Current Rating (Amps)	Approval Agency	Package / Case	Response Time	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - DC	Mounting Type	Melting I²t

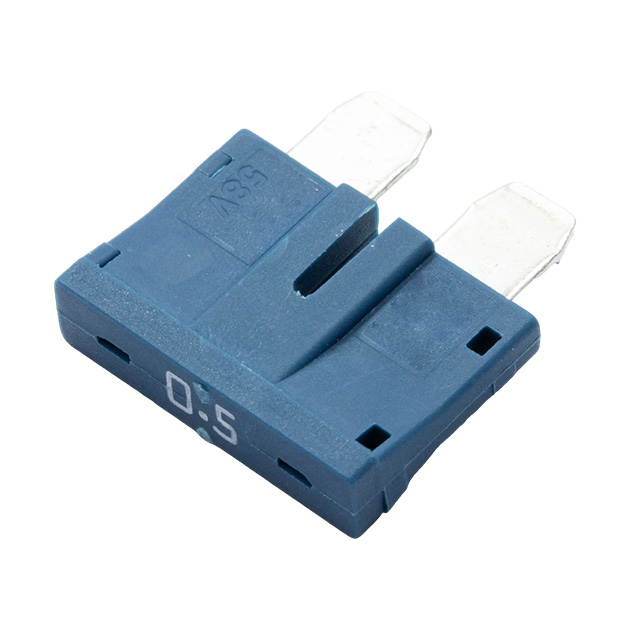

OptiFuse APR58-UL-500MA	150 mOhms	0.3	Dark Blue	1 kA	Automotive	0.5 A	cURus UL 248	Blade ATO/ATC	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	58 VDC	Requires Holder	0.3

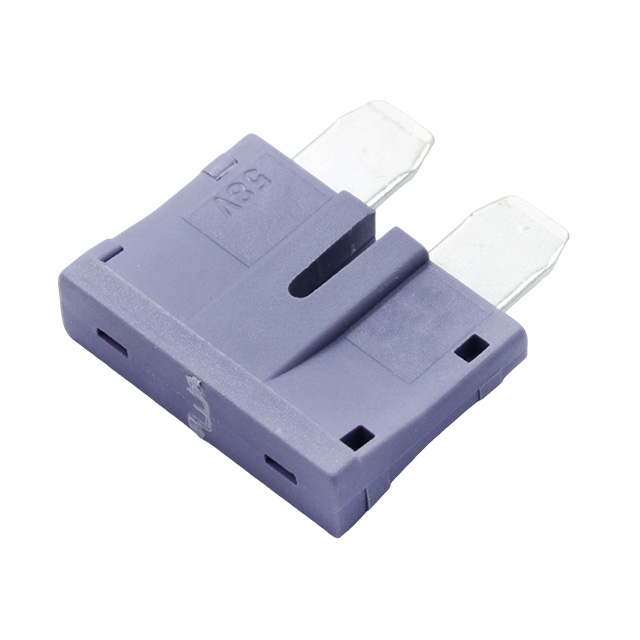

OptiFuse APR58-UL-3A	0.11 Ohms		Violet	1 kA	Automotive	3 A	cURus UL 248	Blade ATO/ATC	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	58 VDC	Requires Holder

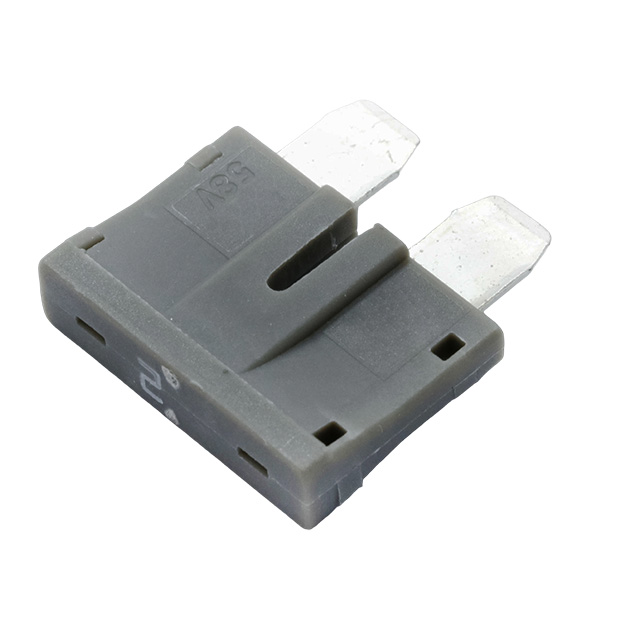

OptiFuse APR58-UL-2A	0.12 Ohms		Gray	1 kA	Automotive	2 A	cURus UL 248	Blade ATO/ATC	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	58 VDC	Requires Holder	9.6 I²t

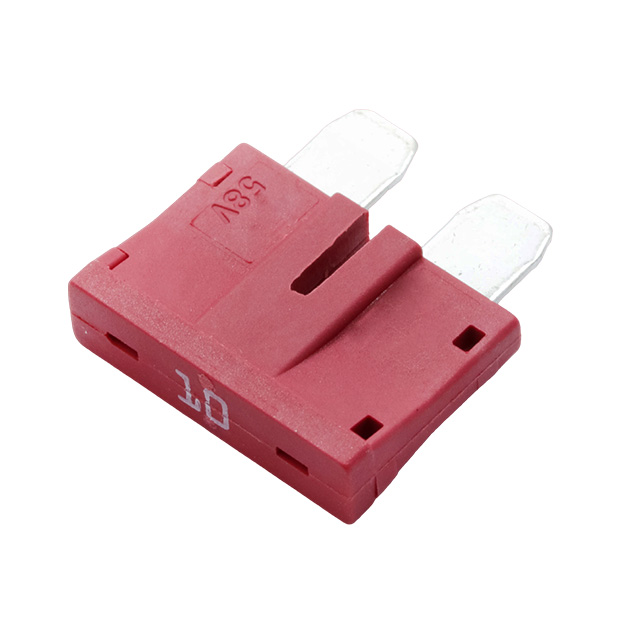

OptiFuse APR58-UL-10A	0.09 Ohms		Red	1 kA	Automotive	10 A	cURus UL 248	Blade ATO/ATC	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	58 VDC	Requires Holder	210

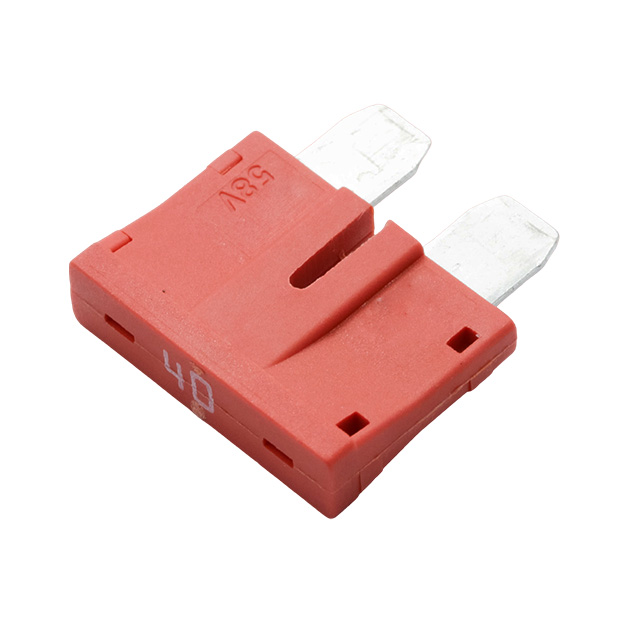

OptiFuse APR58-UL-40A	0.07 Ohms			1 kA	Automotive	40 A	cURus UL 248	Blade ATO/ATC	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	58 VDC	Requires Holder	3200 I²t

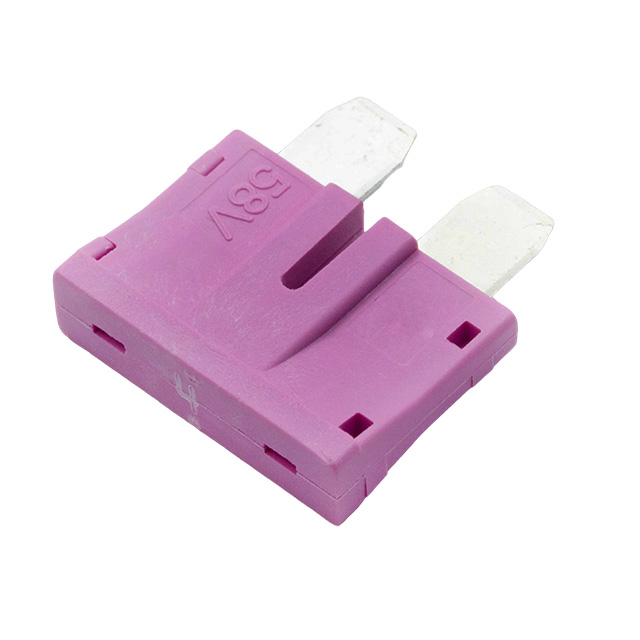

OptiFuse APR58-UL-4A	0.11 Ohms		Pink	1 kA	Automotive	4 A	cURus UL 248	Blade ATO/ATC	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	58 VDC	Requires Holder	36.8 I²t
