BUCHANAN 6 Series Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN BARRIER STRIP 4CIRC 0.375"
| Part | Voltage Rating | Color | Number of Circuits | Pitch | Pitch | Barrier Type | Number of Rows | Number of Wire Entries | Terminal Block Type | Top Termination | Bottom Termination | Current Rating (Amps) | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Operating Temperature | Material Flammability Rating | Material - Insulation | Terminal Screw Material | Terminal Screw Finish | Features | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

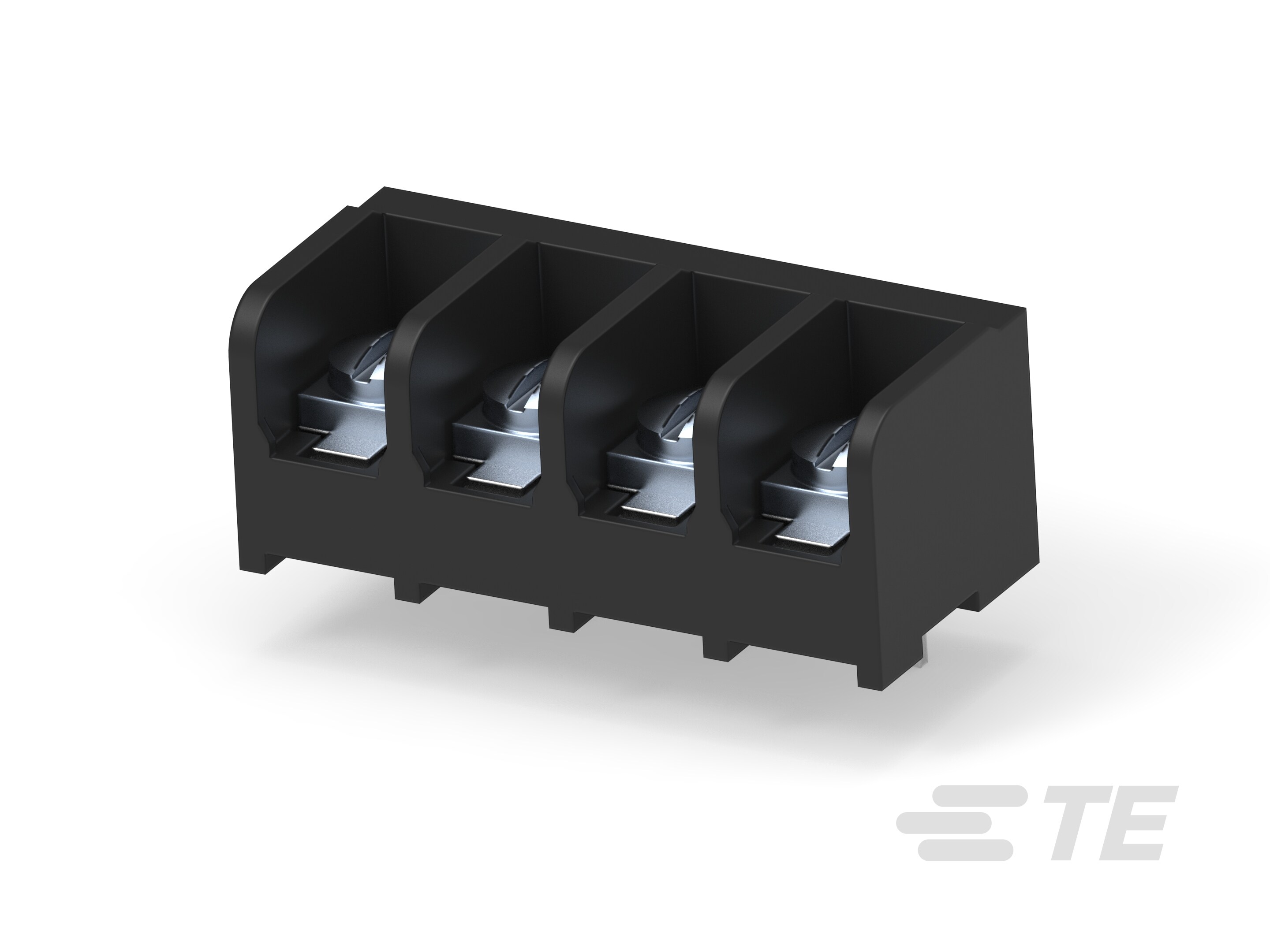

 TE Connectivity AMP Connectors | 300 VDC | Black | 4 | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 4 | Barrier Block | Screws | PC Pin | 25 A | 22 AWG | 12 AWG | ||||||||
 TE Connectivity AMP Connectors | 300 VDC | Black | 16 | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 16 | Barrier Block | Screws with Captive Plate | PC Pin | 25 A | 22 AWG | 12 AWG | Through Hole | 105 C | UL94 V-0 | Thermoplastic | Steel | Clear Chromate Zinc | ||

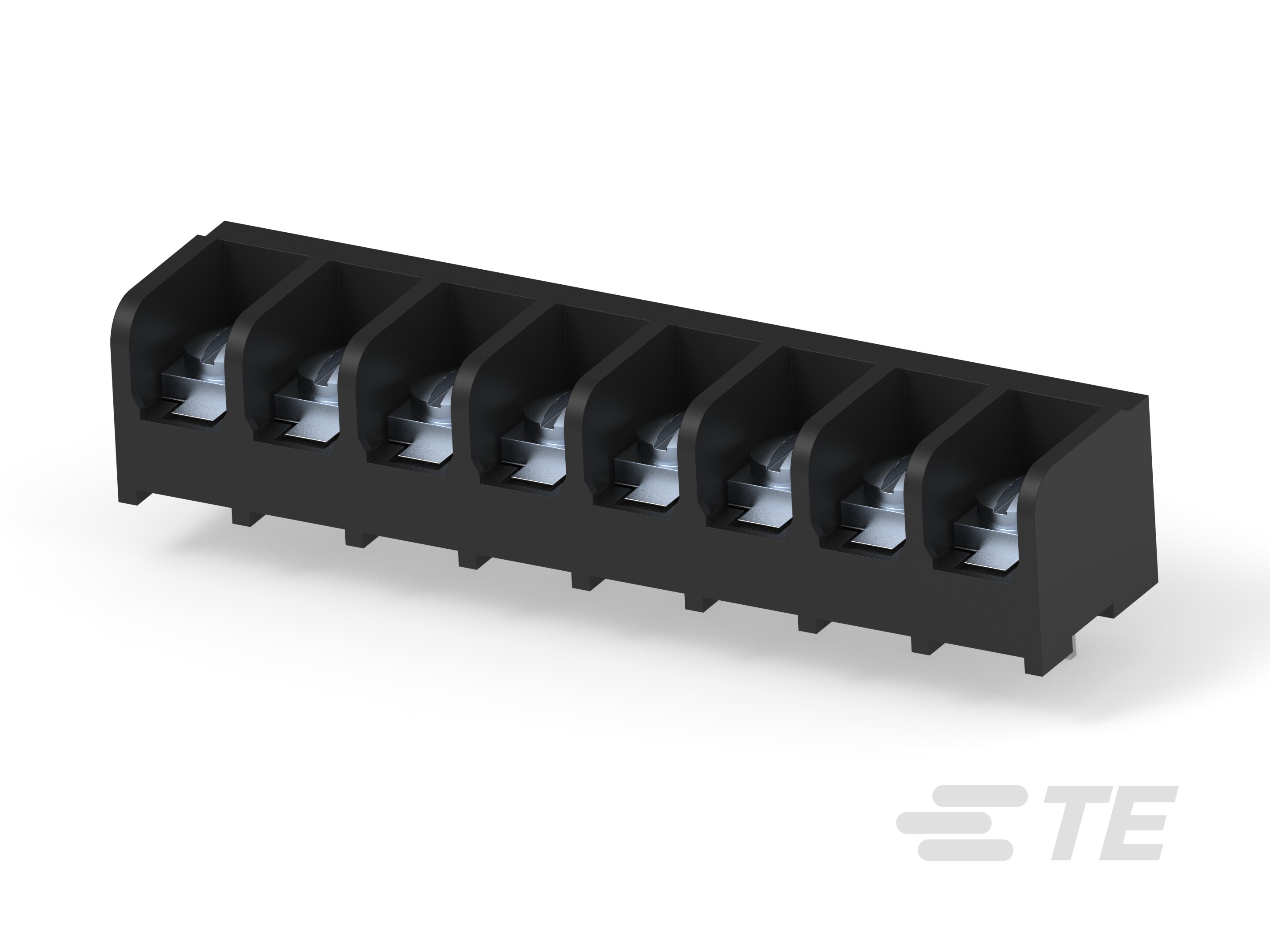

 TE Connectivity AMP Connectors | 300 VDC | Black | 8 | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 8 | Barrier Block | Screws | PC Pin | 25 A | 22 AWG | 12 AWG | ||||||||

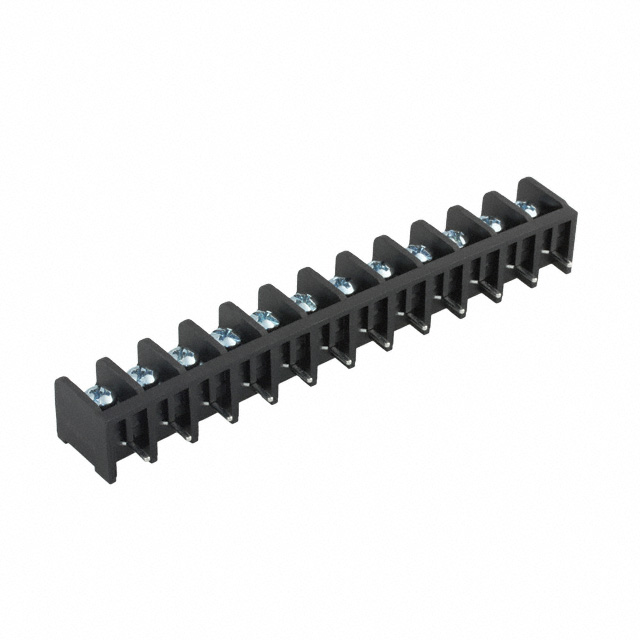

 TE Connectivity AMP Connectors | 300 VDC | Black | 12 | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 12 | Barrier Block | Screws with Captive Plate | PC Pin | 25 A | 22 AWG | 12 AWG | Through Hole | 105 C | UL94 V-0 | Thermoplastic | Steel | Clear Chromate Zinc | ||
 TE Connectivity AMP Connectors | 300 VDC | Black | 2 | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 2 | Barrier Block | Screws with Captive Plate | PC Pin | 25 A | 22 AWG | 12 AWG | Flange | |||||||
TE Connectivity AMP Connectors | 300 VDC | Black | 2 | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 2 | Barrier Block | Screws | PC Pin | 25 A | 22 AWG | 12 AWG | Positions Stamped | |||||||

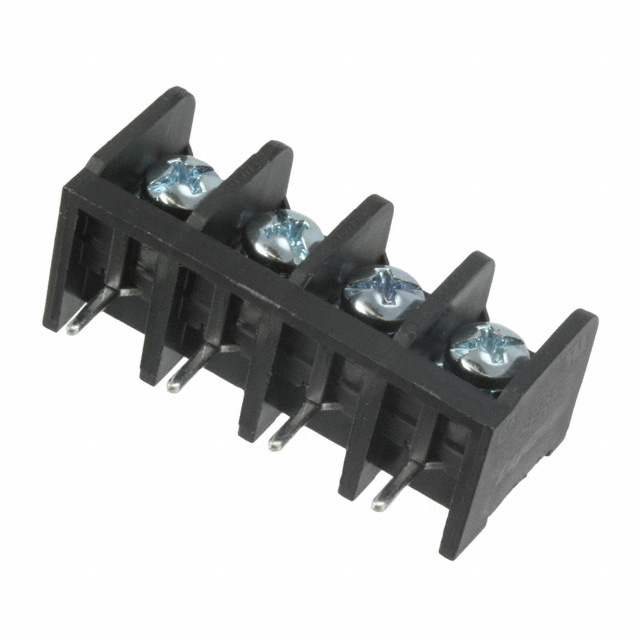

 TE Connectivity AMP Connectors | 300 VDC | Black | 4 | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 4 | Barrier Block | Screws | PC Pin | 25 A | 22 AWG | 12 AWG | ||||||||
 TE Connectivity AMP Connectors | 300 VDC | Black | 8 | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 8 | Barrier Block | Screws with Captive Plate | PC Pin | 25 A | 22 AWG | 12 AWG | Chassis Panel Through Hole | 105 C | UL94 V-0 | Thermoplastic | Steel | Clear Chromate Zinc | Flange | |
 TE Connectivity AMP Connectors | 300 VDC | Black | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 9 | Barrier Block | Screws | PC Pin | 25 A | 22 AWG | 12 AWG | Through Hole | 105 C | UL94 V-0 | Thermoplastic | Steel | Clear Chromate Zinc | 9 | ||
 TE Connectivity AMP Connectors | 300 VDC | Black | 4 | 9.53 mm | 0.375 in | 3 Wall (Tri) | 1 | 4 | Barrier Block | Screws with Captive Plate | PC Pin | 25 A | 22 AWG | 12 AWG | Through Hole | 105 C | UL94 V-0 | Thermoplastic | Steel | Clear Chromate Zinc |
