09300160 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, PG21 DUAL TOP ENTRY, 4 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY

Part	Ingress Protection	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Housing Finish	Lock Location	Connector Type	Housing Color	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Material	Features	Size / Dimension [y]	Size / Dimension [z]
HARTING 09300160462	IP65 - Dust Tight Water Resistant	Top Entry Dual	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Powder Coated	Locking Clip (2) on Base Bottom	Hood	Gray	PG21	125 °C	-40 C	16 B	Aluminum Die Cast

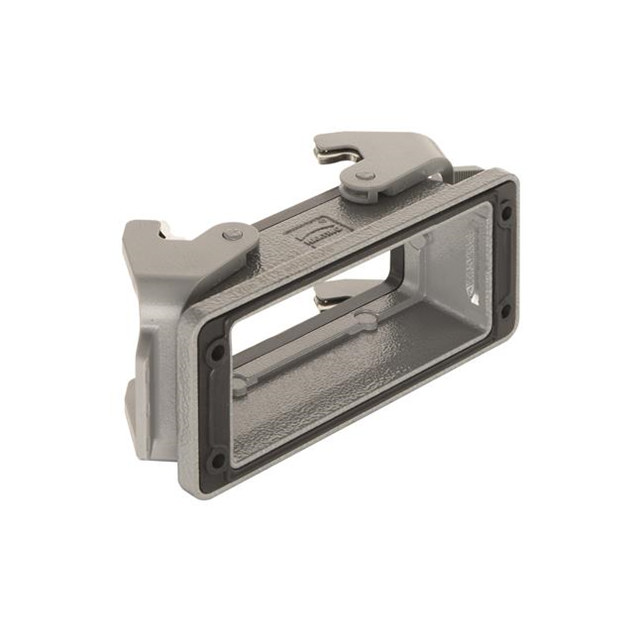

HARTING 09300160392	IP66 - Dust Tight Water Resistant	Bottom Entry							Powder Coated	Locking Clip (2) on Base Bottom	Base - Panel Mount	Gray		125 °C	-40 C	16 B	Aluminum Die Cast
HARTING 09300160531	IP65 - Dust Tight Water Resistant	Side Entry	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Powder Coated	Locking Clip (2) on Hood	Hood	Gray	PG29	125 °C	-40 C	16 B	Aluminum Die Cast

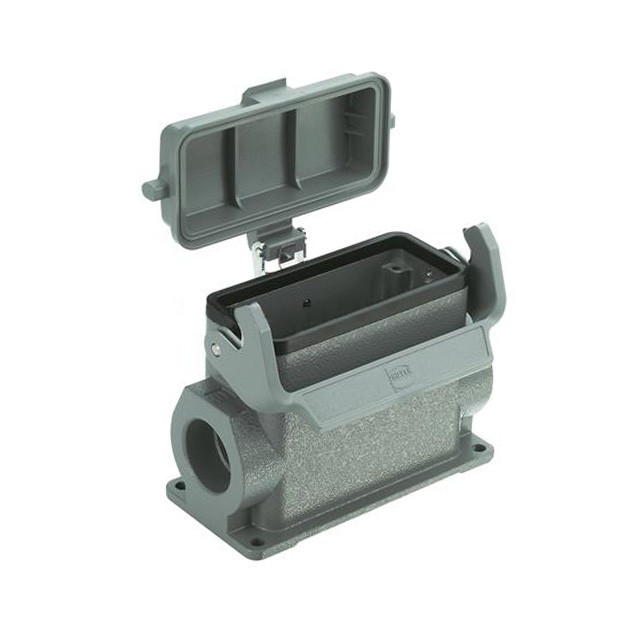

HARTING 09300160255	IP65 - Dust Tight Water Resistant	Side Entry	4.606 in	57 mm	3.181 in	80.8 mm	2.244 "	117 mm	Powder Coated	Locking Clip (1) on Base Bottom	Base - Box Mount	Gray	PG21	125 °C	-40 C	16 B	Aluminum Die Cast	Cover

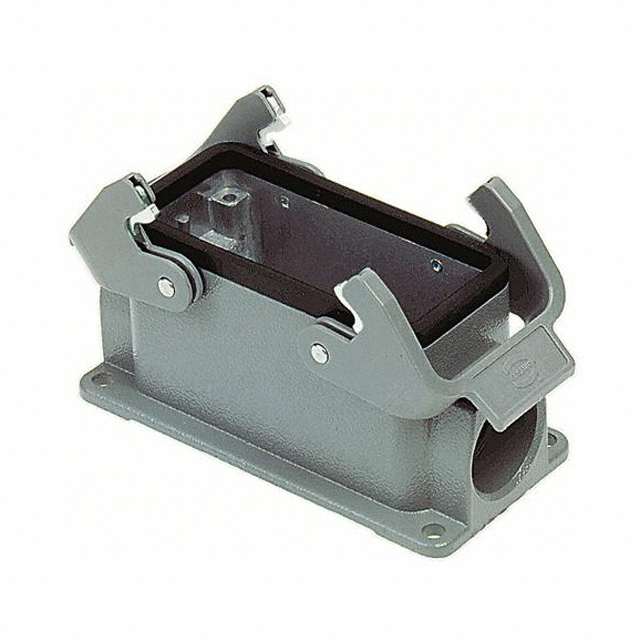

HARTING 09300160231	IP65 - Dust Tight Water Resistant	Side Entry	4.606 in	57 mm	3.181 in	80.8 mm	2.244 "	117 mm	Powder Coated	Locking Clip (2) on Base Bottom	Base - Box Mount	Gray	PG29	125 °C	-40 C	16 B	Aluminum Die Cast
HARTING 09300160296	IP65 - Dust Tight Water Resistant	Side Entry	4.606 in	57 mm	3.181 in	80.8 mm	2.244 "	117 mm	Powder Coated	Locking Clip (1) on Base Bottom	Base - Box Mount	Gray	PG29	125 °C	-40 C	16 B	Aluminum Die Cast

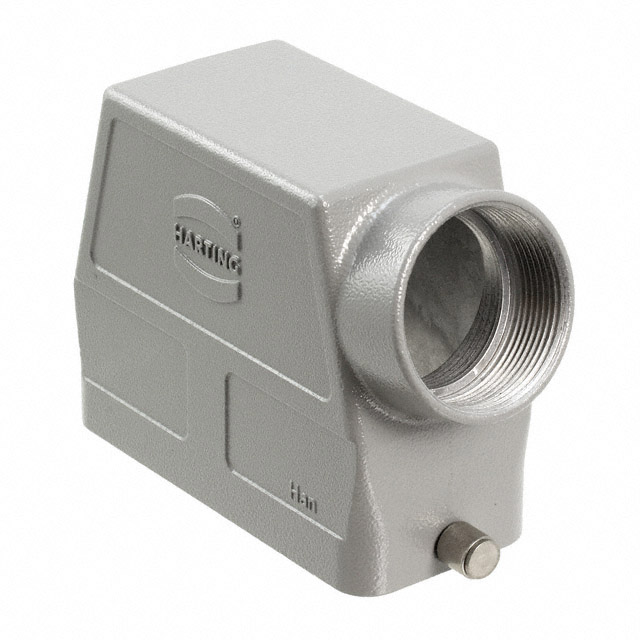

HARTING 09300160541	IP65 - Dust Tight Water Resistant	Side Entry	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Powder Coated	Locking Clip (1) on Base Bottom	Hood	Gray	PG29	125 °C	-40 C	16 B	Aluminum Die Cast
HARTING 09300160481	IP65 - Dust Tight Water Resistant	Top Entry	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Powder Coated	Locking Clip (1) on Hood	Hood	Gray	PG29	125 °C	-40 C	16 B	Aluminum Die Cast

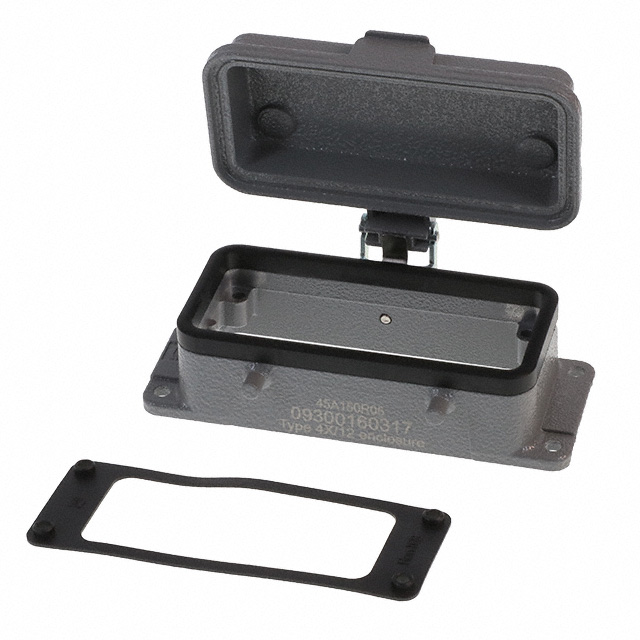

HARTING 09300160317	IP65 - Dust Tight Water Resistant	Bottom Entry	4.449 "		1.138 "		1.709 "	113 mm	Powder Coated	Locking Clip (2) on Hood	Base - Panel Mount	Gray		125 °C	-40 C	16 B	Aluminum Die Cast	Cover	43.4 mm	28.9 mm

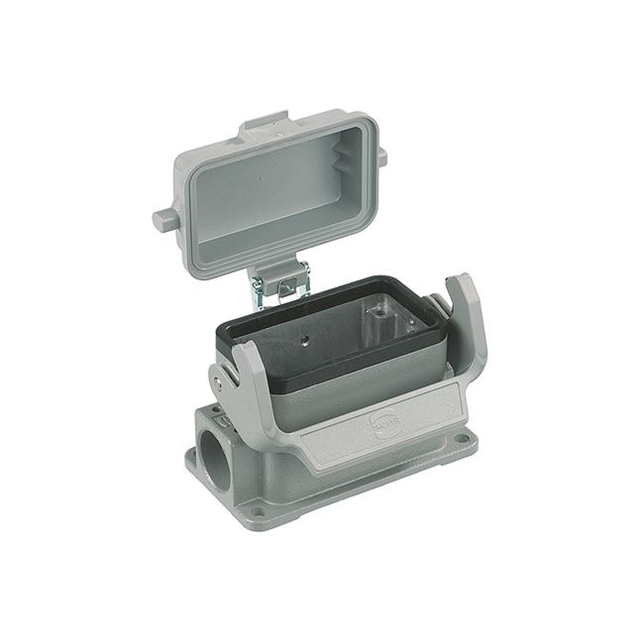

HARTING 09300160295	IP65 - Dust Tight Water Resistant	Side Entry	4.606 in	57 mm	3.181 in	80.8 mm	2.244 "	117 mm	Powder Coated	Locking Clip (1) on Base Bottom	Base - Box Mount	Gray	PG21	125 °C	-40 C	16 B	Aluminum Die Cast
