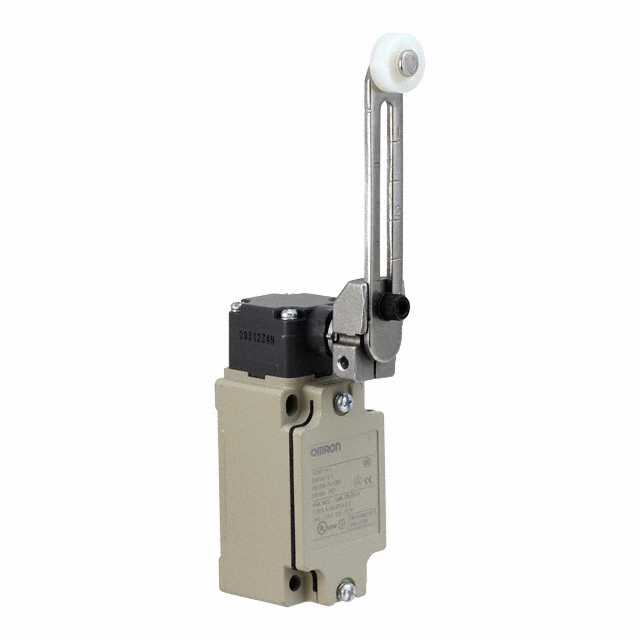

D4B-2116 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 120V
| Part | Pretravel | Electrical Life | Current Rating (Amps) | Actuator Type | Operating Position | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Circuit | Overtravel [custom] | Mounting Type | Switch Function | Voltage Rating - AC | Release Force | Differential Travel | Operating Force | Voltage Rating - DC | Ingress Protection | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 21 ° | 500000 Cycles | 6 A 10 A | Side Rotary Adjustable Roller | 21 ° | 80 °C | -40 C | Screw Terminal | SPDT (DB/DM) | 50 ° | Chassis Mount | On-Mom | 120 V | 150 gf | 12 ° | 960 gf | 30 V | IP67 - Dust Tight Waterproof | 30000000 Cycles |
