M2042ES Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 4PDT 6A 125V
| Part | Actuator Material | Electrical Life | Actuator Type | Bushing Thread | Panel Cutout Dimensions [diameter] | Features | Voltage Rating - AC | Actuator Length [x] | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Illumination | Mounting Type | Voltage Rating - DC | Switch Function | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

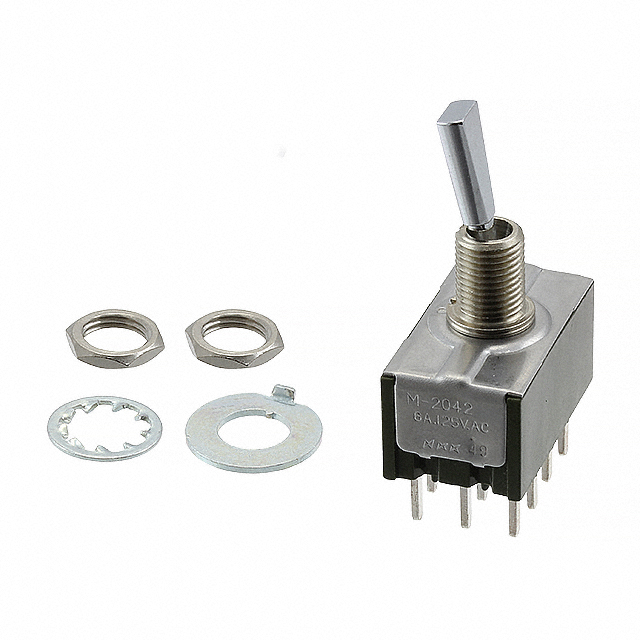

 NKK Switches | Brass Chrome Plated | 25000 Steps | Flatted | 1/4-40 | 6.5 mm | Epoxy Sealed Terminals | 125 V | 11.4 mm | 4PDT | 85 °C | -30 ░C | 4 A 6 A | Non-Illuminated | Panel Mount | 30 V | On-On | PC Pin |

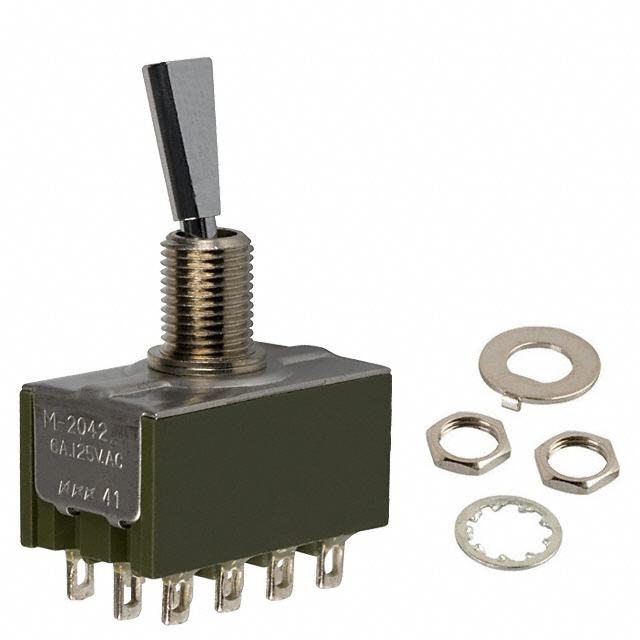

 NKK Switches | Brass Chrome Plated | 25000 Steps | Flatted | 1/4-40 | 6.5 mm | Epoxy Sealed Terminals | 125 V | 11.4 mm | 4PDT | 85 °C | -30 ░C | 4 A 6 A | Non-Illuminated | Panel Mount | 30 V | On-On | Solder Lug |
 NKK Switches | Brass | 25000 Steps | Flatted | 1/4-40 | 6.5 mm | Black Actuator | 125 V | 11.4 mm | 4PDT | 85 °C | -30 ░C | 4 A 6 A | Non-Illuminated | Panel Mount | 30 V | On-On | Solder Lug |
