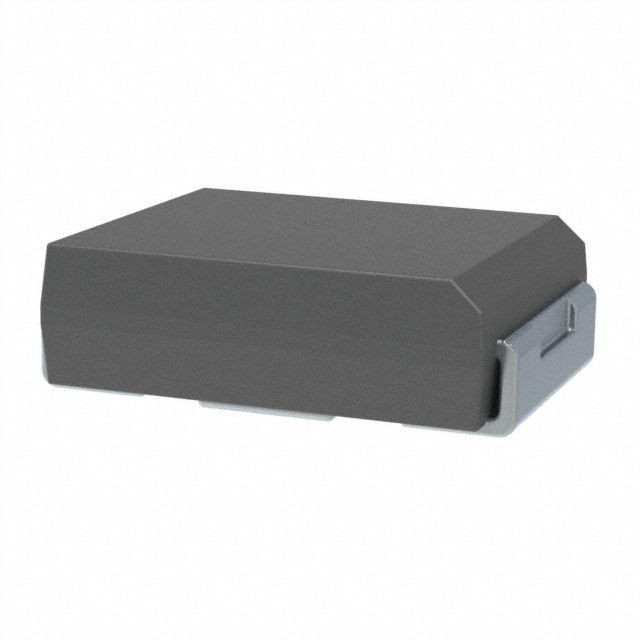

T520T Series

Manufacturer: KEMET

Catalog

CAP TA POLYMER 100UF 2.5VDC 20% SMD 3528-12 ROHS COMPLIANT: NO

Part	Lifetime @ Temp.	Manufacturer Size Code	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Mounting Type	Voltage - Rated	Tolerance	Type	ESR (Equivalent Series Resistance)	Features	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET T520T107M2R5AHE070	2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	100 µF	Surface Mount	2.5 V	20 %	Molded	70 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
KEMET T520T476M004ATE070	2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	47 µF	Surface Mount	4 V	20 %	Molded	70 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
KEMET T520T476M006ATE070	2000 Hrs 2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	47 µF	Surface Mount	6.3 VDC	20 % 20 %	Molded	70 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
KEMET T520T107M2R5ATE040	2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	100 µF	Surface Mount	2.5 V	20 %	Molded	40 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
KEMET T520T336M010ATE040	2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	33 ÁF	Surface Mount	10 V	20 %	Molded	40 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
KEMET T520T156M006ATE100	2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	15 µF	Surface Mount	6.3 VDC	20 %	Molded	100 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
KEMET T520T336M008ATE070	2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	33 ÁF	Surface Mount	8 V	20 %	Molded	70 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
KEMET T520T476M006AHE070	2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	47 µF	Surface Mount	6.3 VDC	20 %	Molded	70 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
KEMET T520T107M004ATE150	2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	100 µF	Surface Mount	4 V	20 %	Molded	150 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
KEMET T520T106M12RATE150	2000 Hrs	T	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	105 ░C	10 µF	Surface Mount	12.5 V	20 %	Molded	150 mOhm	General Purpose	3528 Metric	1411	1.2 mm	0.047 "
