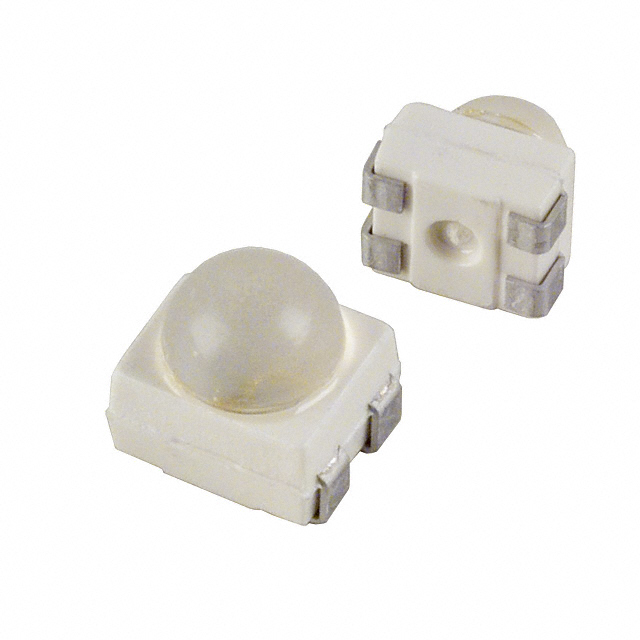

LAE65F Series

Catalog

LED AMBER CLEAR 4PLCC SMD

Part	Lens Color	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max] [z]	Millicandela Rating	Wavelength - Peak	Color	Lens Size [diameter]	Wavelength - Dominant	Package / Case	Lens Style	Lens Transparency	Voltage - Forward (Vf) (Typ)	Viewing Angle	Supplier Device Package	Current - Test	Configuration
ams-OSRAM USA INC. LA E65F-T2V2-1-2A2B+DBFA-24-3A4B-A-R33-Z	Colorless	Surface Mount	2.8 mm	3.2 mm	3.5 mm	9800 mcd	624 nm	Amber	2.4 mm Dia	617 nm	4-PLCC	Round with Domed Top	Clear	2.15 V	60 °	4-PLCC	50 mA
ams-OSRAM USA INC. LA E65F-CBEA-24-3A4B-Z	Colorless	Surface Mount	2.8 mm	3.2 mm	3.5 mm	6275 mcd	624 nm	Amber	2.6 mm Dia	617 nm	4-PLCC	Round with Domed Top	Clear	2.15 V	60 °	4-PLCC	50 mA	Standard
ams-OSRAM USA INC. LA E65F-DAFA-24-3A4B-50-R33-Z	Colorless	Surface Mount	2.8 mm	3.2 mm	3.5 mm	9250 mcd	624 nm	Amber	2.6 mm Dia	617 nm	4-PLCC	Round with Domed Top	Clear	2.15 V	60 °	4-PLCC	50 mA
