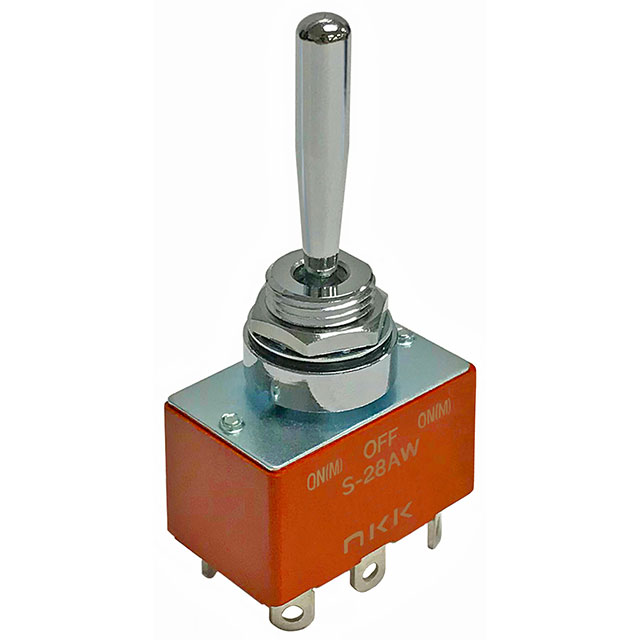

S28AW Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 15A 125V
| Part | Electrical Life | Actuator Material | Ingress Protection | Termination Style | Voltage Rating - DC | Circuit | Switch Function | Actuator Type | Mounting Type | Voltage Rating - AC | Illumination | Panel Cutout Dimensions [diameter] | Bushing Thread | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Length [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | IP67 - Dust Tight Waterproof | Solder Lug | 30 V | DPDT | Mom-Off-Mom | Standard Round | Panel Mount | 125 V | Non-Illuminated | 12.5 mm | M12 x 1 | -30 ░C | 70 °C | 30 mm | 15 A 20 A |
 NKK Switches | 25000 Steps | Brass Chrome Plated | IP67 - Dust Tight Waterproof | Solder Lug | 30 V | DPDT | Mom-Off-Mom | Standard Round | Panel Mount | 125 V | Non-Illuminated | 12.5 mm | M12 x 1 | -30 ░C | 70 °C | 45 mm | 15 A 20 A |
 NKK Switches | 25000 Steps | Brass Chrome Plated | IP67 - Dust Tight Waterproof | Quick Connect - 0.250" (6.3mm) | 30 V | DPDT | Mom-Off-Mom | Standard Round | Panel Mount | 125 V | Non-Illuminated | 12.5 mm | M12 x 1 | -30 ░C | 70 °C | 17.5 mm | 15 A 20 A |
