S5B-PH-S Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

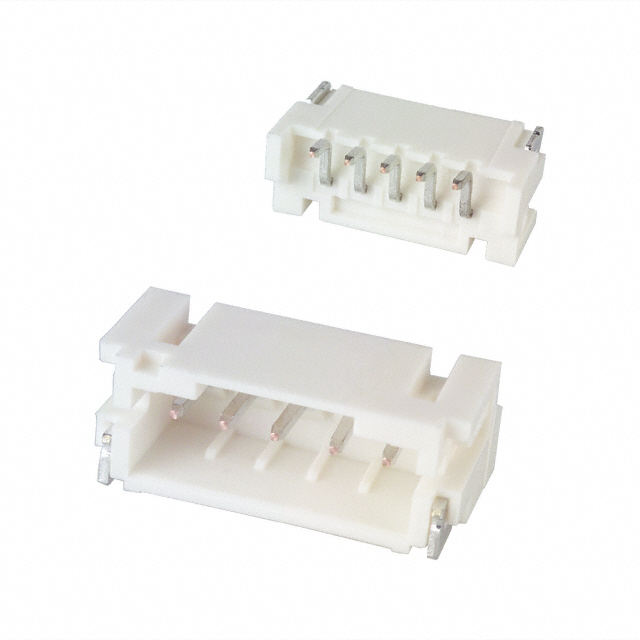

CONN HEADER SMD R/A 5POS 2MM
| Part | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Connector Type | Pitch - Mating | Pitch - Mating | Insulation Color | Shrouding | Contact Length - Mating | Contact Length - Mating | Style | Material Flammability Rating | Contact Shape | Number of Positions | Insulation Material | Current Rating (Amps) | Termination | Contact Finish - Post | Features | Number of Positions Loaded | Insulation Height | Insulation Height | Mounting Type | Fastening Type | Voltage Rating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Copper Alloy | 85 °C | -25 °C | 1 | Header | 0.079 " | 2 mm | Natural | Shrouded - 4 Wall | 0.13 in | 3.3 mm | Board to Cable/Wire | UL94 V-0 | Square | 5 | Nylon 6T Polyamide (PA6T) | 2 A | Solder | Tin | Solder Retention | All | 0.217 in | 5.51 mm | Right Angle Surface Mount | Detent Lock | 100 V | Male Pin |
