74VHC1G08 Series

Catalog

AND GATE 1-ELEMENT 2-IN CMOS 5-PIN SC-88A T/R

Part	Number of Circuits	Supplier Device Package	Supplier Device Package	Supplier Device Package	Max Propagation Delay @ V, Max CL	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Number of Inputs	Logic Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Current - Quiescent (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package

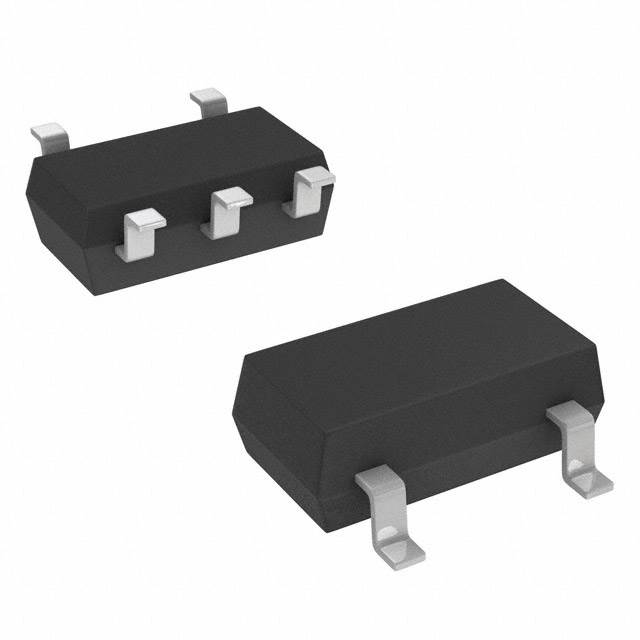

ON Semiconductor MC74VHC1G08DFT2G-F22038	1	SC-88A	SOT-353	SC-70-5	7.9 ns	0.5 V	1.65 V	8 mA	8 mA	3.85 V	1.5 V	2	AND Gate	5.5 V	2 V	Surface Mount	1 çA	-55 °C	125 °C	5-TSSOP SC-70-5 SOT-353

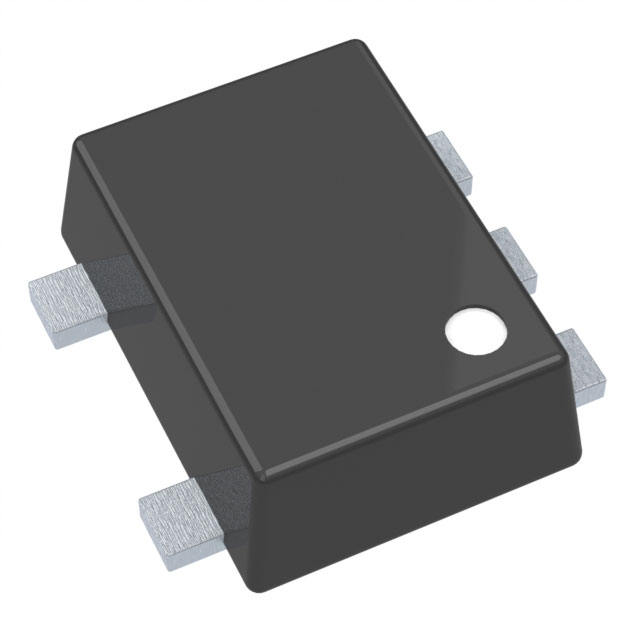

ON Semiconductor MC74VHC1G08P5T5G-L22088	1				7.9 ns	0.5 V	1.65 V	8 mA	8 mA	3.85 V	1.5 V	2	AND Gate	5.5 V	2 V	Surface Mount	1 çA	-55 °C	125 °C	SOT-953	SOT-953
