796681 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLK 3POS SIDE ENTRY 5MM PCB

Part	Screw Thread	Clamp Material - Plating	Screw Material - Plating	Torque - Screw	Torque - Screw	Contact Material - Plating	Wire Gauge [Max]	Wire Gauge [Min]	Features	Positions Per Level	Number of Levels	Color	Wire Termination	Current	Mounting Type	Pitch	Pitch	Mating Orientation	Voltage

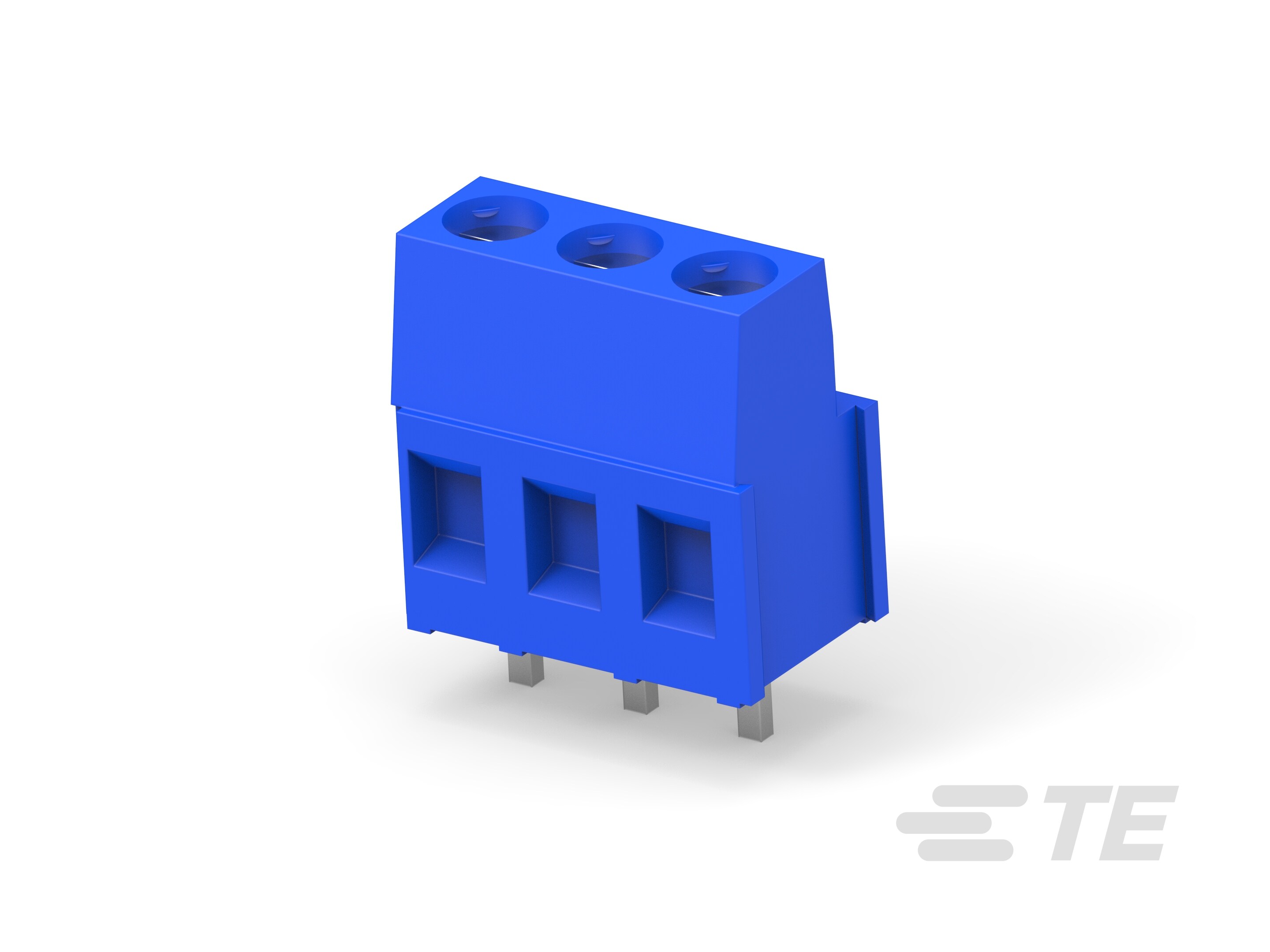

TE Connectivity AMP Connectors 796681-3	M3	Brass - Nickel Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	30 AWG	12 AWG	Interlocking (Side)	3	1	Blue	Screw - Rising Cage Clamp	17.5 A	Through Hole	0.197 in	5 mm	Horizontal with Board	300 VDC

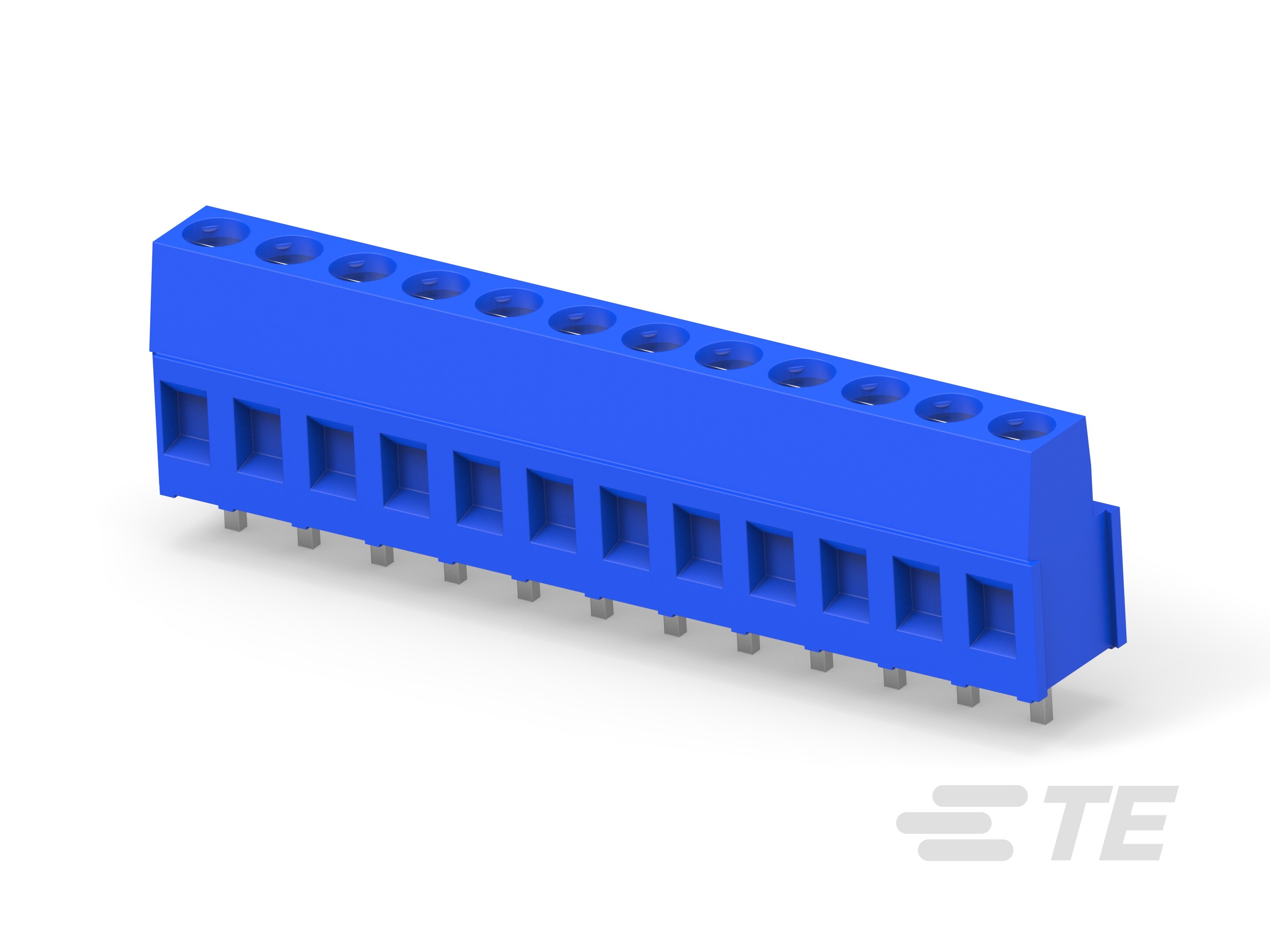

TE Connectivity AMP Connectors 1-796681-2	M3	Brass - Nickel Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	30 AWG	12 AWG	Interlocking (Side)	12	1	Blue	Screw - Rising Cage Clamp	17.5 A	Through Hole	0.197 in	5 mm	Horizontal with Board	300 VDC

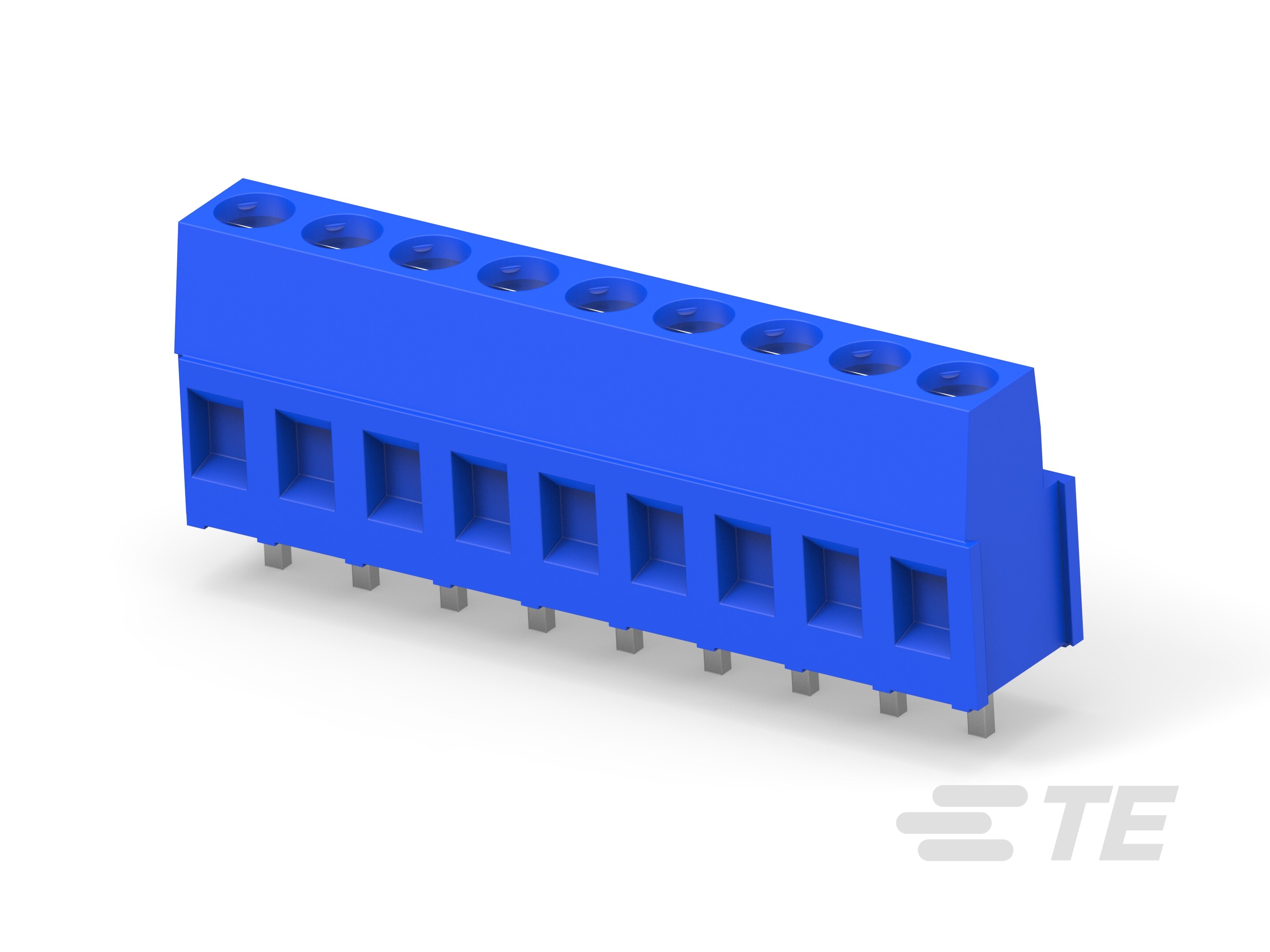

TE Connectivity AMP Connectors 796681-9	M3	Brass - Nickel Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	30 AWG	12 AWG	Interlocking (Side)	9	1	Blue	Screw - Rising Cage Clamp	17.5 A	Through Hole	0.197 in	5 mm	Horizontal with Board	300 VDC
TE Connectivity AMP Connectors 796681-2	M3	Brass - Nickel Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	30 AWG	12 AWG	Interlocking (Side)	2	1	Blue	Screw - Rising Cage Clamp	17.5 A	Through Hole	0.197 in	5 mm	Horizontal with Board	300 VDC
TE Connectivity AMP Connectors 796681-6	M3	Brass - Nickel Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	30 AWG	12 AWG	Interlocking (Side)	6	1	Blue	Screw - Rising Cage Clamp	17.5 A	Through Hole	0.197 in	5 mm	Horizontal with Board	300 VDC
TE Connectivity AMP Connectors 796681-4	M3	Brass - Nickel Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	30 AWG	12 AWG	Interlocking (Side)	4	1	Blue	Screw - Rising Cage Clamp	17.5 A	Through Hole	0.197 in	5 mm	Horizontal with Board	300 VDC
TE Connectivity AMP Connectors 796681-5	M3	Brass - Nickel Plated	Brass - Nickel Plated	7 Lb-In	0.79 Nm	Brass - Tin Plated	30 AWG	12 AWG	Interlocking (Side)	5	1	Blue	Screw - Rising Cage Clamp	17.5 A	Through Hole	0.197 in	5 mm	Horizontal with Board	300 VDC
