CRLCBSR Series

Catalog

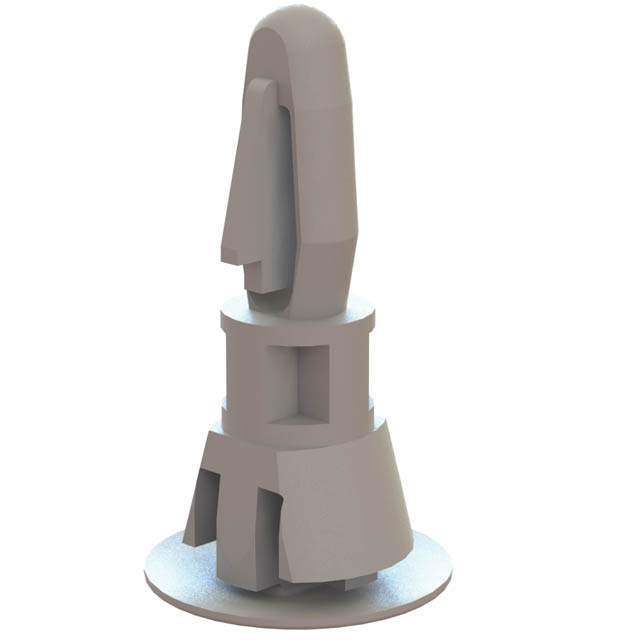

BRD SPT SNAP LOCK NYLON 3/16"

Part	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Features	Mounting Type	Between Board Height	Between Board Height	Material	Holding Type	Support Panel Thickness [custom]	Support Panel Thickness [custom]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Between Board Height	Length - Overall	Length - Overall	Length - Overall	Length - Overall
Essentra Components CRLCBSR-3-01	3.99 mm	0.157 "	Locking Reverse Mounting	Snap Lock	0.1875 in	0.188 in	Nylon	Snap Lock	1.6 mm	0.063 in	0.047 in	1.2 mm	0.8 mm	0.031 in	6 mm	0.236 in	0.689 in	17.5 mm
Essentra Components CRLCBSR-4-01	3.99 mm	0.157 "	Locking Reverse Mounting	Snap Lock	0.25 in	6.35 mm	Nylon	Snap Lock	1.6 mm	0.063 in	0.047 in	1.2 mm	0.8 mm	0.031 in	6 mm	0.236 in	0.752 in	19.1 mm
Essentra Components CRLCBSR-5-01	3.99 mm	0.157 "	Locking Reverse Mounting	Snap Lock	7.95 mm	0.313 in	Nylon	Snap Lock	1.6 mm	0.063 in	0.047 in	1.2 mm	0.8 mm	0.031 in	6 mm	0.236 in	0.815 in	20.7 mm	0.3125 in
Essentra Components CRLCBSRE-10-01	3.99 mm	0.157 "	Locking Reverse Mounting	Snap Lock	15.88 mm	0.625 in	Nylon	Snap Lock	1.6 mm	0.063 in	0.079 "	2 mm	1.2 mm	0.047 in	5.4 mm	0.213 "			5 8	1.165 "	29.6 mm
Essentra Components CRLCBSR-8-01	3.99 mm	0.157 "	Locking Reverse Mounting	Snap Lock	12.7 mm	0.5 in	Nylon	Snap Lock	1.6 mm	0.063 in	0.047 in	1.2 mm	0.8 mm	0.031 in	6 mm	0.236 in			0.5 in		25.4 mm	1 "	1 "
