9553 Series
Manufacturer: Belden Inc.
Beta
⌘K

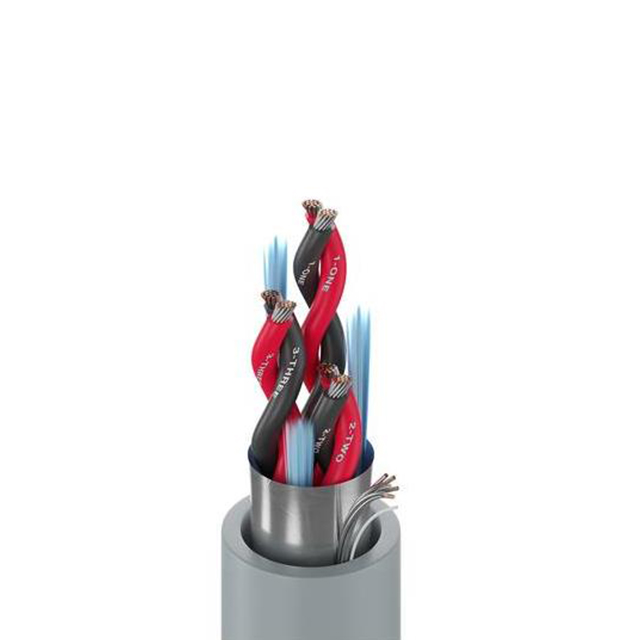

MULTI-PAIR 6COND 18AWG
| Part | Shield Material | Shield Coverage | Wire Gauge | Length | Length | Features | Number of Conductors | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Material | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 18 AWG | 304.8 m | 1000 ft | Drain Wire Rip Cord | 6 | Multi-Pair | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | Copper Tinned | Chrome | 30 AWG | 19 | Foil | Instrumentation | -30 ░C | 105 ░C | 0.411 in | 10.44 mm |
