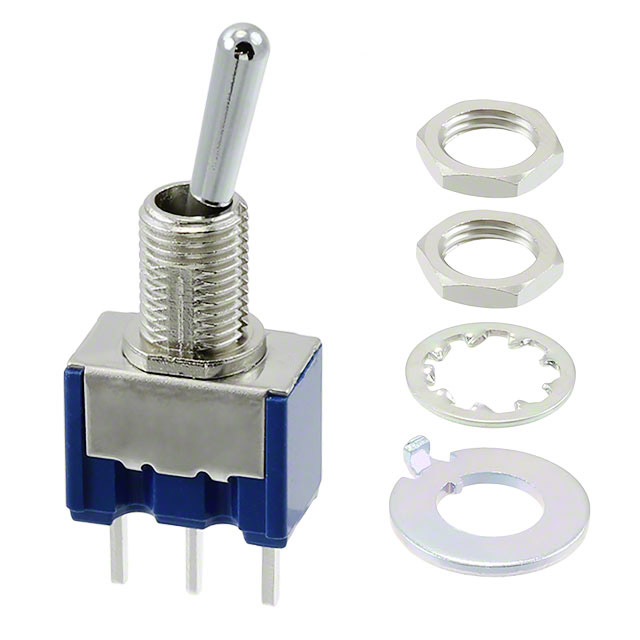

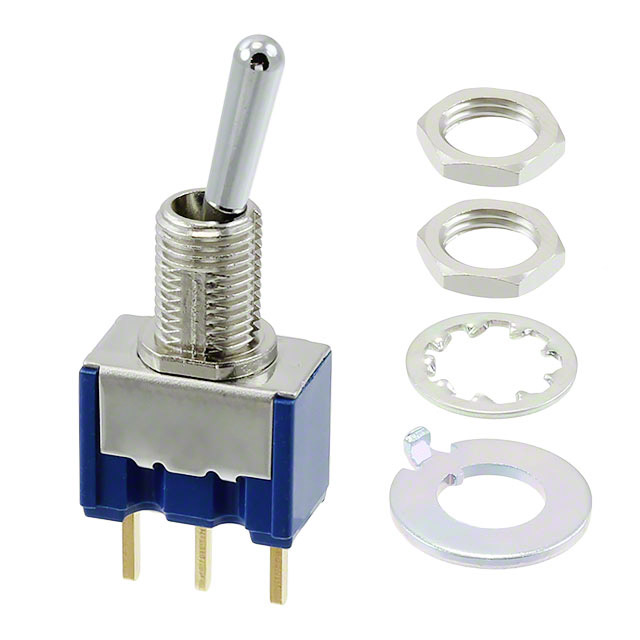

8A1012 Series
Manufacturer: Nidec Components Corporation
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life (Cycles) | Actuator Length | Switch Function | Circuit | Actuator Type | Panel Cutout Diameter | Panel Cutout Shape | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating - AC | Termination Style | Illumination | Bushing Thread | Features | Mounting Type | Voltage Rating - DC | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 | 10.5 mm | On-On | SPDT | Standard Round | 6.5 mm | Circular | 85 °C | -30 °C | 125 V | PC Pin | Non-Illuminated | 1/4-40 | Flux Protection Sealed | Panel Mount | 30 V | 4 A 6 A |
 Nidec Components Corporation | 50000 | 10.5 mm | On-On | SPDT | Standard Round | 6.5 mm | Circular | 85 °C | -30 °C | PC Pin | Non-Illuminated | 1/4-40 | Flux Protection Sealed | Panel Mount | 20 V | 25 mA |
