305-024 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 24POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Card Thickness [Max]	Card Thickness [Min]	Card Type	Features	Mounting Type	Number of Positions	Contact Material	Color	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Rows [custom]	Contact Finish	Number of Positions/Bay/Row	Pitch	Pitch	Gender	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

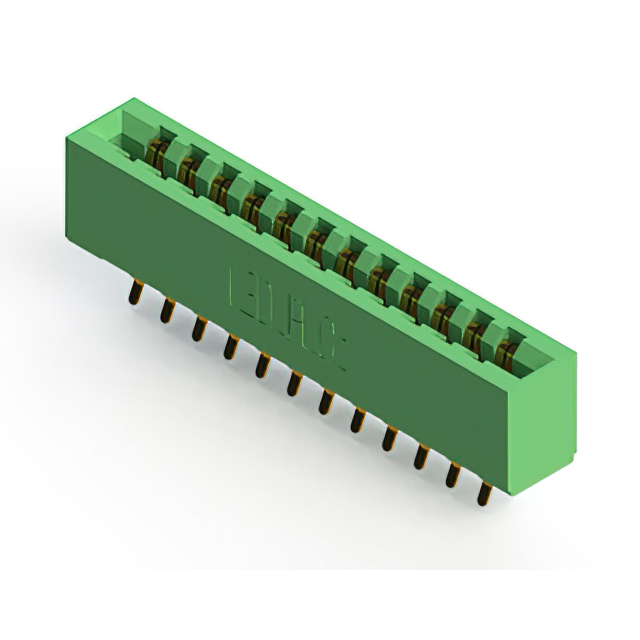

EDAC Inc. 305-024-556-201	2	Polyester Thermoplastic	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Card Extender	Board Edge Straddle Mount	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows

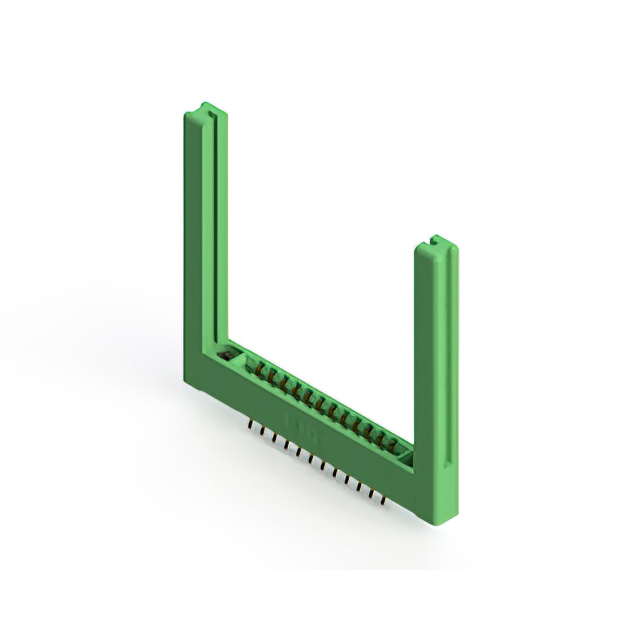

EDAC Inc. 305-024-556-258	2	Polyester Thermoplastic	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Card Extender Card Guides	Board Edge Straddle Mount	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening

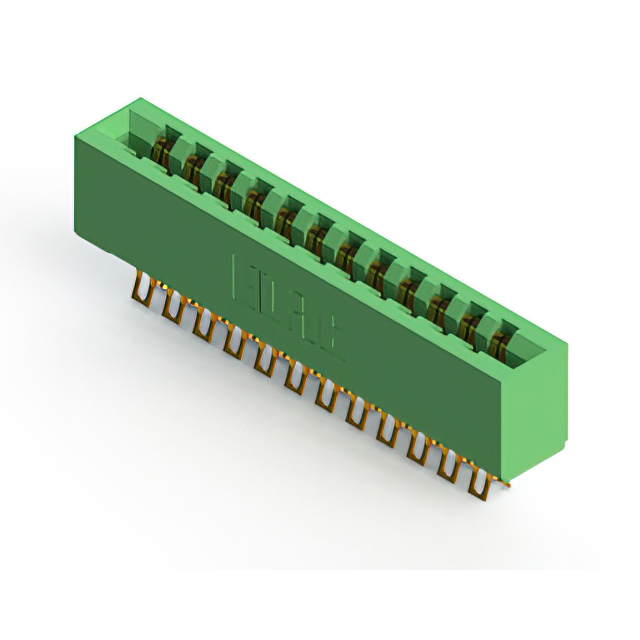

EDAC Inc. 305-024-555-501	2	Polyester Thermoplastic	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Card Extender	Board Edge Straddle Mount	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows
EDAC Inc. 305-024-500-202	2	Polyester Thermoplastic	-40 C	105 ░C	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge		Panel Mount	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

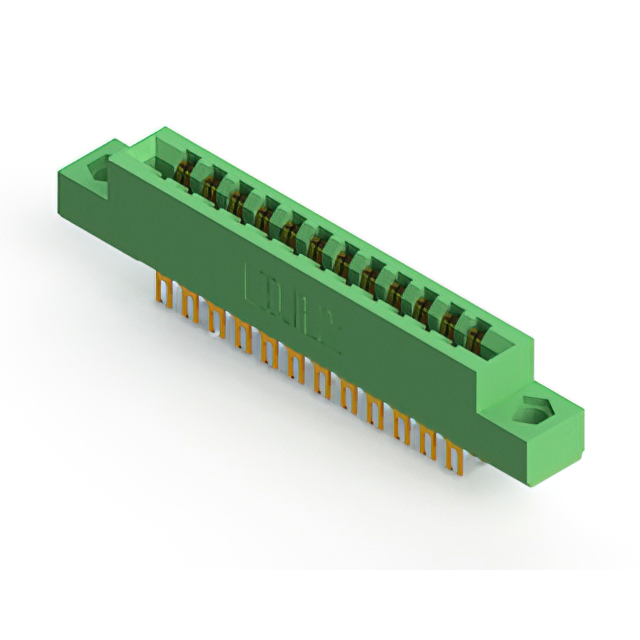

EDAC Inc. 305-024-500-504	2	Polyester Thermoplastic	-40 C	105 ░C	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge		Panel Mount	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "
EDAC Inc. 305-024-500-268	2	Polyester Thermoplastic	-40 C	105 ░C	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge		Panel Mount	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening

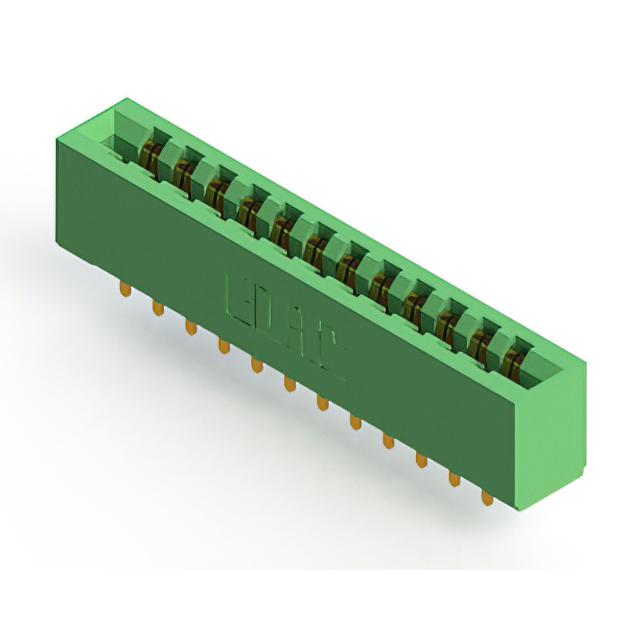

EDAC Inc. 305-024-521-501	2	Polyester Thermoplastic	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge		Through Hole	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows
EDAC Inc. 305-024-500-501	2	Polyester Thermoplastic	-40 C	105 ░C	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge		Free Hanging (In-Line)	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows

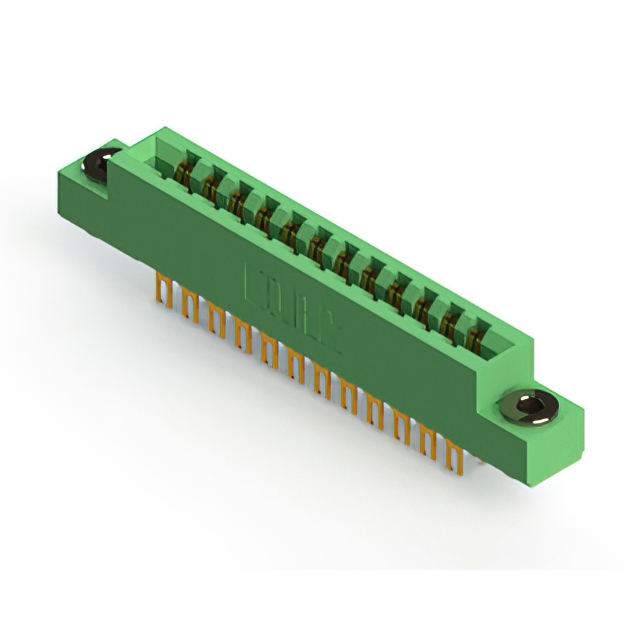

EDAC Inc. 305-024-500-503	2	Polyester Thermoplastic	-40 C	105 ░C	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge		Panel Mount	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows	Floating Bobbin Flush Mount	2.95 mm	0.116 "

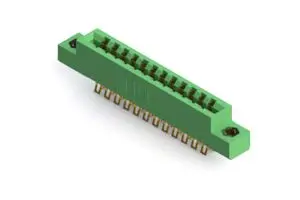

EDAC Inc. 305-024-555-207	2	Polyester Thermoplastic	-40 C	105 ░C	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Card Extender	Board Edge Straddle Mount	24	Copper Alloy	Green	0.25 Ám	10 Áin	Dual	2	Gold	12	3.96 mm	0.156 in	Female	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening
