10090769 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

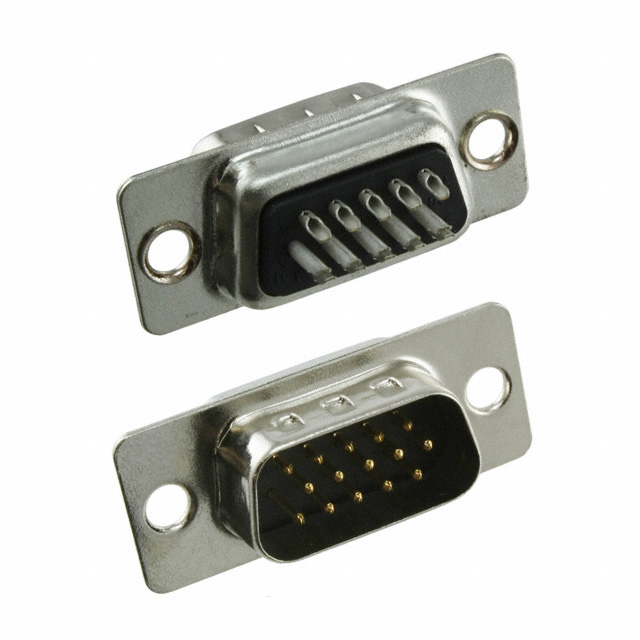

CONN D-SUB HD PLUG 15P SLDR CUP
| Part | Voltage Rating | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Number of Positions | Contact Type | Connector Type | Contact Finish Thickness | Material Flammability Rating | Connector Style | Current Rating (Amps) | Contact Finish | Number of Rows [custom] | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Copper Alloy | 24 AWG | 28 AWG | Free Hanging (In-Line) | Grounding Indents | (DE E) High Density | 1 | Nickel Plated Steel | 15 | Signal | Plug Male Pins | Flash | UL94 V-0 | D-Sub High Density | 2.5 A | Gold | 3 | Housing/Shell (Unthreaded) | ||
 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Copper Alloy | 24 AWG | 28 AWG | Free Hanging (In-Line) | Grounding Indents | Nickel Plated Steel | 44 | Signal | Plug Male Pins | Flash | UL94 V-0 | D-Sub High Density | 2.5 A | Gold | 3 | Housing/Shell (Unthreaded) | 3 | |||
 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Copper Alloy | 24 AWG | 28 AWG | Free Hanging (In-Line) | Grounding Indents | Nickel Plated Steel | 62 | Signal | Plug Male Pins | Flash | UL94 V-0 | D-Sub High Density | 2.5 A | Gold | 3 | Housing/Shell (Unthreaded) | 4 | C DC | ||
Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Copper Alloy | 24 AWG | 28 AWG | Free Hanging (In-Line) | Grounding Indents | Nickel Plated Steel | 78 | Signal | Plug Male Pins | Flash | UL94 V-0 | D-Sub High Density | 2.5 A | Gold | Housing/Shell (Unthreaded) |
