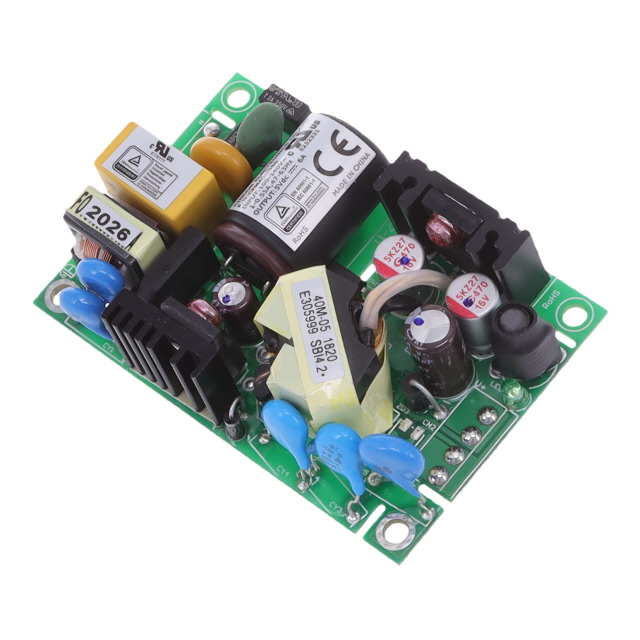

CFM40M050 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC CONVERTER 5V 30W
| Part | Load Regulation | Line Regulation | Applications | Current - Output (Max) [Max] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Approval Agency | Package / Case | Type | Standard Number | Features | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | ±1% | 0.5 % | ITE (Commercial) Medical | 6 A | 1 | 70 °C | -20 °C | Through Hole | 76.2 mm | 0.98 in | 3 " | 50.8 mm | 25 mm | 2 in | CE cURus FCC TUV | 6-DIP Module | Open Frame | 60601-1 60950-1 | Universal Input | 5 V | 264 VAC | 90 VAC | 80 % | 30 Watts |
