71600 Series

Catalog

CONN RCPT 34P IDC 28-30AWG GOLD

Part	Features	Connector Type	Wire Type	Row Spacing [x]	Row Spacing	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]	Color	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows
Amphenol ICC (FCI) 71600-334LF	Feed Through Strain Relief	Receptacle	Ribbon Cable	0.1 in	2.54 mm	34	30 AWG	27.5 AWG	Gray	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 71600-414LF	Feed Through	Receptacle	Ribbon Cable	0.1 in	2.54 mm	14	30 AWG	27.5 AWG	Gray	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 71600-434LF	Feed Through	Receptacle	Ribbon Cable	0.1 in	2.54 mm	34	30 AWG	27.5 AWG	Gray	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 71600-114LF	Feed Through Polarizing Key	Receptacle	Ribbon Cable	0.1 in	2.54 mm	14	30 AWG	27.5 AWG	Gray	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2

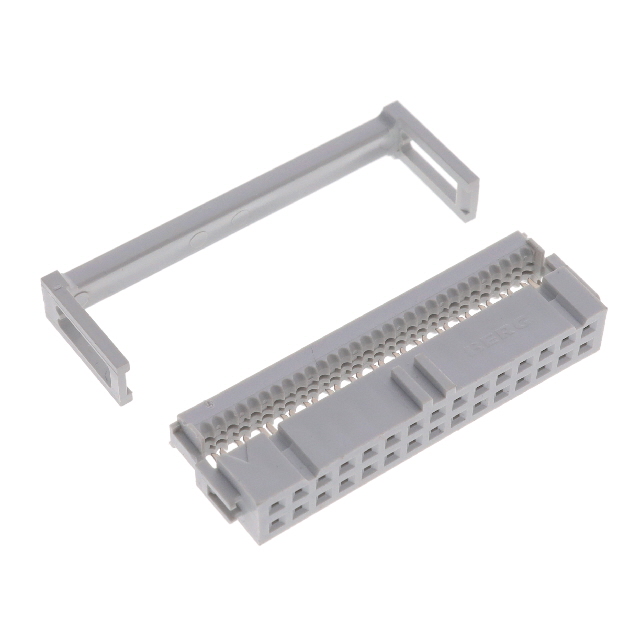

Amphenol ICC (FCI) 71600-230LF	Feed Through Polarizing Key Strain Relief	Receptacle	Ribbon Cable	0.1 in	2.54 mm	30	30 AWG	27.5 AWG	Gray	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 71600-264LF	Feed Through Polarizing Key Strain Relief	Receptacle	Ribbon Cable	0.1 in	2.54 mm	64	30 AWG	27.5 AWG	Gray	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 71600-010BLF	Feed Through Polarizing Key Strain Relief	Receptacle	Ribbon Cable	0.1 in	2.54 mm	10	30 AWG	27.5 AWG	Black	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 71600-218LF	Feed Through Polarizing Key Strain Relief	Receptacle	Ribbon Cable	0.1 in	2.54 mm	18	30 AWG	27.5 AWG	Gray	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2

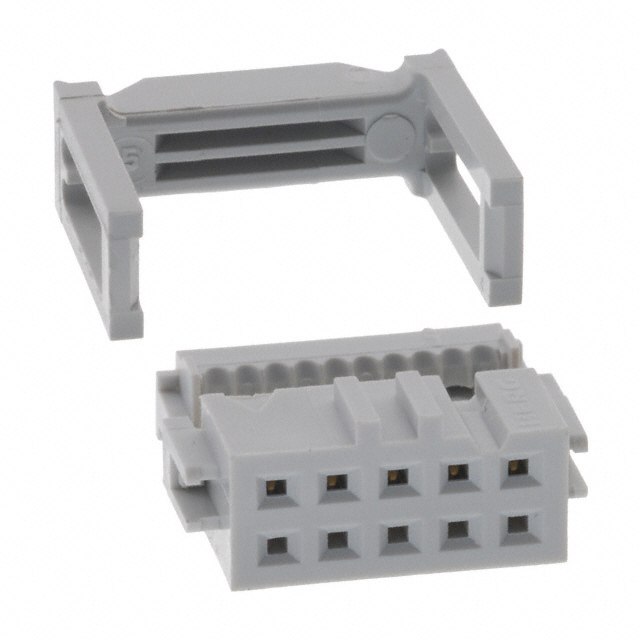

Amphenol ICC (FCI) 71600-010LF	Feed Through Polarizing Key Strain Relief	Receptacle	Ribbon Cable	0.1 in	2.54 mm	10	30 AWG	27.5 AWG	Gray	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 71600-340LF	Feed Through Strain Relief	Receptacle	Ribbon Cable	0.1 in	2.54 mm	40	30 AWG	27.5 AWG	Gray	Free Hanging (In-Line)	Female Socket	0.76 Ám	30 Áin	IDC	Gold	2.54 mm	0.1 in	2
