BPSX 2 Series

Catalog

AC/DC CONVERTER 8V 3.3V 2.1W

Part	Power (Watts)	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Efficiency	Type	Approval Agency	Mounting Type	Applications	Package / Case	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)
Cita Technologies, LLC. BPSX 2-08-33	2.1 W	160 mA	250 mA	85 °C	-40 C	Universal Input	265 VAC	85 VAC	2	70 %	Enclosed	CB cURus	Through Hole	ITE (Commercial)	7-DIP Module	8 V	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm
Cita Technologies, LLC. BPSX 2-14-00				85 °C	-40 C	Universal Input	265 VAC	85 VAC	1	70 %	Enclosed	CB cURus	Through Hole	ITE (Commercial)	7-DIP Module	14 V	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm

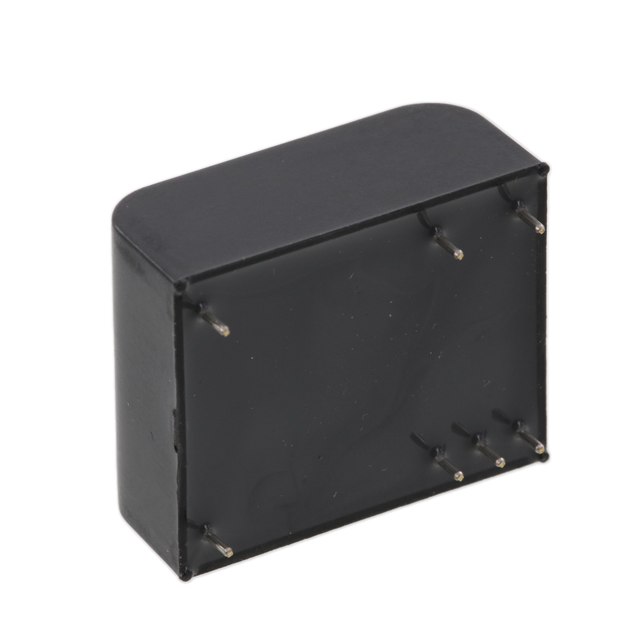

Cita Technologies, LLC. BPSX 2-08-50	3.3 W			85 °C	-40 C	Universal Input	265 VAC	85 VAC	2	70 %	Enclosed	CB cURus	Through Hole	ITE (Commercial)	7-DIP Module	8 V	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm	250 mA
Cita Technologies, LLC. BPSX 2-14-50	1.9 W	83 mA	143 mA	85 °C	-40 C	Universal Input	265 VAC	85 VAC	2	70 %	Enclosed	CB cURus	Through Hole	ITE (Commercial)	7-DIP Module	14 V	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm
Cita Technologies, LLC. BPSX 2-08-00				85 °C	-40 C	Universal Input	265 VAC	85 VAC	1	70 %	Enclosed	CB cURus	Through Hole	ITE (Commercial)	7-DIP Module	8 V	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm
Cita Technologies, LLC. BPSX 2-14-33	1.5 W	70 mA	143 mA	85 °C	-40 C	Universal Input	265 VAC	85 VAC	2	70 %	Enclosed	CB cURus	Through Hole	ITE (Commercial)	7-DIP Module	14 V	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm
