892-068 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 68POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Contact Type	Contact Material	Contact Finish	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]	Read Out	Card Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch	Pitch	Color	Number of Positions	Features
EDAC Inc. 892-068-542-203	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Wire Wrap	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	0.1 "	2.54 mm	Black	68 positions
EDAC Inc. 892-068-560-201	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Solder				0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	0.1 "	2.54 mm	Black	68 positions	Card Extender
EDAC Inc. 892-068-541-212	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Wire Wrap	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	0.1 "	2.54 mm	Black	68 positions
EDAC Inc. 892-068-542-208	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Wire Wrap		4-40 Flush Mount Threaded Insert Top Opening		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	0.1 "	2.54 mm	Black	68 positions

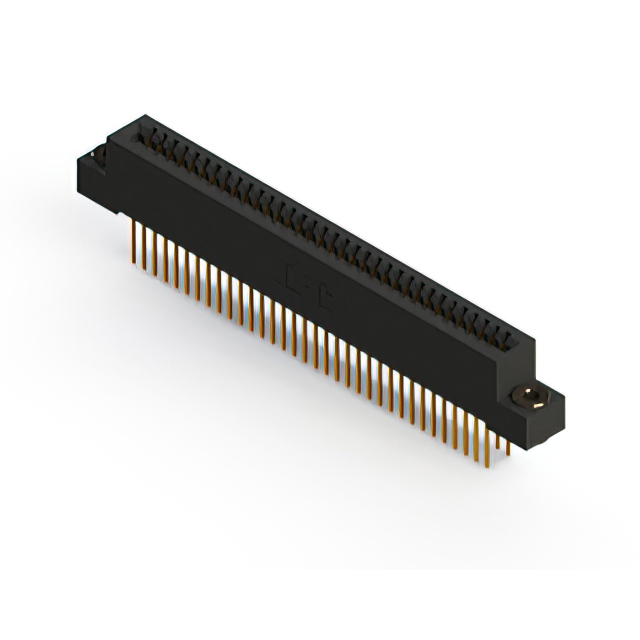

EDAC Inc. 892-068-541-203	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Wire Wrap	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	0.1 "	2.54 mm	Black	68 positions
EDAC Inc. 892-068-558-207	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Solder		Flush Mount M3 Threaded Insert Top Opening		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Right Angle Through Hole	0.1 "	2.54 mm	Black	68 positions
EDAC Inc. 892-068-540-207	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Wire Wrap		Flush Mount M3 Threaded Insert Top Opening		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	0.1 "	2.54 mm	Black	68 positions

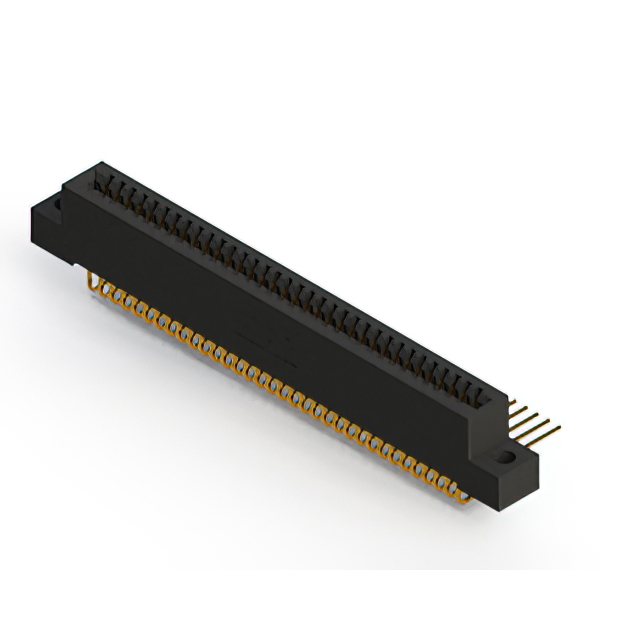

EDAC Inc. 892-068-559-204	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Solder	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Right Angle Through Hole	0.1 "	2.54 mm	Black	68 positions

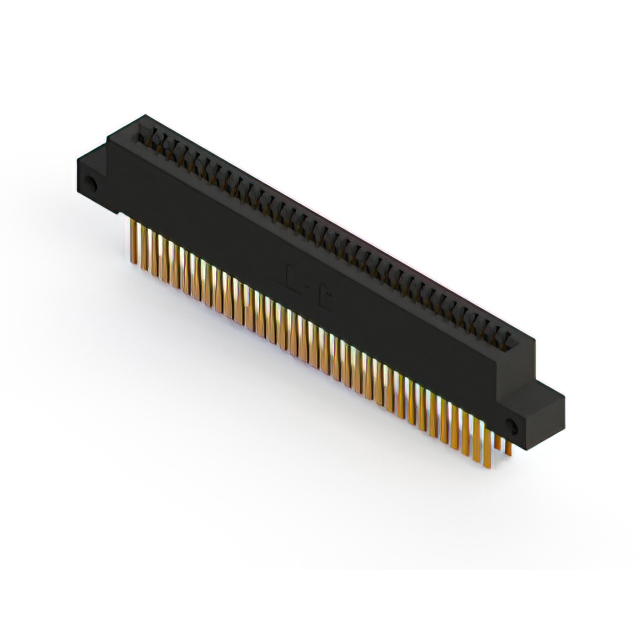

EDAC Inc. 892-068-544-212	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Wire Wrap	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Through Hole	0.1 "	2.54 mm	Black	68 positions
EDAC Inc. 892-068-556-208	Polyphenylene Sulfide (PPS)	2	34	Cantilever	Copper Alloy	Gold	2	125 °C	-40 C	Female	Solder		4-40 Flush Mount Threaded Insert Top Opening		0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	Board Edge Straddle Mount	0.1 "	2.54 mm	Black	68 positions	Card Extender
