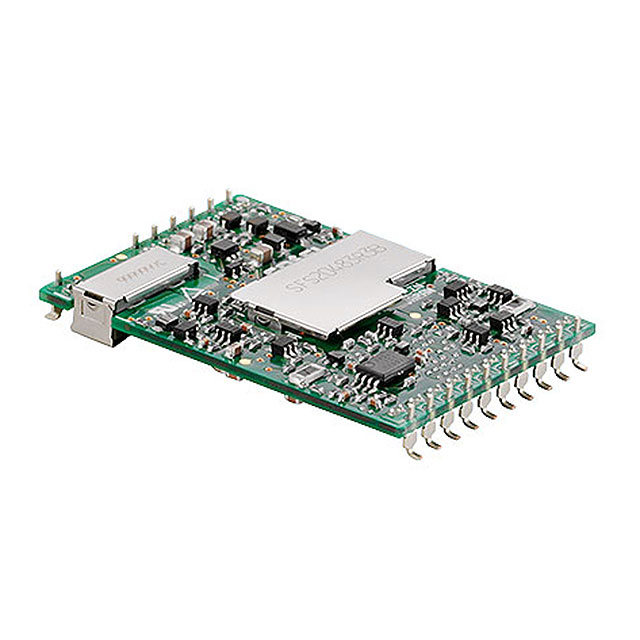

SFS20483 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 3.3V 20W
| Part | Voltage - Isolation | Voltage - Input (Max) [Max] | Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Applications | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Package / Case | Efficiency | Number of Outputs | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 1.5 kV | 76 V | Isolated Module | 3.3 V | 36 V | 6 A | ITE (Commercial) | Surface Mount | -40 °C | 85 °C | 20 W | 20-SMD Module 17 Leads | 90 % | 1 | 0.2 " | 38.7 mm | 1.52 in | 27.2 mm | 5 mm | 1.07 in |
