HEP-600 Series

Catalog

AC/DC CONVERTER 20V 560W

Part	Voltage - Isolation	Type	Features	Efficiency	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Approval Agency	Applications	Number of Outputs	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Battery Chemistry [custom]	Battery Cell Size	Voltage - Nominal	Number of Cells	Power - Max [Max]	Charge Current - Max [Max]	Termination Style

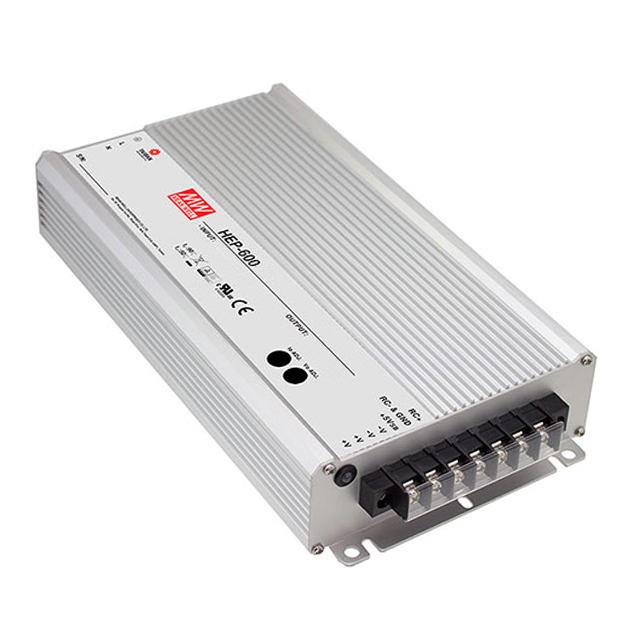

MEAN WELL USA Inc. HEP-600-20	3750 VDC	Enclosed	Adjustable Output PFC	95 %	Chassis Mount	90 VAC 127 VDC	305 VAC 431 VDC	560 W	28 A	1.91 in	11.02 in	48.5 mm	144 mm	5.67 in	280 mm	20 V	CB CE cURus TUV	ITE (Commercial)	1
MEAN WELL USA Inc. HEP-600-54	3750 VDC	Enclosed	Adjustable Output PFC	96 %	Chassis Mount	90 VAC 127 VDC	305 VAC 431 VDC	605 W	11.2 A	1.91 in	11.02 in	48.5 mm	144 mm	5.67 in	280 mm	54 V	CB CE cURus TUV	ITE (Commercial)	1
MEAN WELL USA Inc. HEP-600-24	3750 VDC	Enclosed	Adjustable Output PFC	95 %	Chassis Mount	90 VAC 127 VDC	305 VAC 431 VDC	600 W	25 A	1.91 in	11.02 in	48.5 mm	144 mm	5.67 in	280 mm	24 V	CB CE cURus TUV	ITE (Commercial)	1

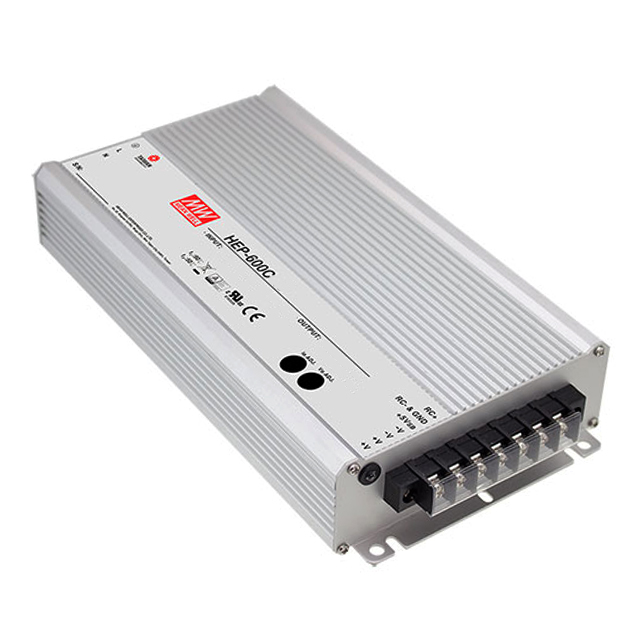

MEAN WELL USA Inc. HEP-600C-48		Enclosed	LED Indicator		Chassis Mount	90 VAC 127 VDC	305 VAC 431 VDC			1.91 in	11.02 in	48.5 mm	144 mm	5.67 in	280 mm		CB CE cURus TUV			3900 g	70 °C	-40 C	Lead Acid Lithium-Ion	48 V	57.6 V	1	600 W	10.5 A	Screw Terminal
MEAN WELL USA Inc. HEP-600C-24		Enclosed	LED Indicator		Chassis Mount	90 VAC 127 VDC	305 VAC 431 VDC			1.91 in	11.02 in	48.5 mm	144 mm	5.67 in	280 mm		CB CE cURus TUV			3900 g	70 °C	-40 C	Lead Acid Lithium-Ion	24 V	28.8 V	1	600 W	21 A	Screw Terminal
MEAN WELL USA Inc. HEP-600-15	3750 VDC	Enclosed	Adjustable Output PFC	94 %	Chassis Mount	90 VAC 127 VDC	305 VAC 431 VDC	540 W	36 A	1.91 in	11.02 in	48.5 mm	144 mm	5.67 in	280 mm	15 V	CB CE cURus TUV	ITE (Commercial)	1
