RT9081 Series

Catalog

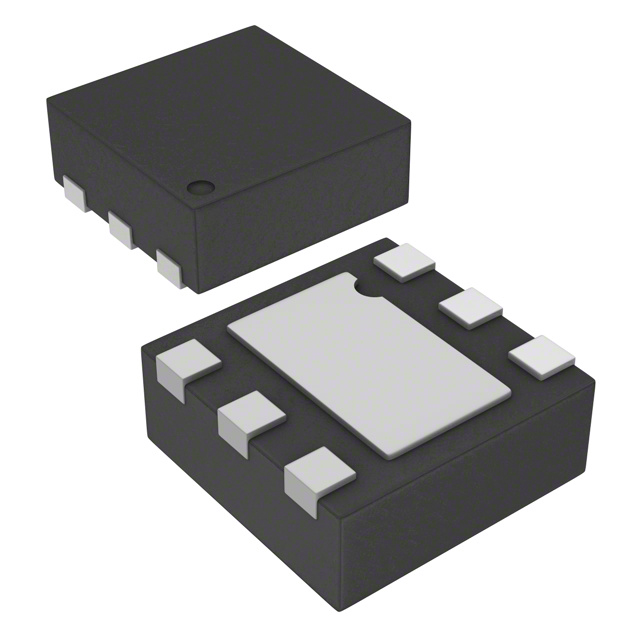

IC REG LINEAR 1.05V 500MA 6ZADFN

Part	Current - Output	Voltage Dropout (Max)	Voltage - Input (Max) [Max]	PSRR	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Control Features	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Supplier Device Package	Package / Case	Number of Regulators	Output Configuration
Richtek USA Inc. RT9081A-1KGQZA	500 mA	0.25 V	5.5 V	80 dB	Current Limit Thermal Shutdown UVLO	85 C	-40 ¯C	Surface Mount	Enable	110 µA	1.05 V	6-ZADFN (1.2x1.2)	6-XFDFN Exposed Pad	1	Positive
Richtek USA Inc. RT9081A-11GQZA	500 mA	0.25 V	5.5 V	80 dB	Current Limit Thermal Shutdown UVLO	85 C	-40 ¯C	Surface Mount	Enable	110 µA	1.1 V	6-ZADFN (1.2x1.2)	6-XFDFN Exposed Pad	1	Positive
Richtek USA Inc. RT9081A-15GQZA(2)	500 mA	0.25 V	5.5 V	80 dB	Current Limit Thermal Shutdown UVLO	85 C	-40 ¯C	Surface Mount	Enable	110 µA	1.5 V	6-ZADFN (1.2x1.2)	6-XFDFN Exposed Pad	1	Positive
Richtek USA Inc. RT9081A-18GQZA(2)	500 mA	0.25 V	5.5 V	80 dB	Current Limit Thermal Shutdown UVLO	85 C	-40 ¯C	Surface Mount	Enable	110 µA	1.8 V	6-ZADFN (1.2x1.2)	6-XFDFN Exposed Pad	1	Positive
Richtek USA Inc. RT9081A-12GQZA	500 mA	0.25 V	5.5 V	80 dB	Current Limit Thermal Shutdown UVLO	85 C	-40 ¯C	Surface Mount	Enable	110 µA	1.2 V	6-ZADFN (1.2x1.2)	6-XFDFN Exposed Pad	1	Positive
Richtek USA Inc. RT9081A-1BGQZA(2)	500 mA	0.25 V	5.5 V	80 dB	Current Limit Thermal Shutdown UVLO	85 C	-40 ¯C	Surface Mount	Enable	110 µA	1.25 V	6-ZADFN (1.2x1.2)	6-XFDFN Exposed Pad	1	Positive
