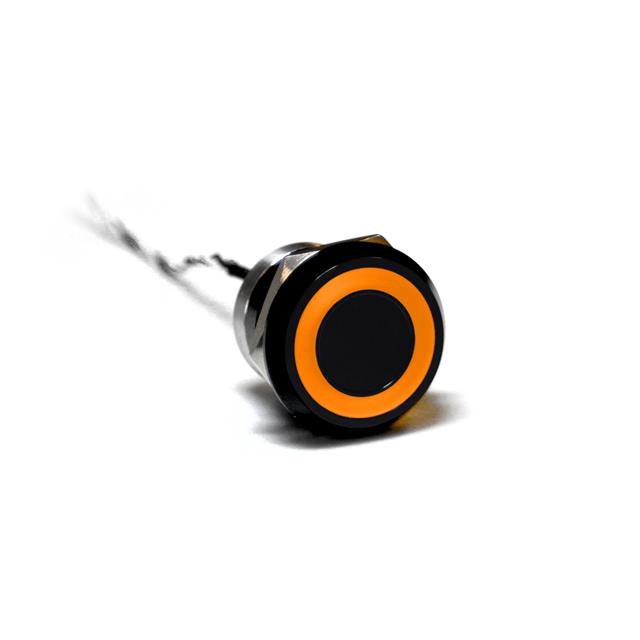

MC25MOB Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
SWITCH CAPACITIVE DPST OFF-MOM
| Part | Electrical Life | Mechanical Life | Circuit | Type | Voltage Rating - DC | Illumination Voltage (Nominal) | Color - Actuator/Cap | Illumination Type, Color | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Type | Ingress Protection | Termination Style | Switch Function | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 50 000 000 | 50000000 Cycles | SPST-NO | Capacitive Illuminated | 24 V | 12 VDC | Black | Green LED | 25.2 mm | 500 mA | Button Flush Round | IP68 IP69K | Wire Leads | Off-Mom | Panel Mount Front | 55 °C | -25 °C |
 BULGIN LIMITED | 50 000 000 | 50000000 Cycles | SPST-NO | Capacitive Illuminated | 24 V | 12 VDC | Black | Amber LED | 25.2 mm | 500 mA | Button Flush Round | IP68 IP69K | Wire Leads | Off-Mom | Panel Mount Front | 55 °C | -25 °C |
