PTVS5V0S1UTR Series

High-temperature 400 W Transient Voltage Suppressor

Manufacturer: Freescale Semiconductor - NXP

Catalog

High-temperature 400 W Transient Voltage Suppressor

Part	Type	Unidirectional Channels [custom]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp	Mounting Type	Grade	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Qualification	Supplier Device Package	Applications	Capacitance @ Frequency
Freescale Semiconductor - NXP PTVS5V0P1UP,115	Zener	1	SOD-128	-55 °C	150 °C	5 V	9.2 V	Surface Mount	Automotive	600 W	6.4 V	65.2 A	AEC-Q101

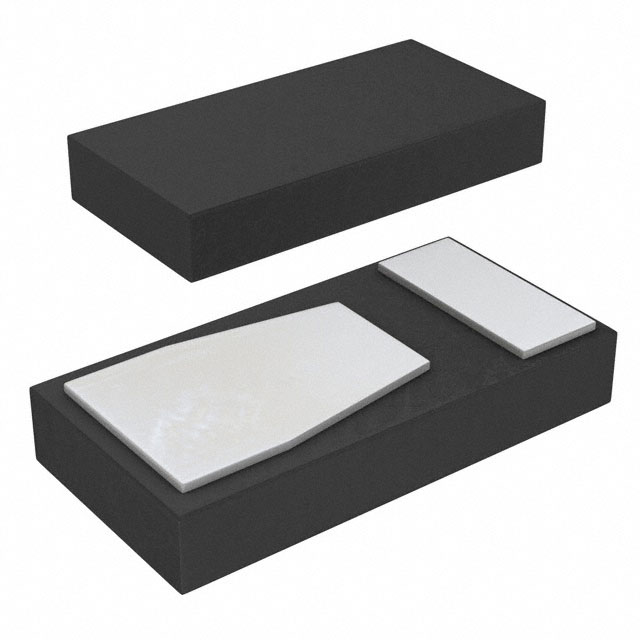

Freescale Semiconductor - NXP PTVS5V0Z1USKNYL	Zener	1	0603 (1608 Metric)	-40 °C	125 °C	5 V	12 V	Surface Mount		200 W	6.4 V	20 A		DSN1608-2	General Purpose	1200 pF
Freescale Semiconductor - NXP PTVS5V0P1UTP,115	Zener	1	SOD-128	-55 °C	185 °C	5 V	9.2 V	Surface Mount	Automotive	600 W	6.4 V	65.2 A	AEC-Q101
Freescale Semiconductor - NXP PTVS5V0S1UTR,115	Zener	1	SOD-123W	-55 °C	185 °C	5 V	9.2 V	Surface Mount	Automotive	400 W	6.4 V	43.5 A	AEC-Q101	SOD-123W
Freescale Semiconductor - NXP PTVS5V0S1UR,115	Zener	1	SOD-123W	-55 °C	150 °C	5 V	9.2 V	Surface Mount	Automotive	400 W	6.4 V	43.5 A	AEC-Q101	SOD-123W
Freescale Semiconductor - NXP PTVS5V0Z1USKPYL	Zener	1	0603 (1608 Metric)	-40 °C	125 °C	5 V	12 V	Surface Mount		200 W	6.4 V	20 A		DSN1608-2	General Purpose	1200 pF
Freescale Semiconductor - NXP PTVS5V0Z1USKYL	Zener	1	0603 (1608 Metric)	-40 °C	125 °C	5 V	12 V	Surface Mount		200 W	6.4 V	20 A		DSN1608-2	General Purpose	1200 pF

Catalog

High-temperature 400 W Transient Voltage Suppressor

Description

400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
