E5C2-R20 Series

Catalog

CONTROL TEMP RELAY OUT 100-240V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Mounting Type	Display Type	Ingress Protection	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Range [Max]	Input Range [Min]	Type	Features	Control Method	Output Type	Weight [custom]	Weight [custom]

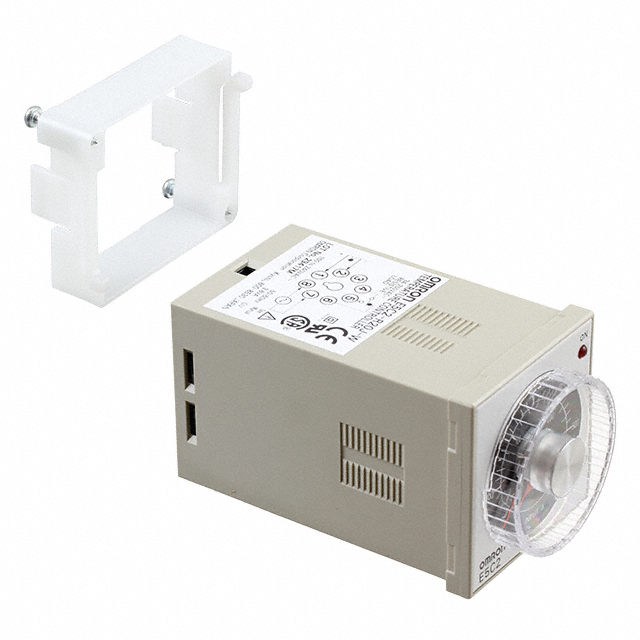

Omron Automation and Safety E5C2-R20JW AC100240 32572	55 °C	-10 °C	0.441 lb	200.03 g	Panel Mount	Analog Dial	IP40	Plug In	45 mm	45 mm	240 VAC	100 VAC	300 °C	0 °C	Temperature Controller (Type J)	Sensor Fault Detection	On/Off	Relay

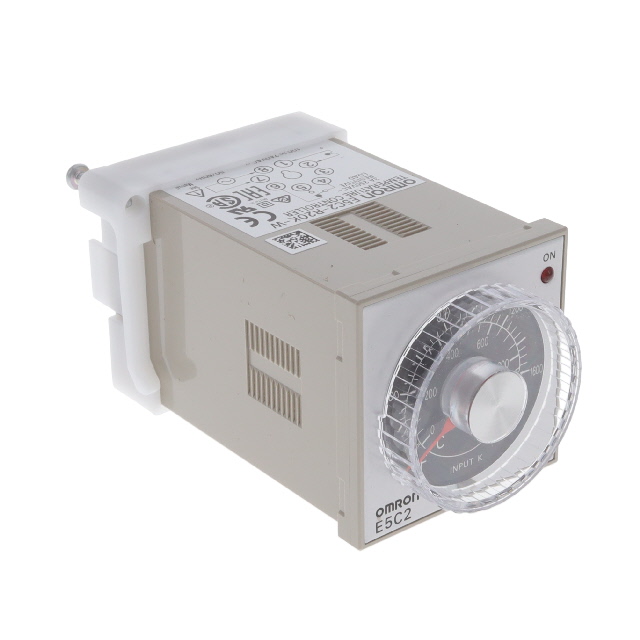

Omron Automation and Safety E5C2-R20KW AC100240 321832	55 °C	-10 °C	0.441 lb	200.03 g	Panel Mount	Analog Dial	IP40	Plug In	45 mm	45 mm	240 VAC	100 VAC	1000 °C	0 °C	Temperature Controller (Type K)	Sensor Fault Detection	On/Off	Relay
Omron Automation and Safety E5C2-R20P-D-W AC100-240 32-392	55 °C	-10 °C			Panel Mount Socketable	Analog Dial	IP40	Plug In	45 mm	45 mm	240 VAC	100 VAC			Temperature Controller (RTD)	Heater Fault Detection	On/Off	Relay	100.24 g	0.221 lb
